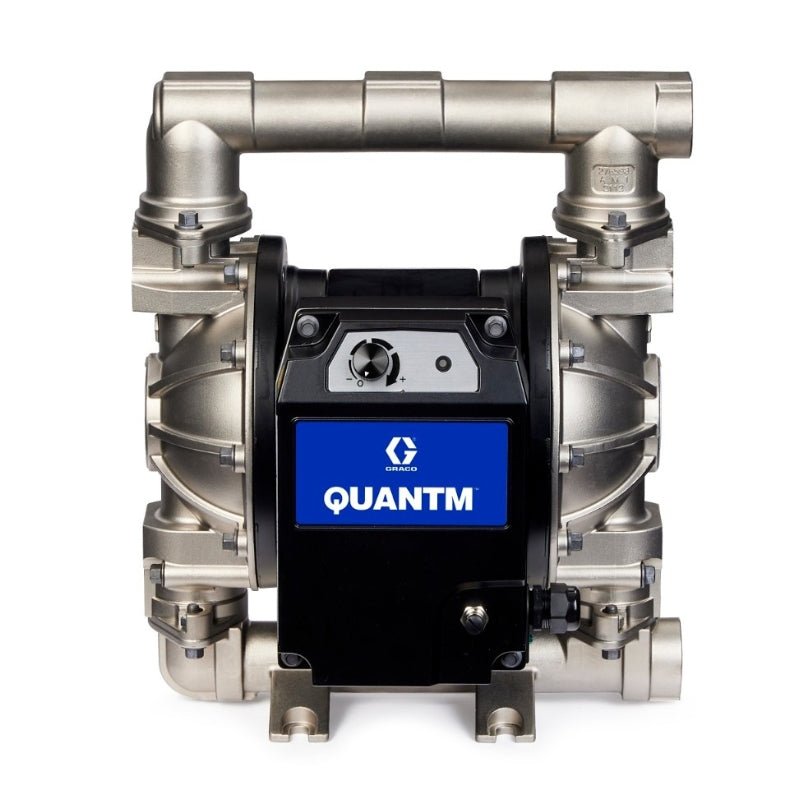

GRACO QUANTM i80 1.5" BSPT Stainless Steel Electric Diaphragm Pump
- Found a better deal? Message us to price match.
- Spread the cost with LeaseGO. .
Dispatch options
GO stock or Melbourne supplier stock
Australia-wide delivery
Delivery to your job site
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
QUANTM isn’t just another electric pump: it’s a game-changer.
The QUANTM i80 with 1 1/2" (38.1 mm) port is Graco’s revolutionary new electric-operated double diaphragm (EODD) pump. With a lighter weight and smaller footprint than other electric options, it provides the ideal solution for factories or manufacturing plants focused on meeting sustainability goals by reducing their largest variable cost: energy.
Features
Features
- Revolutionary Design
- Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
- Patented FluxCore drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
- Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
- Quiet operation reduces plant noise and improves employee safety and health
- Smart pump control provides more accurate flow set points and built-in I/O
- FluxCore Motor
- Powder-coated aluminum FluxCore drive
- 240 VAC 1? motor with 15 ft cord and IEC 60320-C20 plug
- Non-hazardous
Specifications
| TYPE | Electric Diaphragm Pump |
| APPLICATION | Chemical Processing, Paints and Coatings, Waste Water, General Fluid Transfer |
| BALL MATERIAL | PTFE |
| CENTER SECTION MATERIAL | Aluminum |
| DIAPHRAGM MATERIAL | PTFE/Santoprene 2-Piece |
| FLUID INLET SIZE (IN) | 1.5 |
| FLUID INLET SIZE (MM) | 38.099999999999994 |
| FLUID INLET THREAD GENDER | Female |
| FLUID INLET THREAD TYPE | BSPT |
| FLUID OUTLET SIZE (IN) | 1.5 |
| FLUID OUTLET SIZE (MM) | 38.099999999999994 |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | BSPT |
| FLUID SECTION MATERIAL | Stainless Steel |
| MANIFOLD CONFIGURATION | End Port |
| MANIFOLD O-RING MATERIAL | PTFE |
| MAXIMUM AMPERAGE (A) | 15 |
| MAXIMUM FLOW RATE (GPM) | 80 |
| MAXIMUM FLOW RATE (L/MIN) | 303 |
| MAXIMUM FLUID PRESSURE (BAR) | 6.9 |
| MAXIMUM FLUID PRESSURE (KPA) | 690 |
| MAXIMUM FLUID PRESSURE (PSI) | 100 |
| MAXIMUM SOLID SIZE (IN) | 0.19 |
| MAXIMUM SOLID SIZE (MM) | 4.8 |
| MODEL | QUANTM |
| MOTOR TYPE | FluxCore Drive |
| OVERALL HEIGHT (IN) | 18.97 |
| SEAT MATERIAL | 316 Stainless Steel |
| SERIES | i80 |
| VOLTAGE (V AC) | 240 VAC 1 |
| WEIGHT (LB) | 112 |
| WETTED MATERIAL | 316 Stainless Steel, PTFE, PTFE/Santoprene 2-Piece |
| CONNECTION TYPE | BSPT |
| MAXIMUM AMBIENT TEMPERATURE (°F) | 104 |
| MAXIMUM FLUID OPERATING TEMPERATURE (°C) | 82 |
| MINIMUM FLUID OPERATING TEMPERATURE (°C) | -40 |
| MAXIMUM FLUID OPERATING TEMPERATURE (°F) | 180 |
| MINIMUM FLUID OPERATING TEMPERATURE (°F) | -40 |
| FLUID SECTION | Stainless Steel, End Port, BSPT |
| MAXIMUM AMBIENT TEMPERATURE (°C) | 40 |
| CORD LENGTH (M) | 4.57 |
| HAZARDOUS_LOCATION_APPROVAL | ATEX [TE80-0188] |
| CORD LENGTH (FT) | 15 |
