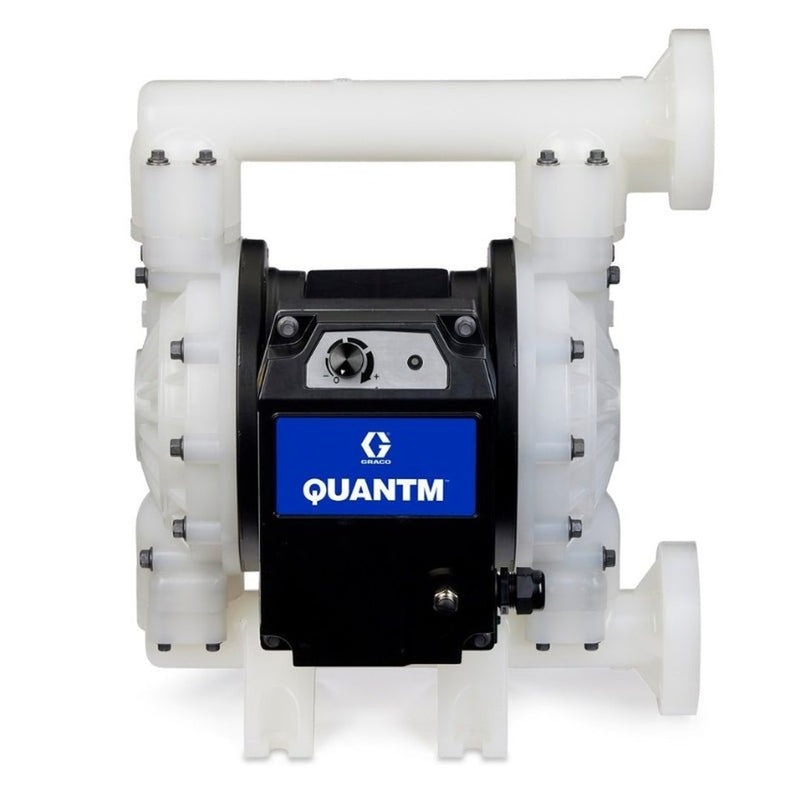

GRACO QUANTM i80 1.5" End Flange Polypropylene Electric Diaphragm Pump 380-480V 3 Phase
- Found a better deal? Message us to price match.
- Spread the cost with LeaseGO. .
Dispatch options
GO stock or Melbourne supplier stock
Australia-wide delivery
Delivery to your job site
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
QUANTM isn’t just another electric pump: it’s a game-changer.
The QUANTM i80 with 1 1/2" (38.1 mm) port is Graco’s revolutionary new electric-operated double diaphragm (EODD) pump. With a lighter weight and smaller footprint than other electric options, it provides the ideal solution for factories or manufacturing plants focused on meeting sustainability goals by reducing their largest variable cost: energy.
Features
Features
- Revolutionary Design
- Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
- Patented FluxCore drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
- Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
- Quiet operation reduces plant noise and improves employee safety and health
- Smart pump control provides more accurate flow set points and built-in I/O
- FluxCore Motor
- Powder-coated aluminum FluxCore drive
- 380 to 480 VAC three phase motor with 4.57 m (15 ft) cord
- Non-hazardous
Specifications
| TYPE | Electric Diaphragm Pump |
| APPLICATION | Chemical Processing, Paints and Coatings, Waste Water, General Fluid Transfer |
| MODEL | QUANTM |
| POWER SOURCE | Electric |
| RATED VOLTAGE | 380 to 480 VAC |
| PHASE | 3 |
| FREQUENCY | 50/60 Hz |
| MAXIMUM AMPERAGE (A) | 5.3 |
| CORD LENGTH (M) | 4.57 |
| FLUID SECTION MATERIAL | Polypropylene |
| CENTER SECTION MATERIAL | Aluminium |
| SEAT MATERIAL | Polypropylene |
| BALL MATERIAL | Santoprene |
| DIAPHRAGM MATERIAL | Santoprene |
| MANIFOLD O-RING MATERIAL | PTFE |
| MANIFOLD CONFIGURATION | End Flange |
| FLUID INLET SIZE (IN) | 1.5 |
| FLUID INLET SIZE (MM) | 38.1 |
| FLUID OUTLET SIZE (MM) | 38.1 |
| MAXIMUM FLOW RATE (L/MIN) | 303 |
| MAXIMUM FLUID PRESSURE (PSI) | 100 |
| MAXIMUM FLUID PRESSURE (BAR) | 6.9 |
| MAXIMUM SOLID SIZE (MM) | 4.8 |
| MAXIMUM FLUID TEMPERATURE (°C) | 66 |
| MINIMUM FLUID TEMPERATURE (°C) | 0 |
| SHIPPING WEIGHT (KG) | 49.44 |
| CONFIGURATION CODE | QTD-PPFE8PPSPSPPTP200 |
