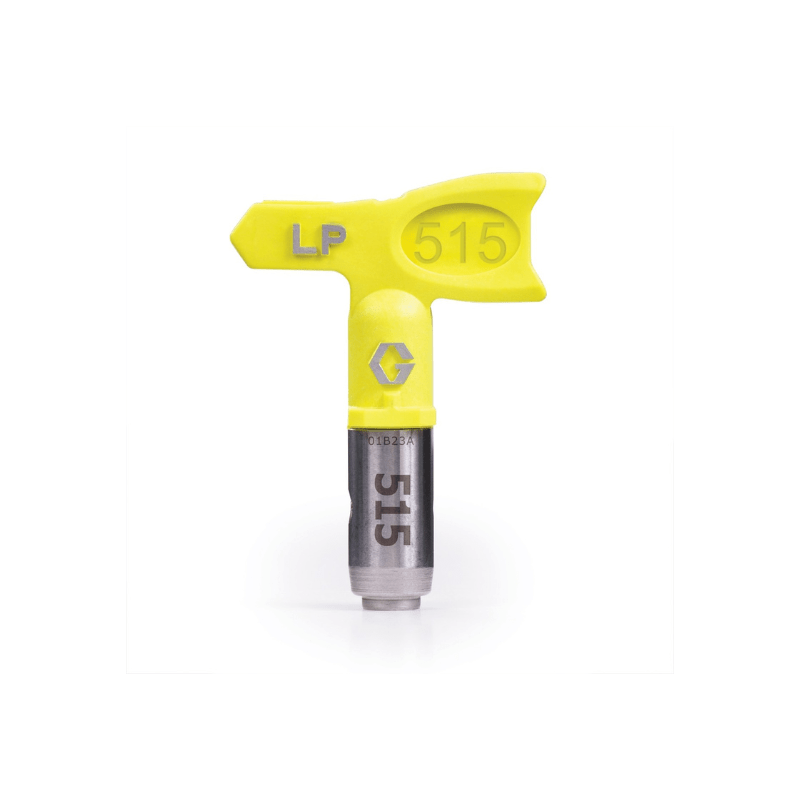

The Graco RAC X Low Pressure SwitchTip lets you spray at up to 50% lower pressure while still delivering a clean, fully atomised finish. The patented RAC X tip with SmartTip Technology uses exclusive internal geometry to reduce the pressure needed to break up paints, stains and other materials, which means less overspray, easier pattern overlap and reduced prep and cleanup. Spraying at lower pressure also doubles tip life.
Reverse the SwitchTip to clear a clog and keep working, then switch it back to spray. The range covers fan widths from 6 to 16 inches and orifice sizes from 0.013 to 0.031 inches to suit small detail work through to large walls and ceilings. New Neon Yellow tips are replacing the original green tips in Australia, with no performance or quality difference between the two colours.
Features
Low Pressure: SmartTip Technology sprays at up to 50% lower pressure while holding a clean, fully atomised finish.
RAC X Tip: The patented Graco RAC X tip uses exclusive internal geometry for a fine finish at low airless pressure.
Reversible: Reverse the SwitchTip to clear clogs, then switch back to keep spraying.
Less Overspray: Lower spraying pressure reduces overspray and makes pattern overlap easier.
Longer Life: Spraying at half pressure delivers up to twice the tip life.
Faster Turnaround: Reduces prep and cleanup time by putting the paint where you want it.
SmartControl: Works with the Graco SmartControl pressure management system for a steady spray fan at all pressures.
Included accessories
Specifications
| Fan Width Inch (mm) | 0.013 | 0.015 | 0.017 | 0.019 | 0.021 | 0.023 | 0.025 | 0.027 | 0.029 | 0.031 |
|---|---|---|---|---|---|---|---|---|---|---|
| 6-8 (152-203) | 313 | 315 | - | - | - | - | - | - | - | - |
| 8-10 (203-254) | - | 415 | 417 | 419 | 421 | 423 | 425 | - | - | - |
| 10-12 (254-305) | - | 515 | 517 | 519 | 521 | 523 | 525 | 527 | - | - |
| 12-14 (305-356) | - | - | 617 | 619 | 621 | 623 | 625 | 627 | 629 | 631 |
| 14-16 (356-406) | - | - | - | - | - | 723 | 725 | - | 729 | 731 |
