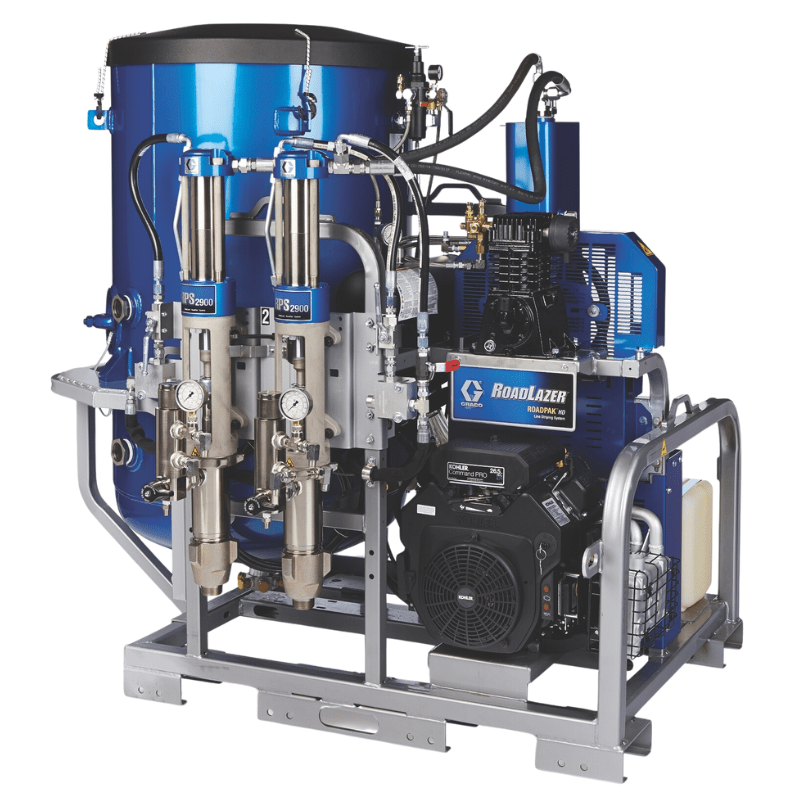

GRACO RoadLazer RoadPak HD System
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The RoadPak HD is a high-productivity striping machine with double the output, the ability to stripe with 5 or more guns and many other upgrades that will increase your productivity and line accuracy.
Configurations
OPTION HD1: 25M706 2 Pump RoadPak HD (1350 lb. Bead Tank, 10gpm), 24G626 Single Hitch Mounting Frame, 24G627 RoadPak Slide in Mounting Frame, 25M710 2 Pump RoadPak HD Gun Arm, 25M711 RoadLazer/RoadPak Control, 24G634 RoadPak Pointer System, 25M713 Winch Kit
OPTION HD2: 25M706 2 Pump RoadPak HD (1350 lb. Bead Tank, 10gpm), 24G626 Single Hitch Mounting Frame, 24G627 RoadPak Slide in Mounting Frame, 25M710 2 Pump RoadPak HD Gun Arm, 25M711 RoadLazer/RoadPak Control, 24G633 RoadView Camera System, 24G634 RoadPak Pointer System, 25M713 Winch Kit
OPTION HD3: 25M706 2 Pump RoadPak HD (1350 lb. Bead Tank, 10gpm), 24G626 Single Hitch Mounting Frame, 24G627 RoadPak Slide in Mounting Frame, 25M710 2 Pump RoadPak HD Gun Arm, 25M711 RoadLazer/RoadPak Control, 24G634 RoadPak Pointer System, 25M712 Steerable Carriage, 25M713 Winch Kit, 25M716 Seat Kit
OPTION HD4: 25M706 2 Pump RoadPak HD (1350 lb. Bead Tank, 10gpm), 24G626 Single Hitch Mounting Frame, 24G627 RoadPak Slide in Mounting Frame, 25M710 2 Pump RoadPak HD Gun Arm, 25M711 RoadLazer/RoadPak Control, 24G633 RoadView Camera System, 24G634 RoadPak Pointer System, 25M712 Steerable Carriage, 25M713 Winch Kit, 25M716 Seat Kit
Features
Features
RoadPak HD 2-Pump System
Higher performance with double the output up to 37.9 LPM (10 GPM)
Heavy-Duty RPS 2900 Hydraulic System
- No-stall design provides unmatched productivity
- Maximum pressure of 200 bar
Proven Displacement Pump System
- Delivering outstanding results in pumping paint for decades
- Prime valve allows you to recirculate paint keeping it mixed and ready to go
Bead Tank System
- ASME rated and can drop at a rate of up to 18 kg per minute
- Easier material loading with large fill spout opening
RoadPak HD 2-Pump/3-Gun Arm
Fast set-up, high output
5+ Gun capacity: 5 spray Guns and 5 bead Guns
Easy Mark Gun Adjustment System
- Simple guide mark system
- Easy gun on/off
- Perfect gun alignment every time
Advanced Controller
- Less Setup Time
- Built-in advanced patterns for quick recall
- Pattern preview gives a quick visual of colors and patterns selected
- Export capabilities allows for “proof of job”
Heavy-Duty Modular Frame System
- Heavy-duty steel frame is built to last
- Simple to add the options you want in minutes - optimizing your striping system
- Small frame size allows it to fit almost anywhere - from the back of a pickup or flatbed truck to the bed of a utility vehicle
Heavy-Duty Modular Frame System
- Heavy-duty steel frame is built to last
- Simple to add the options you want in minutes - optimizing your striping system
- Small frame size allows it to fit almost anywhere - from the back of a pickup or flatbed truck to the bed of a utility vehicle
Heavy-Duty Compressor
- 100 psi (6.9 bar) at 13.1 cfm (0.37 m³/min)
- Accumulation tank supports up to 5 airless paint guns and 5 bead guns
Kohler® Power
- 19 HP (14.2 kW) Kohler engine
- Over 15 years of reliable experience
Specifications
| Bead System | Pressurized Bead System |
|---|---|
| Engine Brand | Kohler |
| Includes | RoadPak Advanced Controller, RoadPak HD 2, Simple Guide System, Gun Lift Winch Kit |
| Maximum Flow Rate (GPM) | 10 |
| Maximum Flow Rate (L/min) | 37.8 |
| Maximum Sound Pressure Level (dB(A)) | 95.2 |
| Maximum Working Pressure (bar) | 200 |
| Maximum Working Pressure (kPa) | 2000 |
| Maximum Working Pressure (psi) | 2900 |
| Model | RoadLazer |
| Number of Guns | 3 |
| Number of Pumps | 2 |
| Power Rating (HP) | 26.5 |
| Power Rating (kW) | 19.8 |
| Series | RoadPak HD |
| Type | Truck-Mounted Line Striper |
| Bead Tank Size (lb) | 1350 |
| Mount Type | Slide-In Mounting Frame |
Warranty
Manuals
- Graco Manual Operation RoadLazer RoadPak RoadPak HD Line Striping System 3A5384EN-C
- Graco Manual Repair RoadLazer RoadPak RoadPak HD Line Striping System 3A5385EN-B
- Graco Manual Parts RoadLazer RoadPak RoadPak HD Line Striping System 3A5386EN-C
- Graco Manual Operation Programmable Skipline Controller for RoadLazer RoadPak Line Striping System 3A5387EN-B
- Graco Manual High Pressure Fluid Line Ball Valve 306861EN-ZAF
