Enquire For Price
Upgradeable—SD Preset meters are compatible with PULSE FC fluid control system
Large, Intuitive Display—high-contrast display for low and bright light conditions
Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue
Reliable—time-tested Graco engineering
Durable—Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
Long battery life—uses 4 AA easy-to-replace batteries
| COMPATIBLE MATERIAL | Oil, Antifreeze, ATF, Gear Oil |
| DISPENSE TYPE | Preset |
| DISPLAY TYPE | Electronic |
| EXTENSION TYPE | Flexible |
| FLUID INLET THREAD GENDER | Female |
| FLUID OUTLET THREAD GENDER | Female |
| INCLUDES | Nozzle, Flexible Extension |
| INLET SIZE (CM) | 1.91 |
| INLET SIZE (IN) | 3/4 |
| INLET SIZE (MM) | 19.05 |
| INLET THREAD TYPE | NPT |
| MAXIMUM FLOW RATE (GPM) | 18 |
| MAXIMUM FLOW RATE (L/MIN) | 68 |
| MAXIMUM OPERATING TEMPERATURE (°C) | 70 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 158 |
| MAXIMUM RECORDED DISPENSE | 9999 |
| MAXIMUM STORAGE TEMPERATURE (°F) | 158 |
| MAXIMUM STORAGE TEMPERATURE (°C) | 70 |
| MAXIMUM WORKING PRESSURE (PSI) | 1500 |
| MAXIMUM WORKING PRESSURE (KPA) | 10340 |
| MAXIMUM WORKING PRESSURE (BAR) | 103.4 |
| METER ACCURACY (%) | ±0.5 |
| OVERALL HEIGHT (CM) | 14.6 |
| OVERALL HEIGHT (IN) | 5.75 |
| OVERALL HEIGHT (MM) | 146 |
| OVERALL LENGTH (CM) | 33 |
| OVERALL LENGTH (IN) | 13 |
| OVERALL LENGTH (MM) | 330 |
| OVERALL WIDTH (CM) | 9.5 |
| OVERALL WIDTH (IN) | 3.75 |
| OVERALL WIDTH (MM) | 95 |
| METER TECHNOLOGY | Oval Gear |
| METERING GUN WEIGHT (LB) | 5.3 |
| METERING GUN WEIGHT (KG) | 2.4 |
| MINIMUM FLOW RATE (GPM) | 0.25 |
| MINIMUM FLOW RATE (L/MIN) | 0.9 |
| WETTED MATERIAL | Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS |
| WARRANTY | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
| UNIT OF MEASURE | Quart, Pint, Gallon, Liter |
| TRIGGER PROTECTION TYPE | Guard |
| TRIGGER LOCK | Locking |
| RECOMMENDED ENVIRONMENT | Indoor |
| OUTLET THREAD TYPE | Straight Thread O-Ring Boss |
| NOZZLE TYPE | Manual |
| MINIMUM OPERATING TEMPERATURE (°F) | 4 |
| MINIMUM OPERATING TEMPERATURE (°C) | -16 |
| TYPE | Electronic Metered Dispense Valve |
| VALVE TYPE | Metered |
| MAXIMUM WORKING PRESSURE (MPA) | 10.3 |
| PRODUCT TYPE | Meter |
| MODEL | SDP18 |

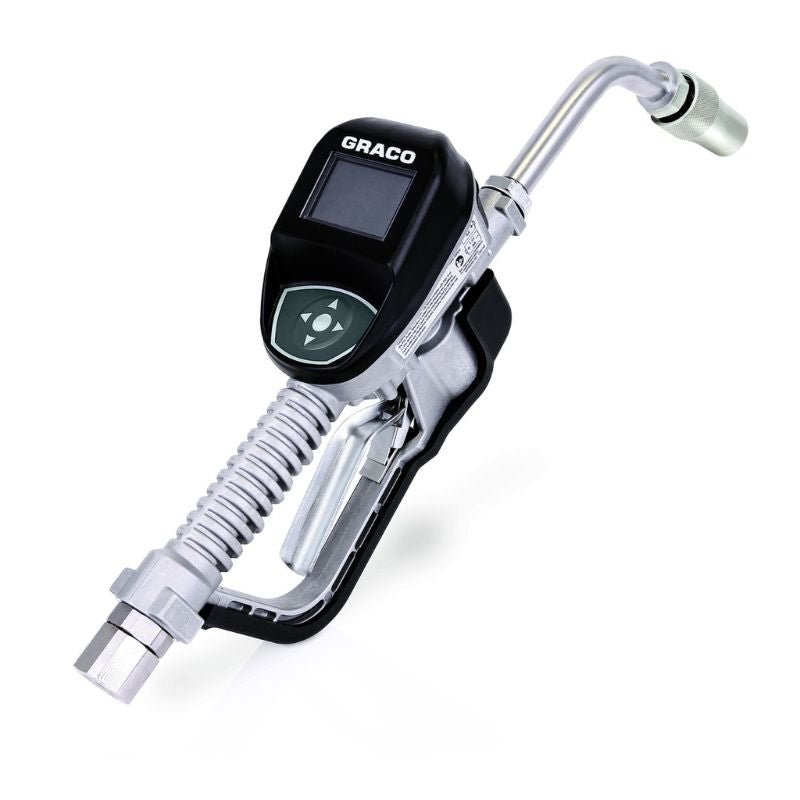

GRACO SD Series™ SDP18 Electronic Preset Oil/Antifreeze Dispense Meters
SKU: 26C360GRACO SD Series™ SDP18 Electronic Preset Oil/Antifreeze Dispense Meters
Other payment options
Couldn't load pickup availability
At a Glance
Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.
Upgradeable—SD Preset meters are compatible with PULSE FC fluid control system
Large, Intuitive Display—high-contrast display for low and bright light conditions
Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue
Reliable—time-tested Graco engineering
Durable—Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
Long battery life—uses 4 AA easy-to-replace batteries
| COMPATIBLE MATERIAL | Oil, Antifreeze, ATF, Gear Oil |
| DISPENSE TYPE | Preset |
| DISPLAY TYPE | Electronic |
| EXTENSION TYPE | Flexible |
| FLUID INLET THREAD GENDER | Female |
| FLUID OUTLET THREAD GENDER | Female |
| INCLUDES | Nozzle, Flexible Extension |
| INLET SIZE (CM) | 1.91 |
| INLET SIZE (IN) | 3/4 |
| INLET SIZE (MM) | 19.05 |
| INLET THREAD TYPE | NPT |
| MAXIMUM FLOW RATE (GPM) | 18 |
| MAXIMUM FLOW RATE (L/MIN) | 68 |
| MAXIMUM OPERATING TEMPERATURE (°C) | 70 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 158 |
| MAXIMUM RECORDED DISPENSE | 9999 |
| MAXIMUM STORAGE TEMPERATURE (°F) | 158 |
| MAXIMUM STORAGE TEMPERATURE (°C) | 70 |
| MAXIMUM WORKING PRESSURE (PSI) | 1500 |
| MAXIMUM WORKING PRESSURE (KPA) | 10340 |
| MAXIMUM WORKING PRESSURE (BAR) | 103.4 |
| METER ACCURACY (%) | ±0.5 |
| OVERALL HEIGHT (CM) | 14.6 |
| OVERALL HEIGHT (IN) | 5.75 |
| OVERALL HEIGHT (MM) | 146 |
| OVERALL LENGTH (CM) | 33 |
| OVERALL LENGTH (IN) | 13 |
| OVERALL LENGTH (MM) | 330 |
| OVERALL WIDTH (CM) | 9.5 |
| OVERALL WIDTH (IN) | 3.75 |
| OVERALL WIDTH (MM) | 95 |
| METER TECHNOLOGY | Oval Gear |
| METERING GUN WEIGHT (LB) | 5.3 |
| METERING GUN WEIGHT (KG) | 2.4 |
| MINIMUM FLOW RATE (GPM) | 0.25 |
| MINIMUM FLOW RATE (L/MIN) | 0.9 |
| WETTED MATERIAL | Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS |
| WARRANTY | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
| UNIT OF MEASURE | Quart, Pint, Gallon, Liter |
| TRIGGER PROTECTION TYPE | Guard |
| TRIGGER LOCK | Locking |
| RECOMMENDED ENVIRONMENT | Indoor |
| OUTLET THREAD TYPE | Straight Thread O-Ring Boss |
| NOZZLE TYPE | Manual |
| MINIMUM OPERATING TEMPERATURE (°F) | 4 |
| MINIMUM OPERATING TEMPERATURE (°C) | -16 |
| TYPE | Electronic Metered Dispense Valve |
| VALVE TYPE | Metered |
| MAXIMUM WORKING PRESSURE (MPA) | 10.3 |
| PRODUCT TYPE | Meter |
| MODEL | SDP18 |
