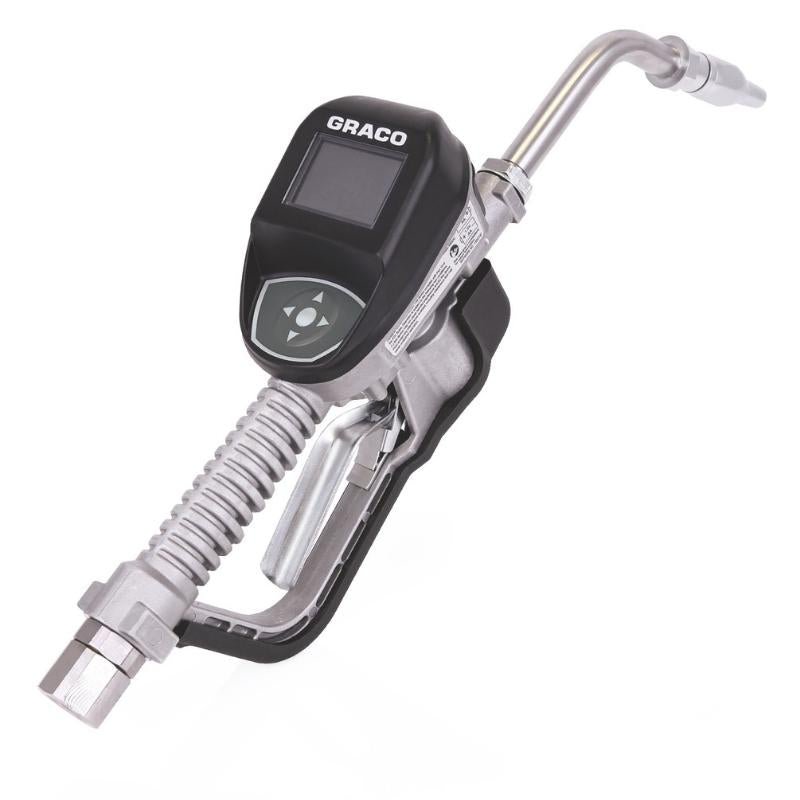

GRACO SD Series SDP8 Electronic Preset Oil Dispense Meters
SKU: 26C384GRACO SD Series SDP8 Electronic Preset Oil Dispense Meters
Other payment options
GRACO SD Series SDP8 Electronic Preset Oil Dispense Meters
Features
Graco SD Series SDP8 Electronic Preset Oil Dispense Meters
Overview
Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.
Specifications
| COMPATIBLE MATERIAL | Oil, ATF |
| DISPENSE TYPE | Preset |
| DISPLAY TYPE | Electronic |
| EXTENSION TYPE | Flexible |
| FLUID INLET THREAD GENDER | Female |
| FLUID OUTLET THREAD GENDER | Female |
| INCLUDES | Nozzle, Flexible Extension |
| INLET SIZE (CM) | 1.27 |
| INLET SIZE (IN) | 1/2 |
| INLET SIZE (MM) | 12.7 |
| INLET THREAD TYPE | NPT |
| MAXIMUM FLOW RATE (GPM) | 8 |
| MAXIMUM FLOW RATE (L/MIN) | 30 |
| MAXIMUM OPERATING TEMPERATURE (°C) | 70 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 158 |
| MAXIMUM RECORDED DISPENSE | 9999 |
| MAXIMUM STORAGE TEMPERATURE (°F) | 158 |
| MAXIMUM STORAGE TEMPERATURE (°C) | 70 |
| MAXIMUM WORKING PRESSURE (PSI) | 1500 |
| MAXIMUM WORKING PRESSURE (KPA) | 10340 |
| MAXIMUM WORKING PRESSURE (BAR) | 103.4 |
| METER ACCURACY (%) | 0.5 |
| OVERALL HEIGHT (CM) | 14.6 |
| OVERALL HEIGHT (IN) | 5.75 |
| OVERALL HEIGHT (MM) | 146 |
| OVERALL LENGTH (CM) | 33 |
| OVERALL LENGTH (IN) | 13 |
| OVERALL LENGTH (MM) | 330 |
| OVERALL WIDTH (CM) | 9.5 |
| OVERALL WIDTH (IN) | 3.75 |
| OVERALL WIDTH (MM) | 95 |
| METER TECHNOLOGY | Oval Gear |
| METERING GUN WEIGHT (LB) | 5.3 |
| METERING GUN WEIGHT (KG) | 2.4 |
| MINIMUM FLOW RATE (GPM) | 0.25 |
| MINIMUM FLOW RATE (L/MIN) | 0.9 |
| WETTED MATERIAL | Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS |
| WARRANTY | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
| UNIT OF MEASURE | Quart, Pint, Gallon, Liter |
| TRIGGER PROTECTION TYPE | Guard |
| TRIGGER LOCK | Locking |
| RECOMMENDED ENVIRONMENT | Indoor |
| OUTLET THREAD TYPE | Straight Thread O-Ring Boss |
| NOZZLE TYPE | Oil Automatic Quick-Close |
| MINIMUM OPERATING TEMPERATURE (°F) | 4 |
| MINIMUM OPERATING TEMPERATURE (°C) | -16 |
| TYPE | Electronic Metered Dispense Valve |
| VALVE TYPE | Metered |
| MAXIMUM WORKING PRESSURE (MPA) | 10.3 |
| PRODUCT TYPE | Meter |
| MODEL | SDP8 |
- Upgradeable: SD Preset meters are compatible with PULSE FC fluid control system
- Large, Intuitive Display: high-contrast display for low and bright light conditions
- Long valve life: cartridge spool valve specifically designed to reduce wear and reduce costly down time
- Ergonomic: four-finger trigger and easy-to-use button pad reduce worker fatigue
- Reliable: time-tested Graco engineering
- Durable: Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
- Long battery life: uses 4 AA easy-to-replace batteries
