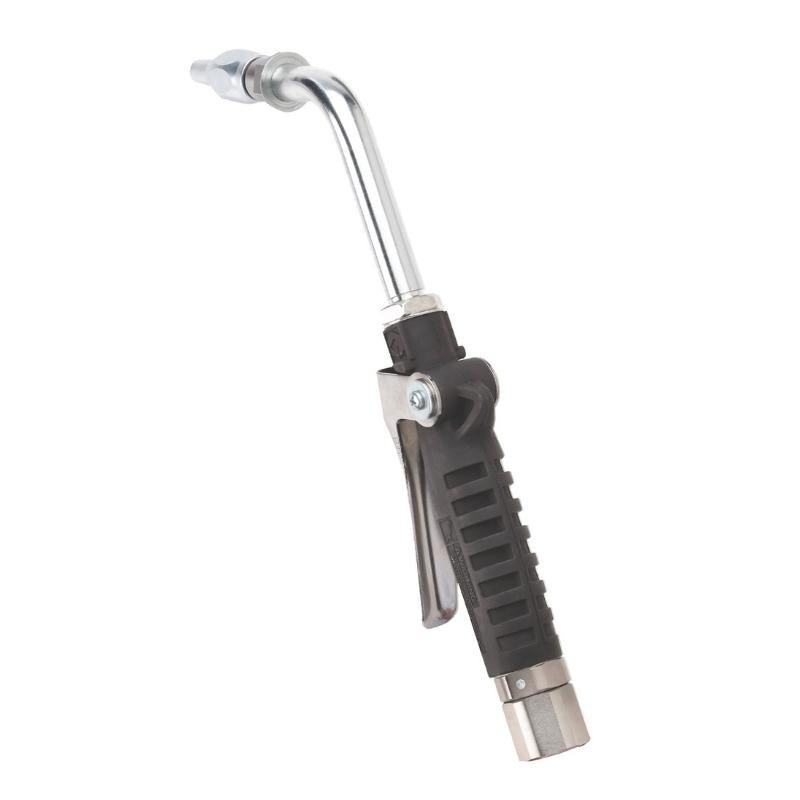

GRACO SDV15 Series Control Valves
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
For standard and heavy-duty applications, both indoor and outdoor, the SDV15 control valves are designed to perform in larger dealerships with longer plumbing runs and greater fluid usage. The control valve is compatible with a wide range of nozzles and fluid extensions and is capable of pumping oil up to 15 gpm (56.8 lpm).
Features
- Lock-On Trigger: A lock-on and lock-off trigger allows hands-free operation during longer fills.
- Sturdy Cast Body: A cast body built for tough workshop and field environments.
- Swivel Inlet: A 1/2 in NPT inlet with swivel keeps the hose from kinking.
- Extension Options: Available with a rigid or flexible extension and an oil or gear lube nozzle.
Specifications
| COMPATIBLE MATERIAL | Oil, Gear Lube |
|---|---|
| DISPLAY TYPE | N/A |
| EXTENSION TYPE | Rigid / Flexible / Gear Lube |
| INCLUDES | Nozzle, Extension |
| INLET SIZE | 12.7 MM | 1/2 IN |
| INLET THREAD GENDER | Female |
| INLET THREAD TYPE | NPT |
| MAXIMUM OPERATING TEMPERATURE | 82 C | 180 F |
| MINIMUM OPERATING TEMPERATURE | -40 C | -40 F |
| MAXIMUM WORKING PRESSURE | 103.4 BAR | 1500 PSI |
| OUTLET SIZE | 19.05 MM | 3/4 IN |
| OUTLET THREAD GENDER | Female |
| OUTLET THREAD TYPE | Straight Thread O-Ring Boss |
| TRIGGER LOCK | Locking |
| WEIGHT | 0.18 KG | 0.4 LB |
| WETTED MATERIAL | Aluminium, Stainless Steel, CS, Acetal, Nitrile Rubber, TPE |
| DISPENSE TYPE | Manual |
| RECOMMENDED ENVIRONMENT | Indoor, Outdoor |
| TYPE | Non-Metered Dispense Valve |
| VALVE TYPE | Non-Metered |
| MODEL | SDV15 |
