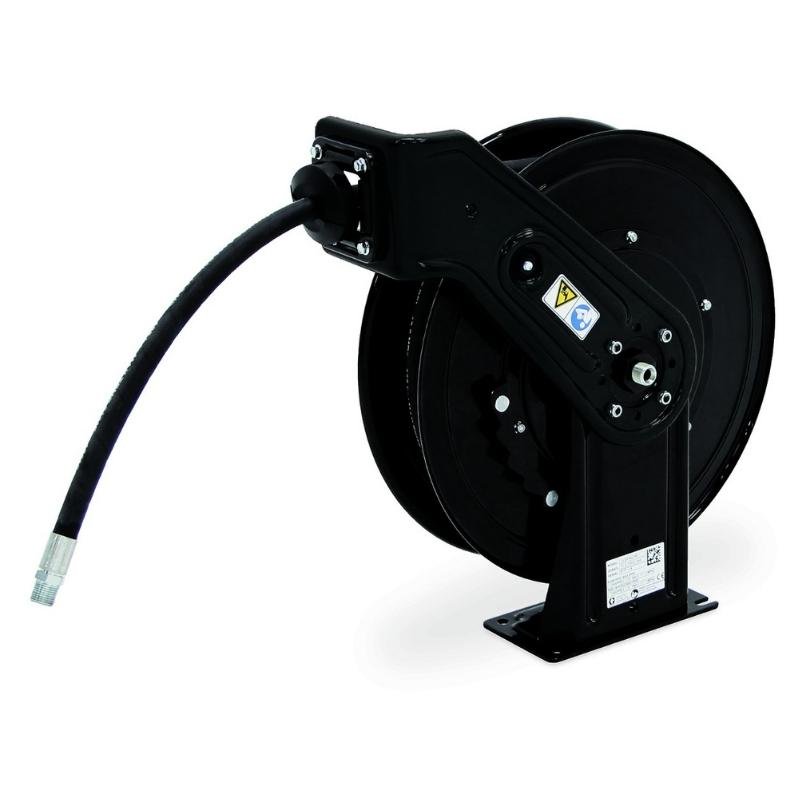

GRACO SDX 10 15m 1/4" Hose Reels for Grease

SKU: SDH15A

GRACO SDX 10 15m 1/4" Hose Reels for Grease

Regular price $1,848.00 AUD
Sale price $1,848.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Arm Color

Other payment options

View full details
Graco SDX 10 Hose Reels Range - GO Industrial

GRACO SDX 10 15m 1/4" Hose Reels for Grease

Regular price $1,848.00 AUD
Sale price $1,848.00 Regular price
Sold out

Details

With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.

Typical Applications:

  • Car dealerships
  • Light-/medium-duty truck dealers
  • Fleet maintenance
  • Public works garages
  • Construction vehicle maintenance
  • Light-utility service trucks

Compatible For:

  • Grease

Features

  • Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Adjustable Arm - Easily change the arm position for your application
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
  • Graco SDX 10 15m 1/4" Hose Reels for Grease

    Overview

    Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    Specifications

    COLOR White, Blue Metallic, Red, Black, Yellow
    DRY WEIGHT (LB) 52
    HOSE INSIDE DIAMETER (IN) 1/4
    HOSE INSIDE DIAMETER (MM) 6.35
    HOSE LENGTH (FT) 50
    HOSE LENGTH (M) 15
    INLET SIZE (IN) 3/8
    INLET SIZE (MM) 9.525
    INLET THREAD TYPE NPSM
    MAXIMUM TEMPERATURE (°C) 93
    MAXIMUM TEMPERATURE (°F) 200
    MAXIMUM WORKING PRESSURE (PSI) 5000
    MINIMUM TEMPERATURE (°C) -40
    MINIMUM TEMPERATURE (°F) -40
    MOUNT LOCATION Overhead Mount
    OUTLET SIZE (IN) 1/4
    OUTLET SIZE (MM) 6.35
    OUTLET THREAD TYPE NPT
    OVERALL HEIGHT (IN) 19.5
    OVERALL HEIGHT (MM) 498
    OVERALL LENGTH (IN) 17.1
    OVERALL LENGTH (MM) 435
    OVERALL WIDTH (IN) 7
    OVERALL WIDTH (MM) 177
    SERIES 10
    WETTED PARTS Zinc-Plated Steel, Polyurethane, Steel
    APPLICATION Grease
    TYPE Spring-Rewind Reel
    RECOMMENDED ENVIRONMENT Indoor, Limited Outdoor
    FRAME TYPE Single Pedestal
    REEL THREAD TYPE NPT
    INLET THREAD GENDER Male
    OUTLET THREAD GENDER Male
    RECOMMENDED FLUID TYPE Grease
    HOSE REEL TYPE Reel with Hose
    MODEL SDX

      Features

    • Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
    • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
    • Adjustable Arm - Easily change the arm position for your application
    • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
    • Durable Finish - Baked-on enamel finish protects reel from corrosion
