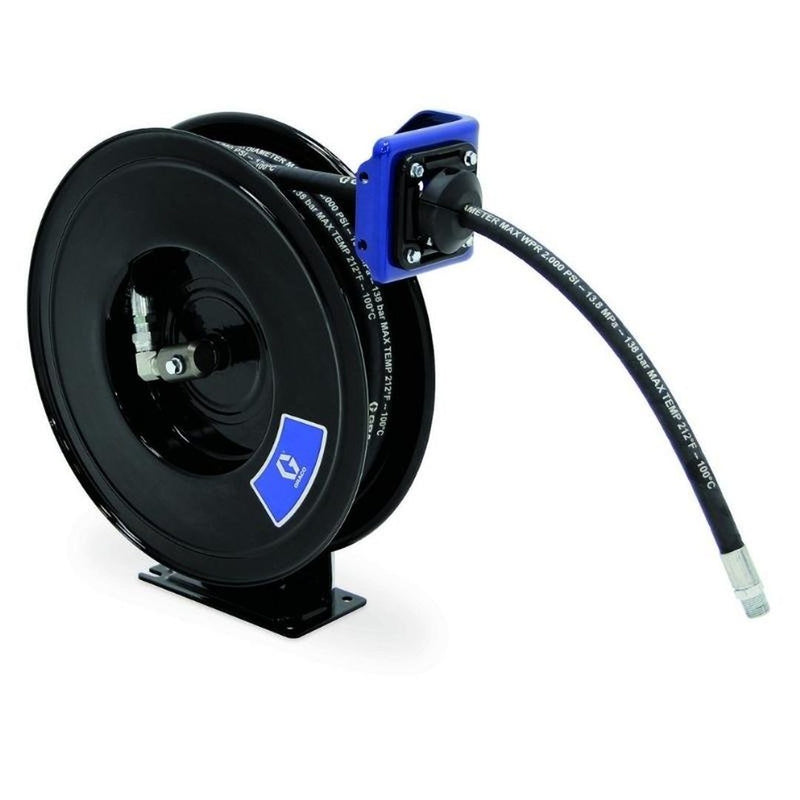

GRACO SDX 10 11m 3/8" Hose Reels for Air/Water/Antifreeze/WWS

SKU: SDL23A

GRACO SDX 10 11m 3/8" Hose Reels for Air/Water/Antifreeze/WWS

$1,254.00 AUD
$1,254.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Arm Color

Other payment options

View full details
GRACO SDX 10 11m 3/8

GRACO SDX 10 11m 3/8" Hose Reels for Air/Water/Antifreeze/WWS

From $1,254.00 AUD
From $1,254.00 AUD
Save $0
Sold out

Details

With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.

Typical Applications:

  • Car dealerships
  • Light-/medium-duty truck dealers
  • Fleet maintenance
  • Public works garages
  • Construction vehicle maintenance
  • Light-utility service trucks

Compatible For:

  • Air
  • Water
  • Antifreeze
  • Washer Fluid

Features

  • Includes a stainless-steel swivel shaft for extended service life when transporting air, water, antifreeze, windshield wash solvent and other fluids.
  • Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Adjustable Arm - Easily change the arm position for your application
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
  • Durable Finish - Baked-on enamel finish protects reel from corrosion

    • Graco SDX 10 11m 3/8" Hose Reels for Air/Water/Antifreeze/WWS

    Overview

    Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • GO Manual Graco SDX XDX Hose Reels 3A8626EN-D
      • Graco SDX Series Hose Reels Data Sheet - GO Industrial

      Specifications

      COLOR White, Metallic Blue, Yellow, Red, Black
      HOSE INSIDE DIAMETER (IN) 3/8
      HOSE INSIDE DIAMETER (MM) 9.525
      HOSE LENGTH (FT) 35
      HOSE LENGTH (M) 11
      INLET SIZE (IN) 1/2
      INLET SIZE (MM) 12.7
      INLET THREAD TYPE NPSM
      MAXIMUM TEMPERATURE (°C) 87
      MAXIMUM TEMPERATURE (°F) 190
      MAXIMUM WORKING PRESSURE (PSI) 300
      MINIMUM TEMPERATURE (°C) -28
      MINIMUM TEMPERATURE (°F) -20
      MOUNT LOCATION Overhead Mount
      OUTLET SIZE (IN) 3/8
      OUTLET SIZE (MM) 9.525
      OUTLET THREAD TYPE NPT
      OVERALL HEIGHT (IN) 19.5
      OVERALL HEIGHT (MM) 498
      OVERALL LENGTH (IN) 17.1
      OVERALL LENGTH (MM) 435
      OVERALL WIDTH (IN) 7
      OVERALL WIDTH (MM) 177
      SERIES 10
      WETTED PARTS Stainless Steel, Anodized Aluminum, Nitrile Rubber
      APPLICATION Air, Water, Antifreeze, WWS
      TYPE Spring-Rewind Reel
      RECOMMENDED ENVIRONMENT Indoor, Limited Outdoor
      FRAME TYPE Single Pedestal
      REEL THREAD TYPE NPT
      INLET THREAD GENDER Male
      OUTLET THREAD GENDER Male
      RECOMMENDED FLUID TYPE Air, Water, Antifreeze, WWS
      HOSE REEL TYPE Reel with Hose
      MODEL SDX

        Features

      • Includes a stainless-steel swivel shaft for extended service life when transporting air, water, antifreeze, windshield wash solvent and other fluids.
      • Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
      • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
      • Adjustable Arm - Easily change the arm position for your application
      • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
      • Durable Finish - Baked-on enamel finish protects reel from corrosion
