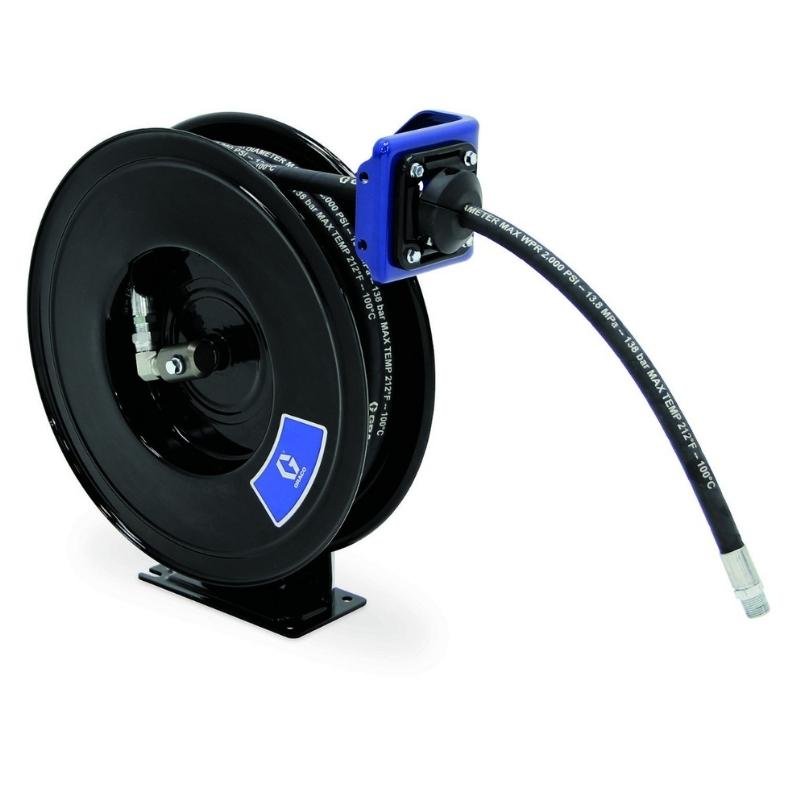

GRACO SDX 10 11m 3/8" Hose Reels for Air/Water/Antifreeze/WWS - GO Industrial - SDL23B

GRACO SDX 10 11m 3/8" Hose Reels for Air/Water/Antifreeze/WWS

SKU SDL23F
Afterpay Zip PayPal LeaseGO
$1,287.00
Tax included. Shipping calculated at checkout.
Arm Color
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors.

    Features

    Features

  • Includes a stainless-steel swivel shaft for extended service life when transporting air, water, antifreeze, windshield wash solvent and other fluids.
  • Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Adjustable Arm - Easily change the arm position for your application
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
    • Specifications
    COLOR White, Metallic Blue, Yellow, Red, Black
    HOSE INSIDE DIAMETER (IN) 3/8
    HOSE INSIDE DIAMETER (MM) 9.525
    HOSE LENGTH (FT) 35
    HOSE LENGTH (M) 11
    INLET SIZE (IN) 1/2
    INLET SIZE (MM) 12.7
    INLET THREAD TYPE NPSM
    MAXIMUM TEMPERATURE (°C) 87
    MAXIMUM TEMPERATURE (°F) 190
    MAXIMUM WORKING PRESSURE (PSI) 300
    MINIMUM TEMPERATURE (°C) -28
    MINIMUM TEMPERATURE (°F) -20
    MOUNT LOCATION Overhead Mount
    OUTLET SIZE (IN) 3/8
    OUTLET SIZE (MM) 9.525
    OUTLET THREAD TYPE NPT
    OVERALL HEIGHT (IN) 19.5
    OVERALL HEIGHT (MM) 498
    OVERALL LENGTH (IN) 17.1
    OVERALL LENGTH (MM) 435
    OVERALL WIDTH (IN) 7
    OVERALL WIDTH (MM) 177
    SERIES 10
    WETTED PARTS Stainless Steel, Anodized Aluminum, Nitrile Rubber
    APPLICATION Air, Water, Antifreeze, WWS
    TYPE Spring-Rewind Reel
    RECOMMENDED ENVIRONMENT Indoor, Limited Outdoor
    FRAME TYPE Single Pedestal
    REEL THREAD TYPE NPT
    INLET THREAD GENDER Male
    OUTLET THREAD GENDER Male
    RECOMMENDED FLUID TYPE Air, Water, Antifreeze, WWS
    HOSE REEL TYPE Reel with Hose
    MODEL SDX
