GRACO SDX 20 15m 3/8" Hose Reels for Grease
Features

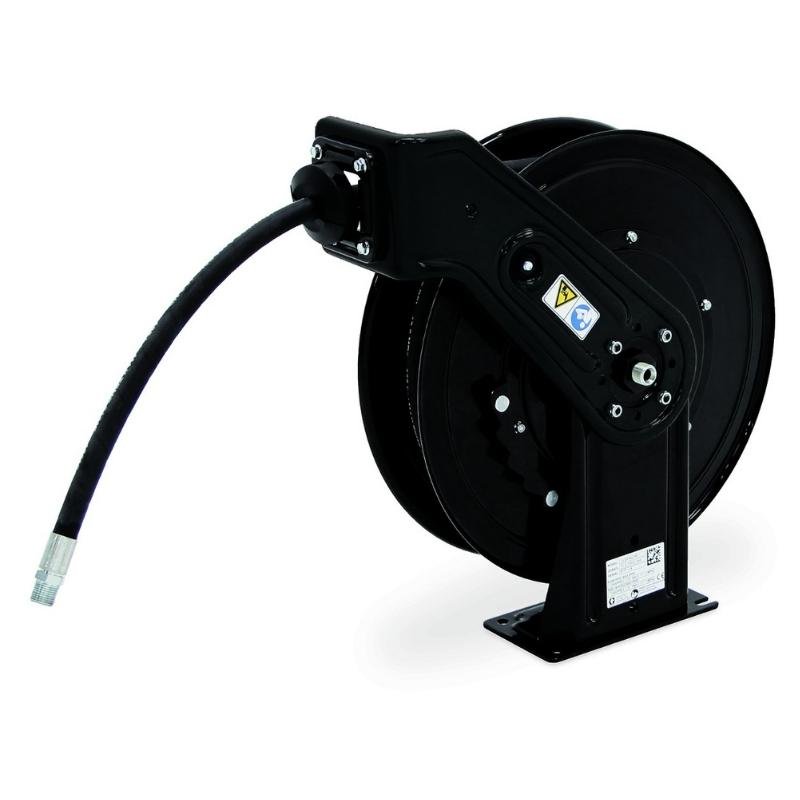

Graco SDX 20 15m 3/8" Hose Reels for Grease
Overview
Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors.
- Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Adjustable Arm - Easily change the arm position for your application
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
- Durable Finish - Baked-on enamel finish protects reel from corrosion
Specifications
| COLOR | White, Blue Metallic, Red, Black, Yellow |
| DRY WEIGHT (LB) | 52 |
| HOSE INSIDE DIAMETER (IN) | 3/8 |
| HOSE INSIDE DIAMETER (MM) | 9.525 |
| HOSE LENGTH (FT) | 50 |
| HOSE LENGTH (M) | 15 |
| INLET SIZE (IN) | 3/8 |
| INLET SIZE (MM) | 9.525 |
| INLET THREAD TYPE | NPSM |
| MAXIMUM TEMPERATURE (°C) | 93 |
| MAXIMUM TEMPERATURE (°F) | 200 |
| MAXIMUM WORKING PRESSURE (PSI) | 4800 |
| MINIMUM TEMPERATURE (°C) | -40 |
| MINIMUM TEMPERATURE (°F) | -40 |
| MOUNT LOCATION | Overhead Mount |
| OUTLET SIZE (IN) | 1/4 |
| OUTLET SIZE (MM) | 6.35 |
| OUTLET THREAD TYPE | NPT |
| OVERALL HEIGHT (IN) | 21.8 |
| OVERALL HEIGHT (MM) | 554 |
| OVERALL LENGTH (IN) | 19.2 |
| OVERALL LENGTH (MM) | 487 |
| OVERALL WIDTH (IN) | 7 |
| OVERALL WIDTH (MM) | 177 |
| SERIES | 20 |
| WETTED PARTS | Zinc-Plated Steel, Polyurethane, Steel |
| APPLICATION | Grease |
| TYPE | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor, Limited Outdoor |
| FRAME TYPE | Single Pedestal |
| REEL THREAD TYPE | NPT |
| INLET THREAD GENDER | Male |
| OUTLET THREAD GENDER | Male |
| RECOMMENDED FLUID TYPE | Grease |
| HOSE REEL TYPE | Reel with Hose |
| MODEL | SDX |
