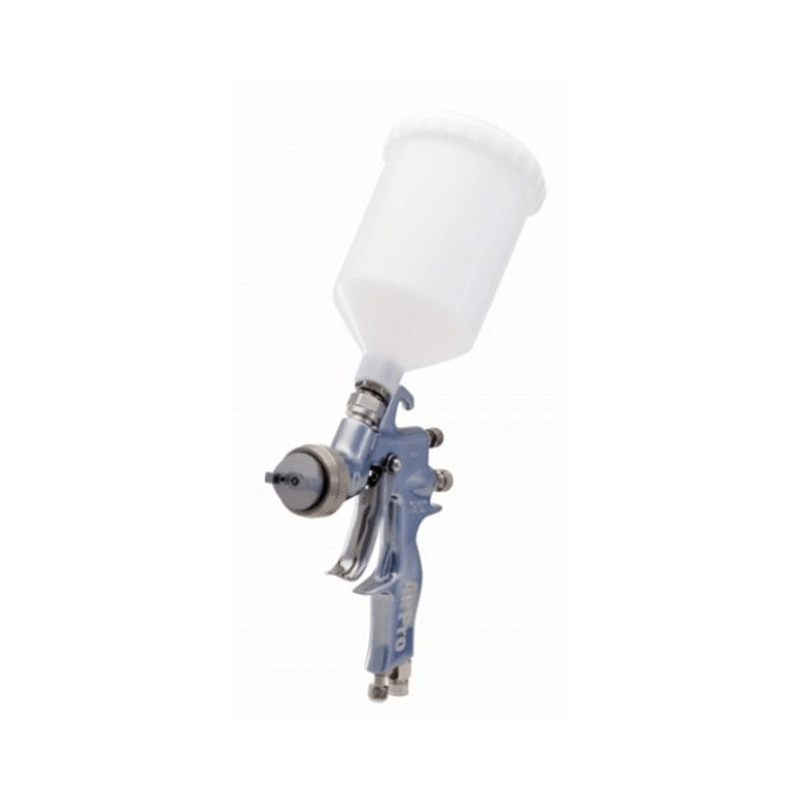

GRACO Spray Gun AirPro - Gravity Feed
SKU: 289003
$590.70
Try It With

GRACO Spray Gun Cleaning Kits
From $87.55
GRACO Spray Gun AirPro - Gravity Feed
- Advanced Air Spray Gun Technology
- Manual air spray gun ideal for automotive, metal, wood, waterborne, high wear and adhesive applications
Ultimate Spraying Experience
The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you’re a custom shop or a high volume manufacturing facility. Ideal for automotive, general metal, wood, waterborne, high wear and adhesive applications.
- Even material distribution through the spray pattern for optimum coverage
- Improved transfer efficiency through reduced air consumption
- Uniform air flow through reduced air consumption
- Enhanced atomisation through material-specific aircaps
![]() |
DATA SHEET |
![]() |
DATA SHEET - PARTS FLYER |
![]() |
MANUAL - SYPHON FEED |
![]() |
MANUAL - GRAVITY FEED |
![]() |
MANUAL - PRESSURE FEED |
![]() |
VIDEO - PRODUCT OVERVIEW |
![]() |

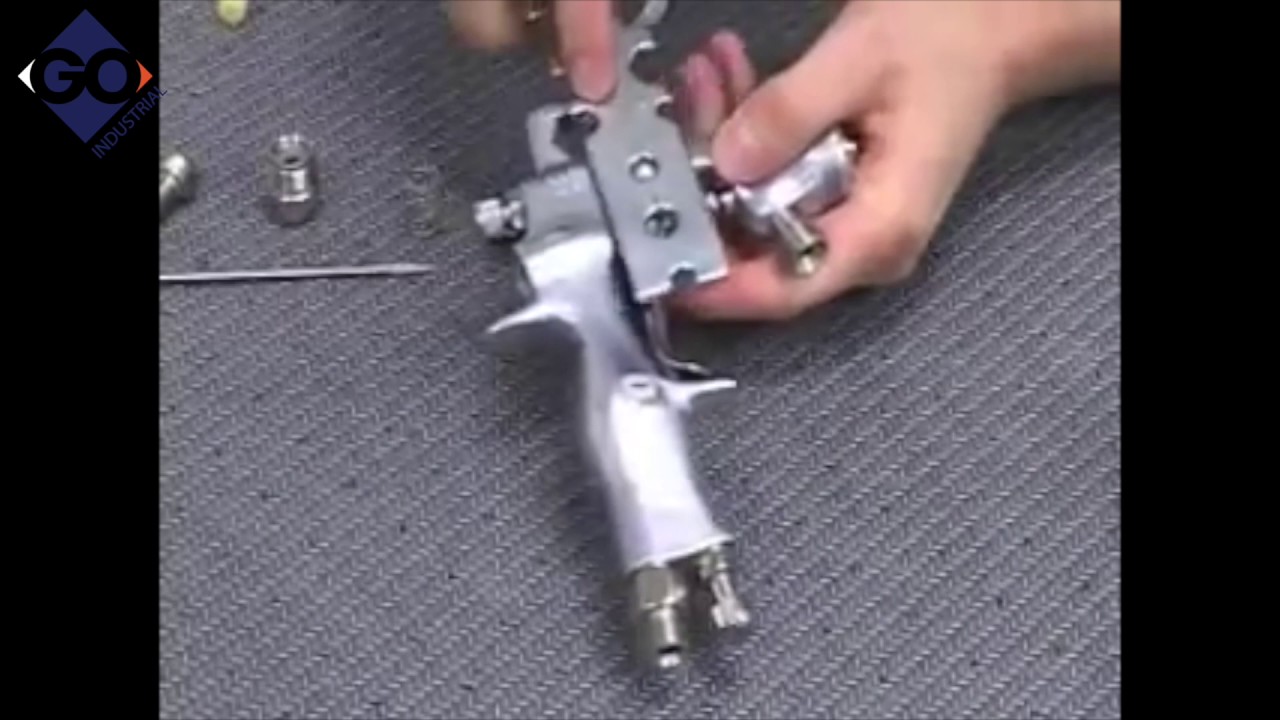

VIDEO - SERVICE TEAR DOWN |
![]() |
VIDEO - SERVICE REBUILD |
Specifications
Maximum Air Inlet Pressure |
7.0 bar, 0.7 MPa
|
Maximum Fluid Inlet Pressure |
21.0 bar, 2.1 MPa
|
Maximum HVLP/Compliant Inbound Air Pressure |
Printed on air cap. See the AirPro Instructions-Parts manual.
|
Fluid and Air Operating Temperature Range |
0–43°C
|
Air Inlet |
1/4 npsm (R1/4–19)
|
Fluid Inlet |
3/8 npsm (R3/8–19)
|
Weight |
410 gm
|
Wetted Parts |
303 stainless steel, 17–4 PH stainless steel, PEEK, UHMWPE, acetal
|
Noise Data | |
Conventional Spray Guns | |
Sound power at 43 psi (3.0 bar, 0.30 MPa) |
88.82 dB(A)
|
Sound pressure at 43 psi (3.0 bar, 0.30 MPa) |
78.91 dB(A)
|
HVLP Spray Guns | |
Sound power at 19 psi (1.3 bar, 0.13 MPa) |
89.70 dB(A)
|
Sound pressure at 19 psi (1.3 bar, 0.13 MPa) |
79.79 dB(A)
|
Compliant Spray Guns | |
Sound power at 29 psi (2.0 bar, 0.20 MPa) |
87.47 dB(A)
|
Sound pressure at 29 psi (2.0 bar, 0.20 MPa) |
77.56 dB(A)
|
