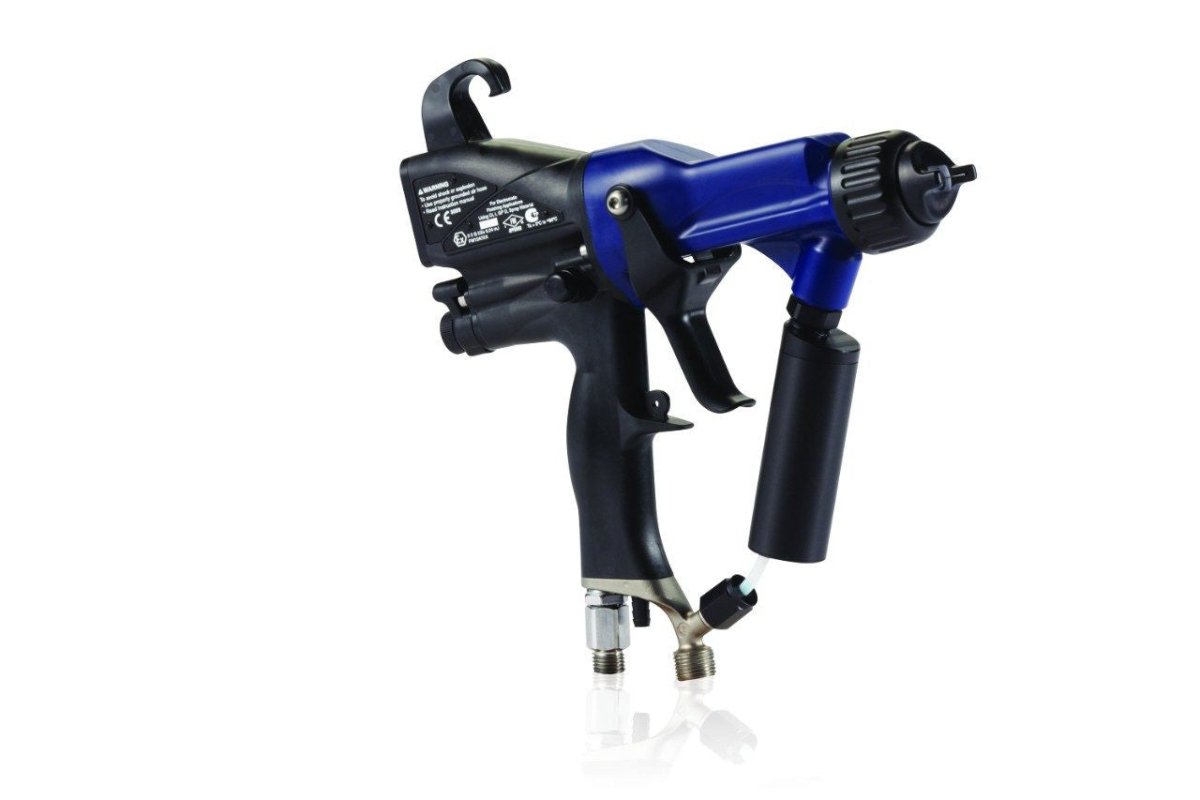

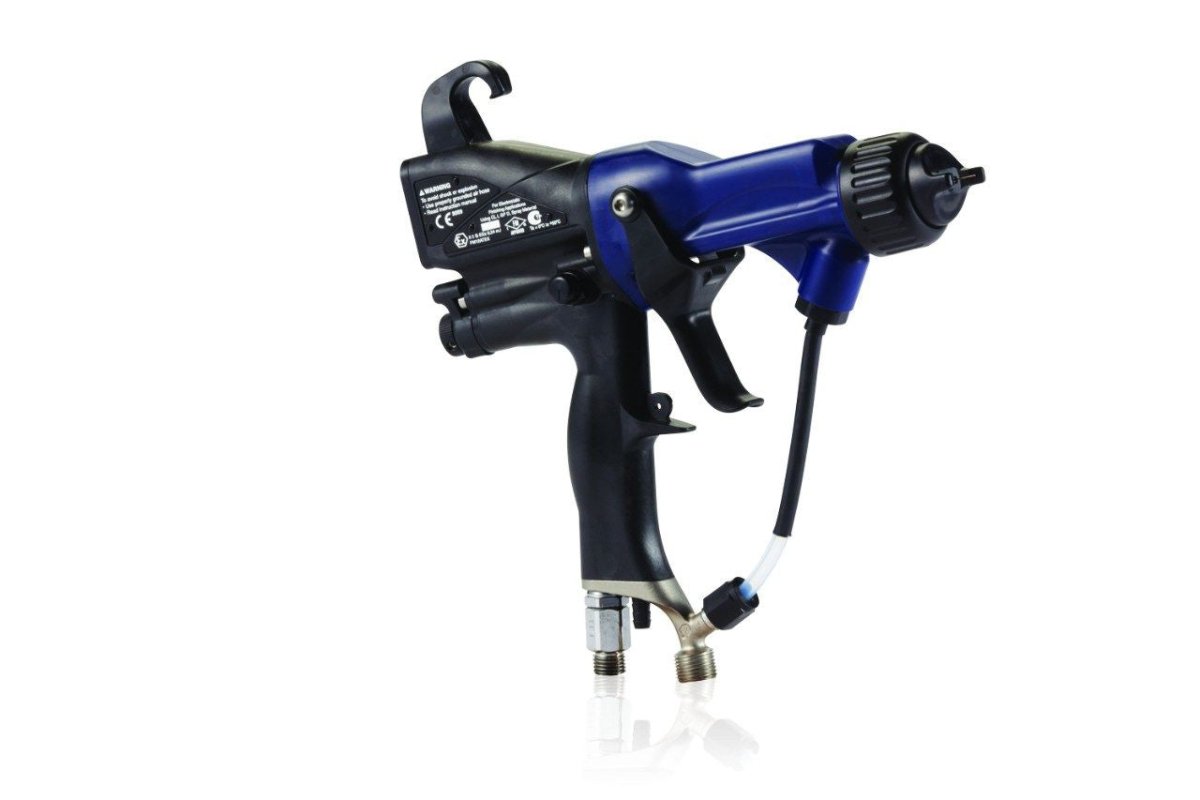

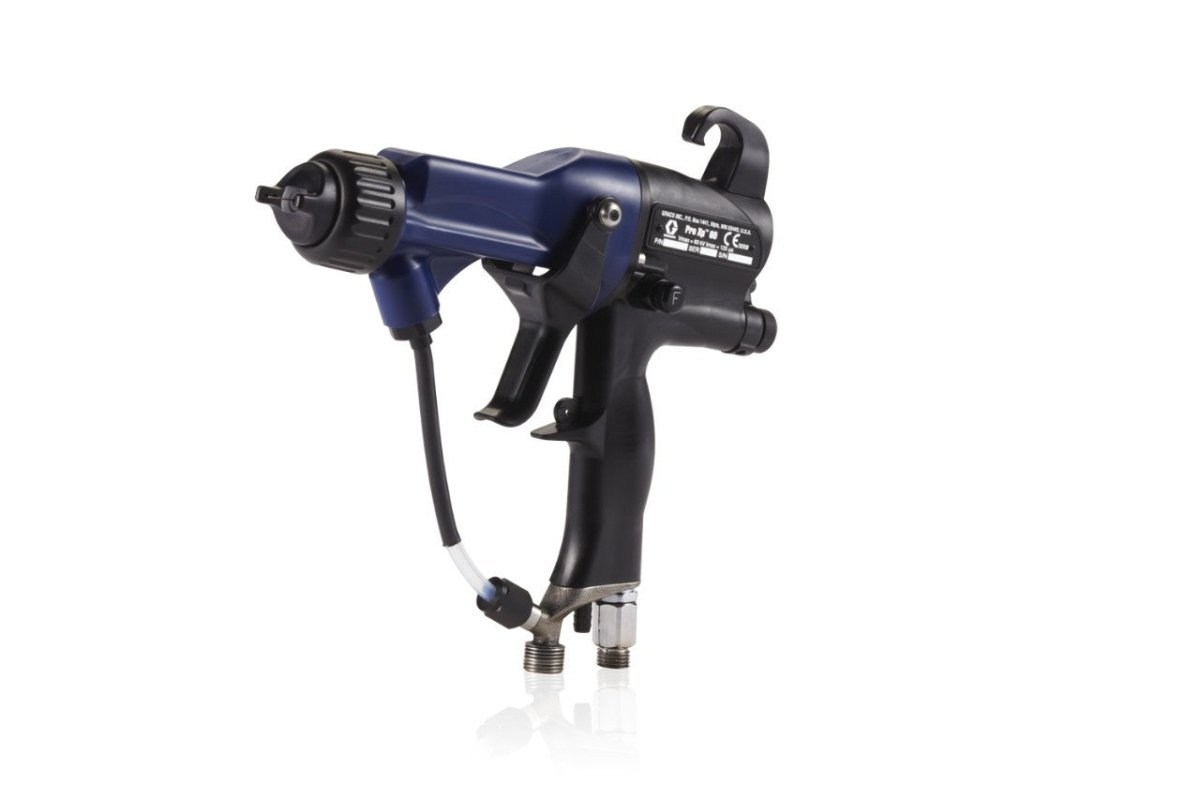

GRACO Spray Gun Pro Xp60 and Xp60 AA Electrostatic Range

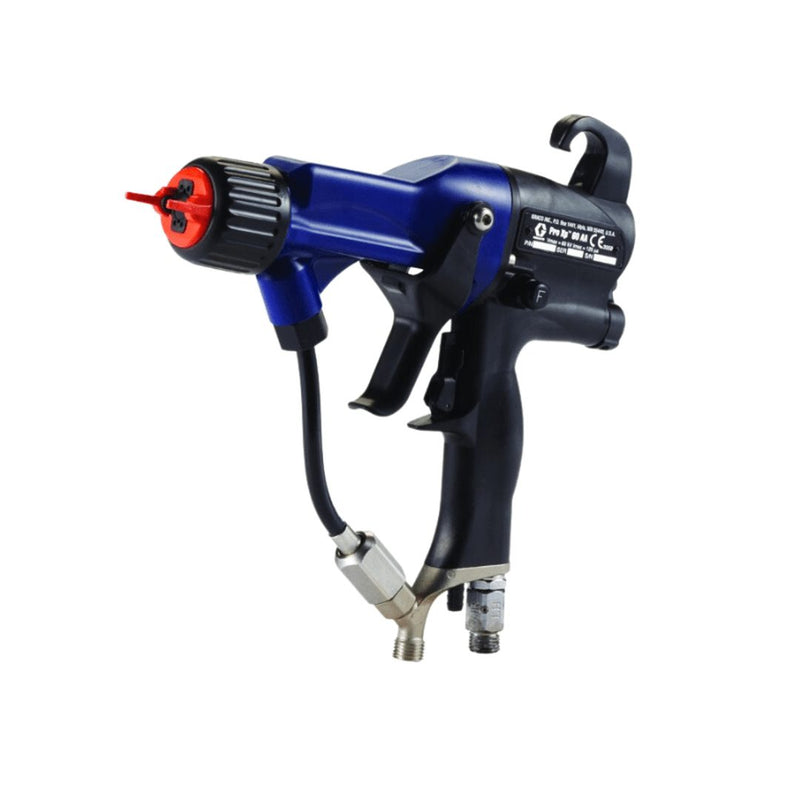

GRACO Pro Xp60 and Xp60 AA Electrostatic Spray Guns

From $12,430.00 AUD

Save $0

Sold out

Product variants

Details

Perform Above The Rest

Each electrostatic gun meets strict requirements for spray pattern, mechanical and electrical performance
Aircaps and spray tips deliver superior quality finish in any application
High transfer efficiency equals less waste, saving you money on material

Last Longer

Built-in durability means each gun is designed to last – and made in the USA
Easy-to-repair guns are backed by a three-year warranty and A+ Service

Boost Productivity

Pro Xp guns reduce operator fatigue by eliminating heavy power cords
Painters experience less muscle strain when using ergonomic, lightweight gun
Durable components mean less time fixing and more time spraying

Flex To Your Application

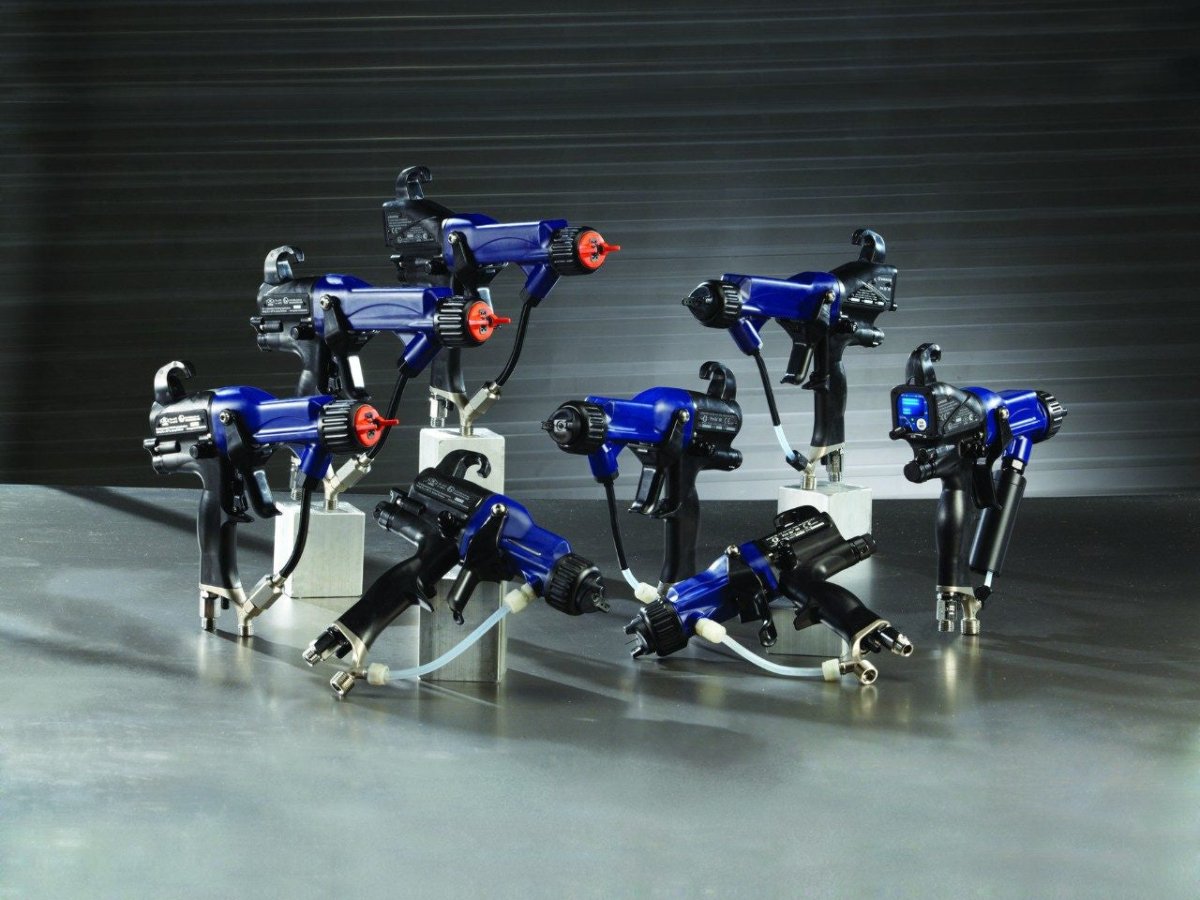

More models bring flexibility to paint line production needs
Application-specific guns fulfill requirements out-of-the-box – without having to retrofit with accessories

Features

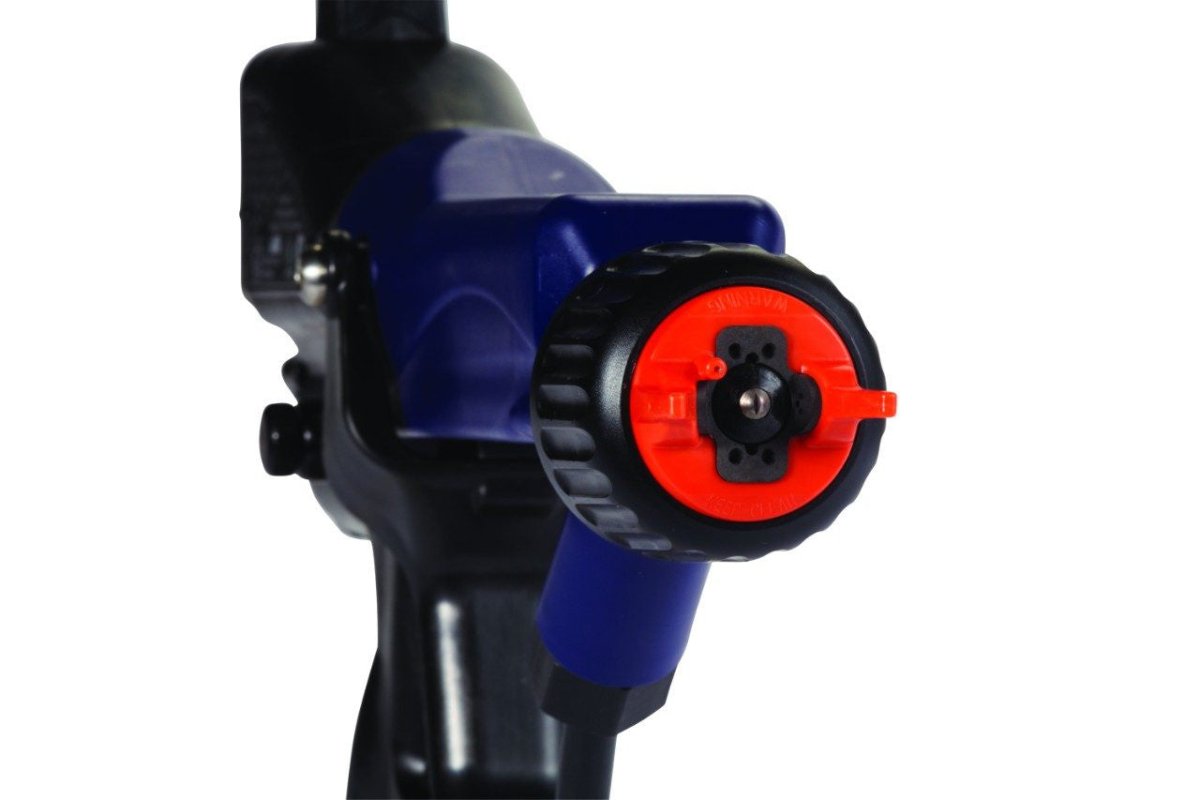

High quality spray performance with a one-piece aircap and variety of spray tips

Transfer efficiency is improved over conventional air-assist guns

Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier

Made in the USA

The smallest profile gun with internal power supply on the market – 1 inch (2.5 cm) shorter and 4 oz (110 g) lighter

Fan adjust pattern control reduces overspray by changing the fan pattern width according to the size of the part – improving quality and saving you money

Rugged, dependable design supported by a three year warranty

Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements

Graco Pro Xp60 and Xp60 AA Electrostatic Spray Guns

Overview

Graco’s high performing electrostatic spray guns keep getting better. With more models to choose from, you’ll get the performance you expect – now with greater spraying flexibility for ever-changing production needs. The new Pro Xp air spray models are designed to support your application needs. They come ready to spray out-of-the-box – without modifications.

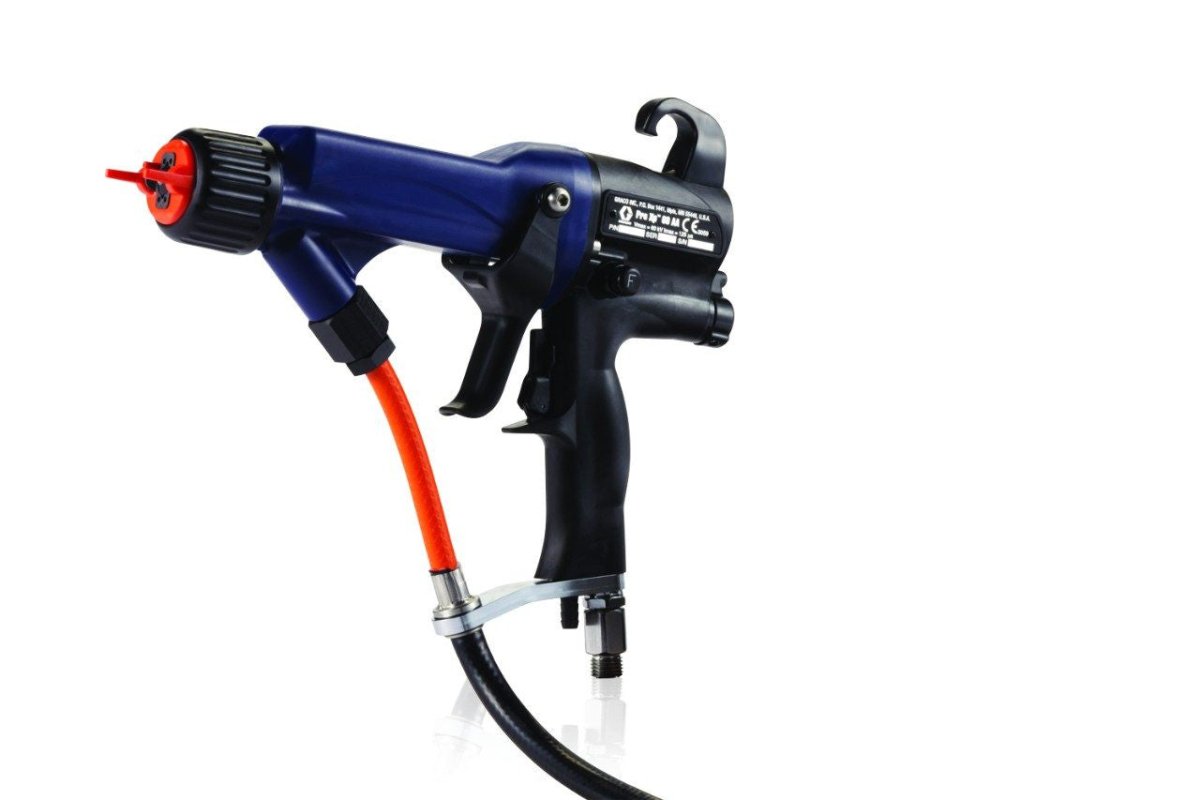

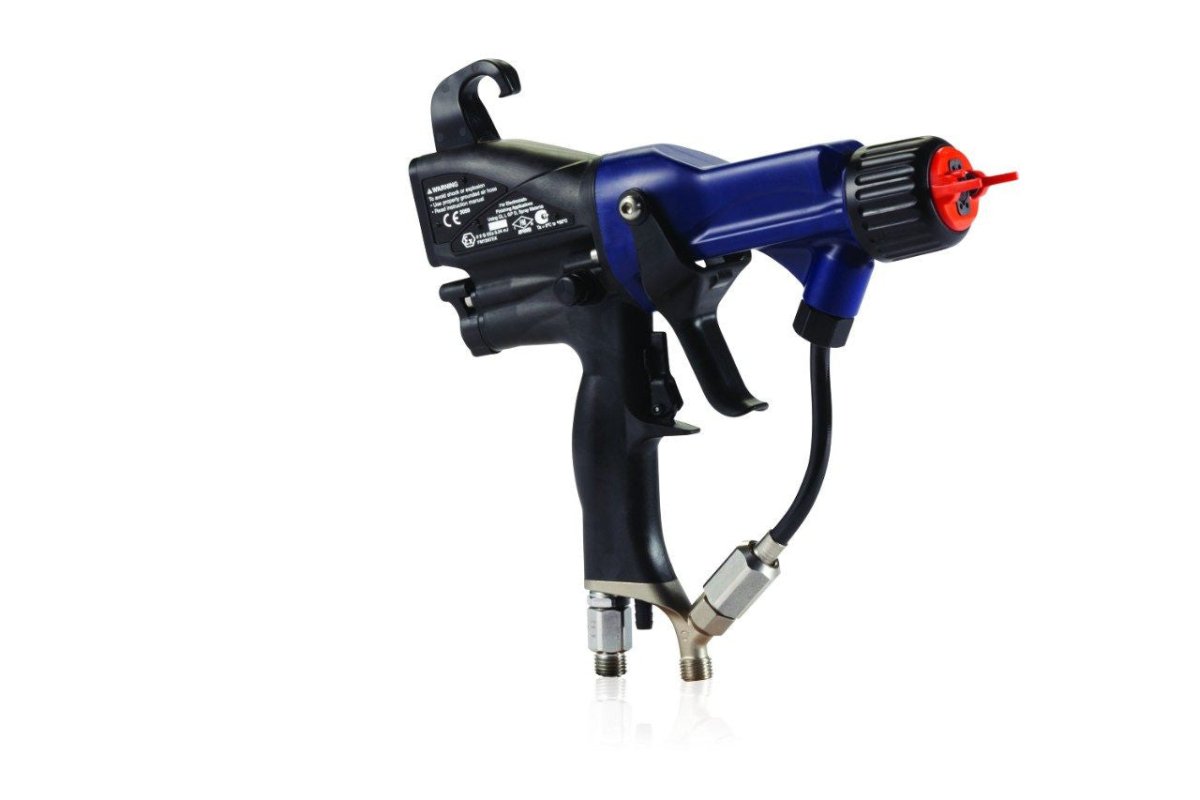

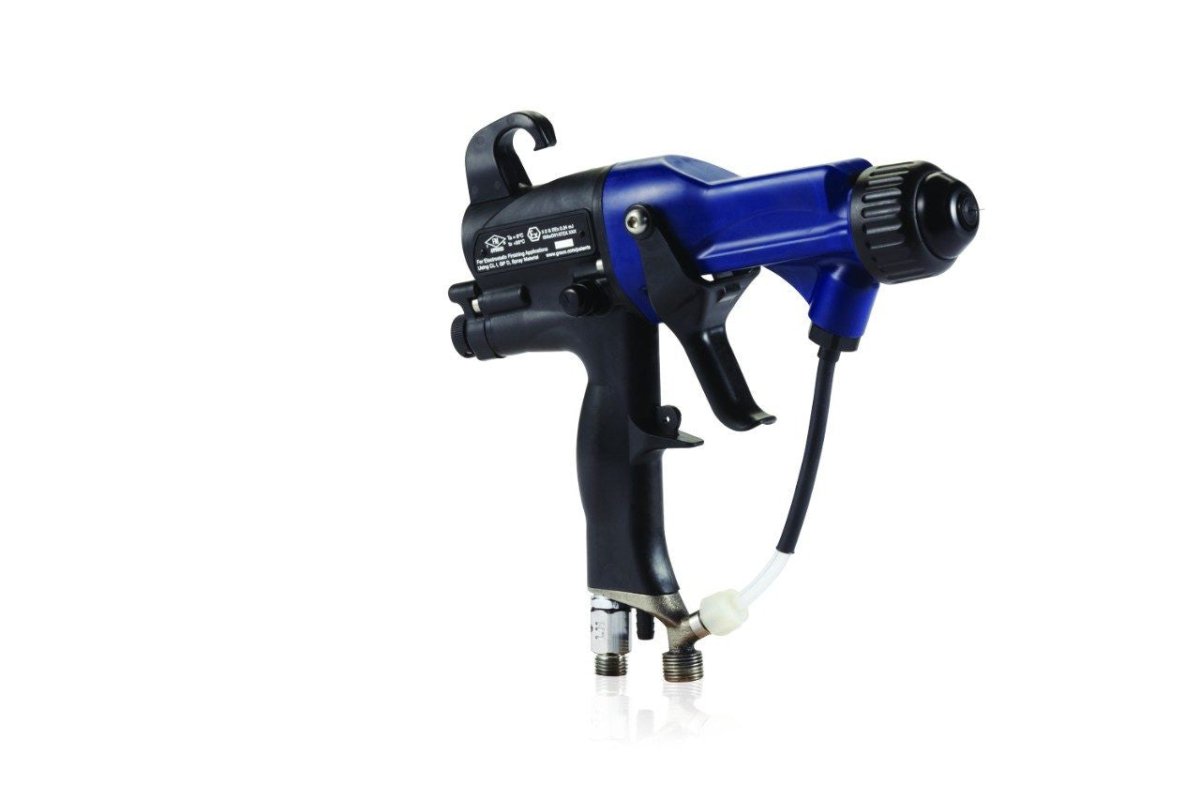

Pro Xp60 kV air-assist gun is the smallest and lightest electrostatic air-assist gun on the market – delivering a consistent, high quality finish every time you spray
Our improved tip line delivers a high quality finish for a variety of applications.
Plus, the pre-orifice tips atomise paints for fine finish applications.

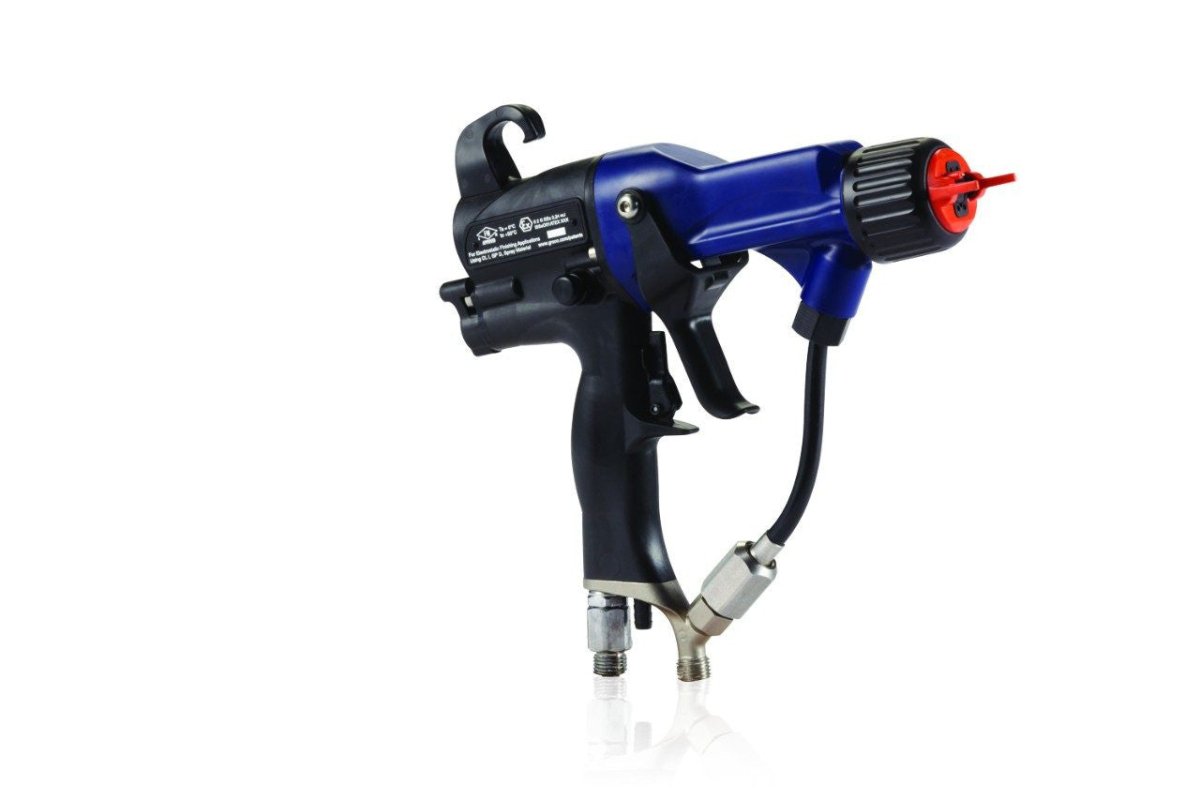

Graco Pro Xp60 AA gun line includes Standard, Smart and Waterborne models

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

GO Data Sheet Graco Pro Xp Electrostatic Spray Guns

GO Data Sheet Graco Electrostatic Waterborne Spray Guns

GO Manual Graco Pro Xp40 Electrostatic Spray Guns

GO Manual Graco Electrostatic Waterborne Spray Guns

GO Manual Graco Round Spray Kit

Specifications

Graco Pro Xp60

Maximum Working Fluid Pressure	0.7 MPa, 7.0 bar
Maximum Working Air Pressure	0.7 MPa, 7.0 bar
Minimum Air Pressure at Gun Inlet	0.32 MPa, 3.2 bar
Maximum Fluid Operating Temperature	48°C
Paint Resistivity Range	3 megohm/cm to infinity. For a table of electrostatic results at different resistance levels, see instruction manual..
Air Inlet Fitting	1/4 npsm(m) left-hand thread
Fluid Inlet Fitting	3/8 npsm(m)
Output Voltage	Pro Xp40 Models: 40 kVPro Xp60 Models: 60 kVPro Xp85 Models: 85 kV
Maximum Current Draw	125 microamperes
Sound Power (measured per ISO Standard 9216)	at 0.28 MPa, 2.8 bar: 90.4 dB(A)at 0.7 MPa, 7.0 bar: 105.4 dB(A)
Sound Pressure (measured 1 m from gun)	at 0.28 MPa, 2.8 bar: 87.0 dB(A) at 0.7 MPa, 7.0 bar: 99.0 dB(A)
Wetted Parts	PEEK, UHMWPE, FEP, PTFE, acetal, nylon, polyethylene

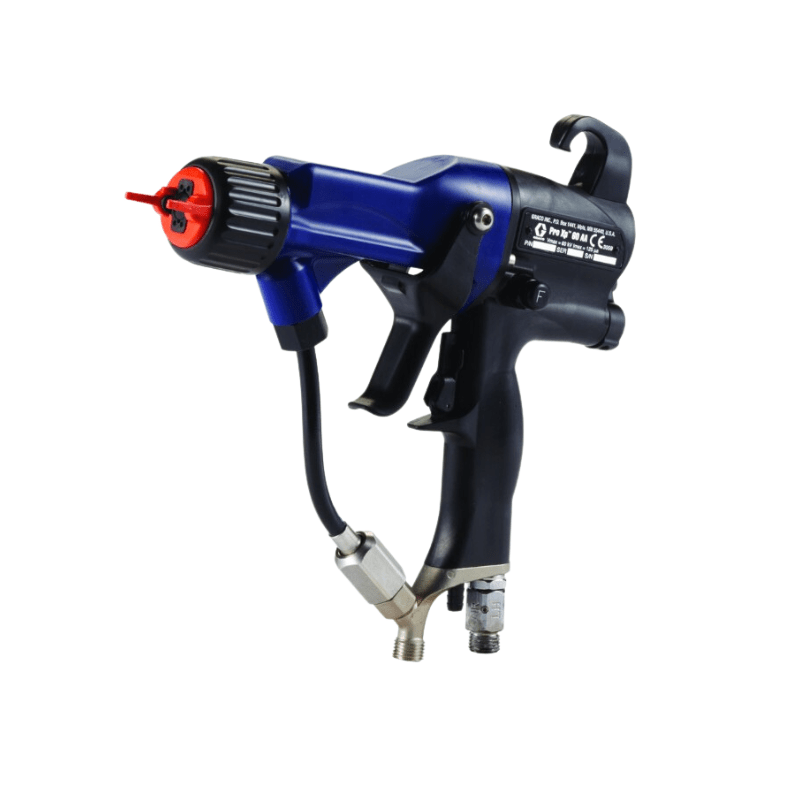

Graco Pro Xp60 AA

Maximum Working Fluid Pressure	21 MPa, 210 bar
Maximum Working Air Pressure	0.7 MPa, 7.0 bar
Minimum Air Pressure at Gun Inlet	0.32 MPa, 3.2 bar
Maximum Fluid Operating Temperature	48°C
Paint Resistivity Range	3 megohm/cm to infinity
Air Inlet Fitting	1/4 npsm(m) left-hand thread
Fluid Inlet Fitting	1/4–18 npsm(m)
Output Voltage	Pro Xp60 Models: 60 kV. Pro Xp85 Models: 85 kV
Maximum Current Draw	125 microamperes
Sound Power (measured per ISO Standard 9216)	at 0.28 MPa, 2.8 bar: 88.9 dB(A) at 0.7 MPa, 7.0 bar: 99.7 dB(A)
Sound Pressure (measured 1 m from gun)	at 0.28 MPa, 2.8 bar: 86.0 dB(A) at 0.7 MPa, 7.0 bar: 95.0 dB(A)
Wetted Parts	PEEK, UHMWPE, FEP, PTFE, acetal, nylon, polyethylene

Features

High quality spray performance with a one-piece aircap and variety of spray tips
Transfer efficiency is improved over conventional air-assist guns
Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier
Made in the USA
The smallest profile gun with internal power supply on the market – 1 inch (2.5 cm) shorter and 4 oz (110 g) lighter
Fan adjust pattern control reduces overspray by changing the fan pattern width according to the size of the part – improving quality and saving you money
Rugged, dependable design supported by a three year warranty
Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements
