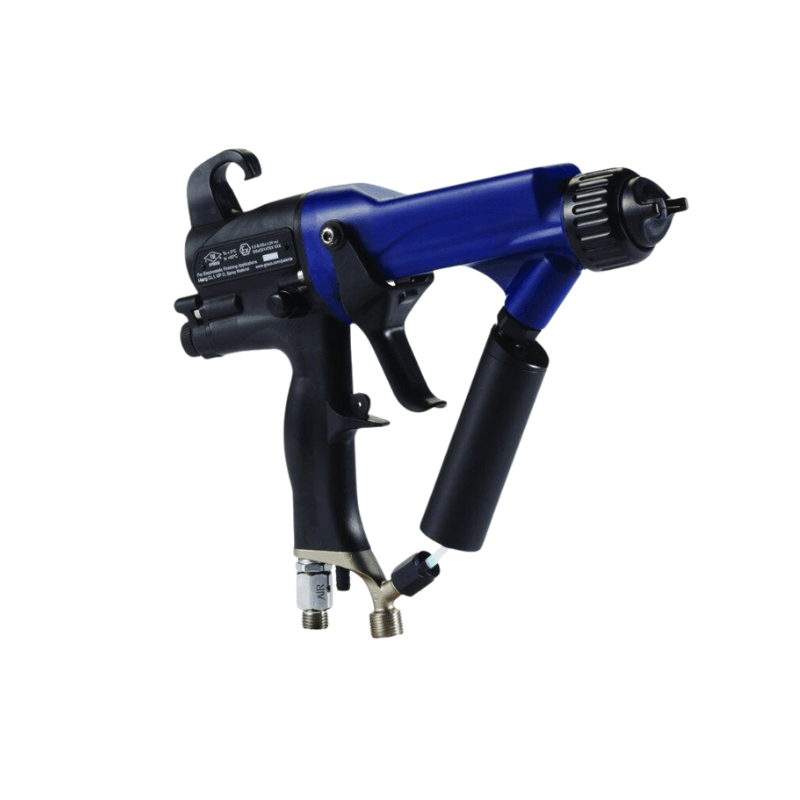

GRACO Pro Xp85 and Xp85 AA Electrostatic Spray Guns
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Graco’s high performing electrostatic spray guns keep getting better. With more models to choose from, you’ll get the performance you expect – now with greater spraying flexibility for ever-changing production needs. The new Pro Xp air spray models are designed to support your application needs. They come ready to spray out-of-the-box – without modifications.
The 85 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market.
- Pro Xp85 kV air spray gun maximises transfer efficiency and lowers cost of ownership
- The ergonomic design and efficiency of the Pro Xp85 makes it the perfect solution for your application - saving you money and improving quality. Pro Xp85 Air Spray electrostatic gun line includes Standard, Smart and High Conductivity models.
- Pro Xp85 kV air-assist gun maximizes transfer efficiency and lowers cost of ownership
- Our improved tip line delivers a high quality finish for a variety of applications. Plus, the pre-orifice tips atomize paints for fine finish applications. Pro Xp85 Air-Assist gun line includes Standard and Smart models.
Features
Features
Specifications
Graco Pro Xp85
| Maximum Working Fluid Pressure |
0.7 MPa, 7.0 bar
|
| Maximum Working Air Pressure |
0.7 MPa, 7.0 bar
|
| Minimum Air Pressure at Gun Inlet |
0.32 MPa, 3.2 bar
|
| Maximum Fluid Operating Temperature |
48°C
|
| Paint Resistivity Range |
3 megohm/cm to infinity. For a table of electrostatic results at different resistance levels, see instruction manual..
|
| Air Inlet Fitting |
1/4 npsm(m) left-hand thread
|
| Fluid Inlet Fitting |
3/8 npsm(m)
|
| Output Voltage |
Pro Xp40 Models: 40 kVPro Xp60 Models: 60 kVPro Xp85 Models: 85 kV
|
| Maximum Current Draw |
125 microamperes
|
| Sound Power (measured per ISO Standard 9216) |
at 0.28 MPa, 2.8 bar: 90.4 dB(A)at 0.7 MPa, 7.0 bar: 105.4 dB(A)
|
| Sound Pressure (measured 1 m from gun) |
at 0.28 MPa, 2.8 bar: 87.0 dB(A) at 0.7 MPa, 7.0 bar: 99.0 dB(A)
|
| Wetted Parts |
PEEK, UHMWPE, FEP, PTFE, acetal, nylon, polyethylene
|
Graco Pro Xp85 AA
| Maximum Working Fluid Pressure |
21 MPa, 210 bar
|
| Maximum Working Air Pressure |
0.7 MPa, 7.0 bar
|
| Minimum Air Pressure at Gun Inlet |
0.32 MPa, 3.2 bar
|
| Maximum Fluid Operating Temperature |
48°C
|
| Paint Resistivity Range |
3 megohm/cm to infinity
|
| Air Inlet Fitting |
1/4 npsm(m) left-hand thread
|
| Fluid Inlet Fitting |
1/4–18 npsm(m)
|
| Output Voltage |
Pro Xp60 Models: 60 kV. Pro Xp85 Models: 85 kV
|
| Maximum Current Draw |
125 microamperes
|
| Sound Power (measured per ISO Standard 9216) |
at 0.28 MPa, 2.8 bar: 88.9 dB(A) at 0.7 MPa, 7.0 bar: 99.7 dB(A)
|
| Sound Pressure (measured 1 m from gun) |
at 0.28 MPa, 2.8 bar: 86.0 dB(A) at 0.7 MPa, 7.0 bar: 95.0 dB(A)
|
| Wetted Parts |
PEEK, UHMWPE, FEP, PTFE, acetal, nylon, polyethylene
|
