GRACO Spray Gun Pro Xp40 Electrostatic Range
SKU: L40T10
$4,196.80

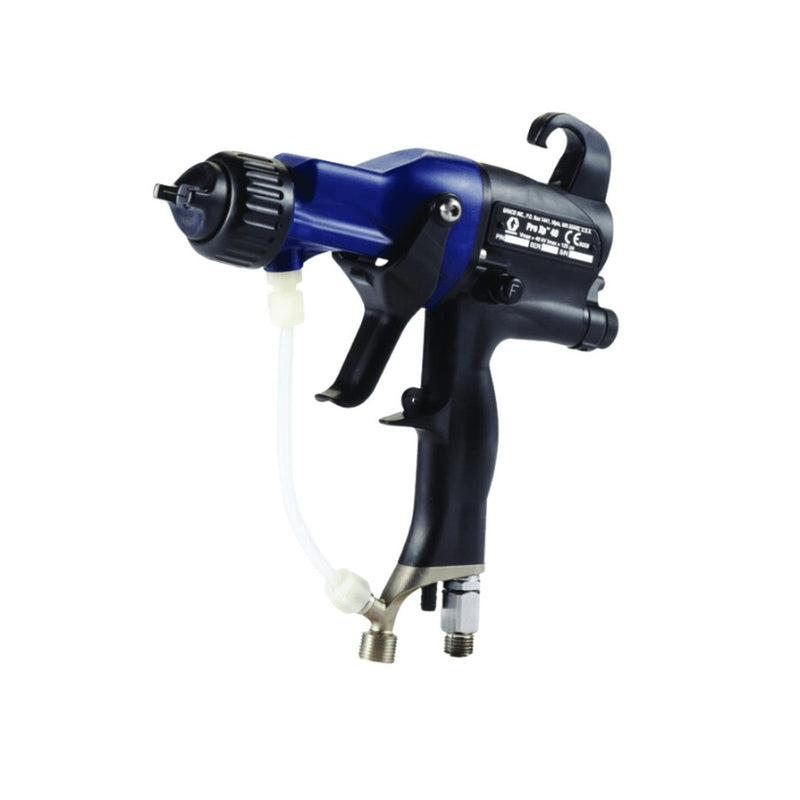

GRACO Spray Gun Pro Xp40 Electrostatic Range
- Graco Electrostatic Air Spray Guns Deliver Expert Performance
Graco Pro Xp 40kV - Summary
- Pro Xp40 kV electrostatic air spray gun in a compact, lightweight package.
- The 40 kV Booster gun gives you the transfer efficiency of a 60 kV gun, in a smaller, more compact size.
- The longer fluid tube on the High Conductivity (HC) lets you spray lower resistivity material.

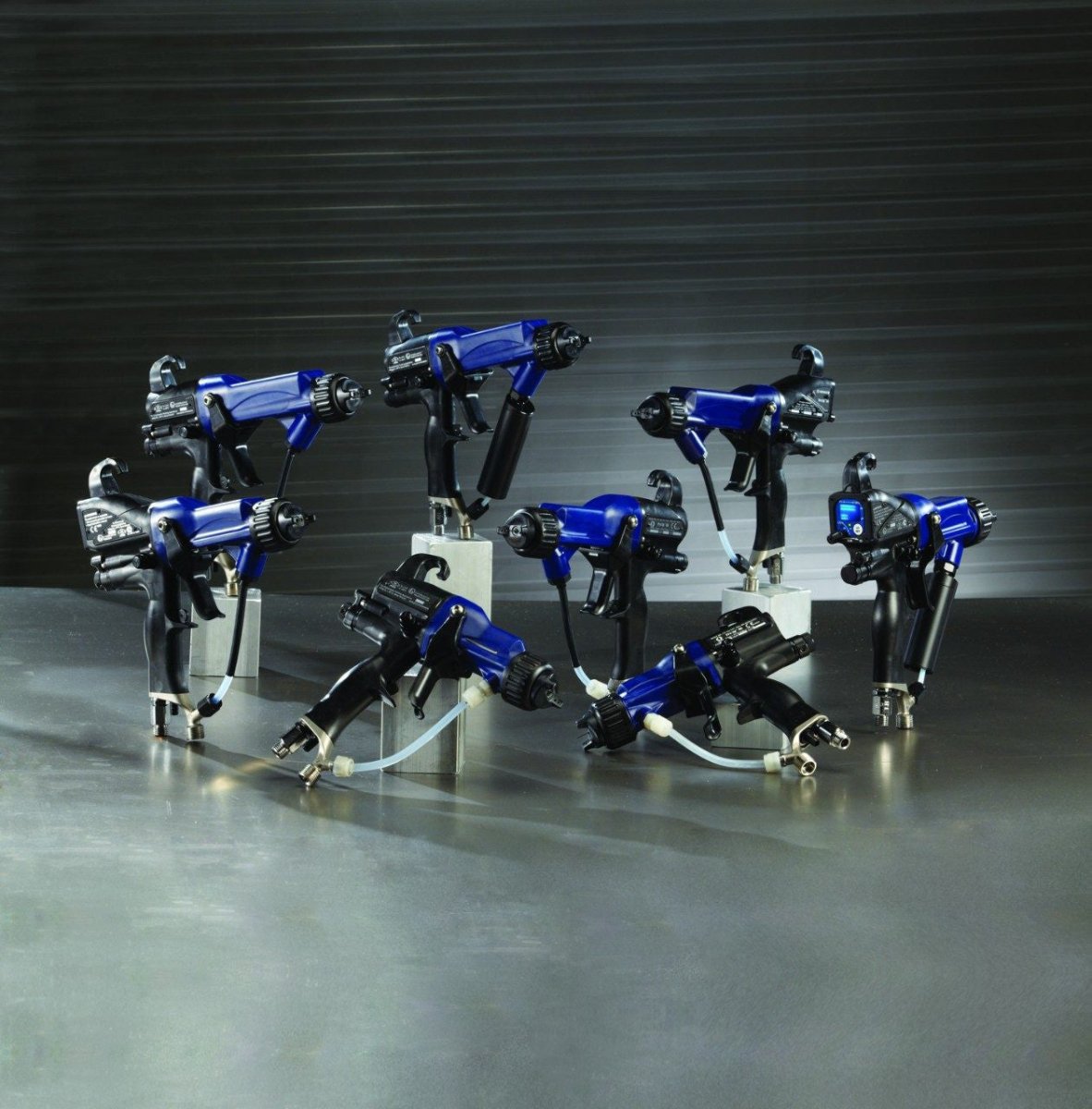

- Pro Xp40 Air Spray electrostatic gun line is available in Standard, High Conductivity and kV Booster models.
Graco Pro Xp 40kV - Features
- Internal power supply reduces operator fatigue with no heavy cords to slow them down
- Compact 40 kV Booster gun gives you the transfer efficiency of a 60 kV gun
- Easily adjust gun performance with large, simple-to-use, control knobs
- Made in the USA
- Smooth, curved ergonomic handle fits nicely in your hand for more comfortable spraying
- Rugged, dependable design supported by a three year warranty
- Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements
Downloads
![]() |
DATA SHEET |
![]() |
MANUAL |
![]() |
VIDEO - ANIMATION |
![]() |
VIDEO - OVERVIEW |
![]() |
VIDEO - CONTROLS OVERVIEW |
![]() |
|
![]() |
VIDEO - TRANSFER EFFICIENCY |
![]() |
VIDEO - SET UP AND PRIME |
![]() |
VIDEO - PARTS |
![]() |
VIDEO - DISASSEMBLY |
![]() |
VIDEO - ASSEMBLY |
Specifications
Maximum Working Fluid Pressure |
0.7 MPa, 7.0 bar
|
Maximum Working Air Pressure |
0.7 MPa, 7.0 bar
|
Minimum Air Pressure at Gun Inlet |
0.32 MPa, 3.2 bar
|
Maximum Fluid Operating Temperature |
48°C
|
Paint Resistivity Range |
3 megohm/cm to infinity. For a table of electrostatic results at different resistance levels, see instruction manual..
|
Air Inlet Fitting |
1/4 npsm(m) left-hand thread
|
Fluid Inlet Fitting |
3/8 npsm(m)
|
Output Voltage |
Pro Xp40 Models: 40 kVPro Xp60 Models: 60 kVPro Xp85 Models: 85 kV
|
Maximum Current Draw |
125 microamperes
|
Sound Power (measured per ISO Standard 9216) |
at 0.28 MPa, 2.8 bar: 90.4 dB(A)at 0.7 MPa, 7.0 bar: 105.4 dB(A)
|
Sound Pressure (measured 1 m from gun) |
at 0.28 MPa, 2.8 bar: 87.0 dB(A) at 0.7 MPa, 7.0 bar: 99.0 dB(A)
|
Wetted Parts |
PEEK, UHMWPE, FEP, PTFE, acetal, nylon, polyethylene
|
