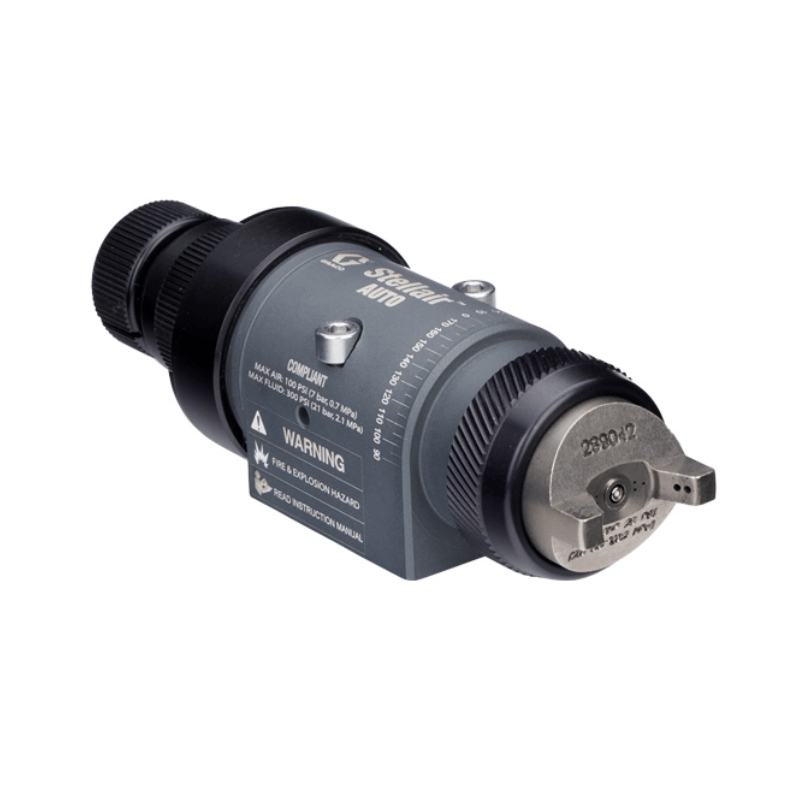

GRACO Stellair Automatic Air Spray Compliant Gun for General Industry, 0.055 1.4 mm Nozzle
SKU: 25F183GRACO Stellair Automatic Air Spray Compliant Gun for General Industry, 0.055 1.4 mm Nozzle
Regular price
$1,815.00 AUD
Sale price
$1,815.00 AUD
Regular price
Unit price
per
Inclusive of GST.
Shipping calculated at checkout.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
Other payment options
Graco Stellair Automatic Air Spray Compliant Gun for General Industry, 0.055 1.4 mm Nozzle
Overview
The compliant air spray gun produces stellar results for general industry applications using robots, reciprocators, flat line machines or other automated finishing technologies.
The automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.
- The compliant air spray reduces bounce back and overspray, while delivering a high finish quality and transfer efficiency.
- General industry air caps and nozzles produce a uniform, high quality spray pattern with a low atomising pressure.
- The precise fluid flow control click knob with a true zero set point ensures accurate paint thicknesses.
- The patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
- The one piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
- The direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.
Specifications
| BODY MATERIAL | Metal |
|---|---|
| COMPATIBLE MATERIAL | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stains, UV Coating, Waterborne |
| FLUID ORIFICE SIZE (IN) | 0.055 |
| FLUID ORIFICE SIZE (MM) | 1.4 |
| GUN TYPE | Compliant Gun |
| GUN WEIGHT (G) | 430 |
| GUN WEIGHT (LB) | 1 |
| MAXIMUM AIR PRESSURE (BAR) | 7 |
| MAXIMUM AIR PRESSURE (PSI) | 100 |
| MAXIMUM FLUID TEMPERATURE (°C) | 49 |
| MAXIMUM FLUID TEMPERATURE (°F) | 120 |
| MINIMUM AIR INLET PRESSURE (BAR) | 3.4 |
| MINIMUM AIR INLET PRESSURE (PSI) | 50 |
| OVERALL HEIGHT (IN) | 1.9 |
| OVERALL HEIGHT (MM) | 48.3 |
| OVERALL LENGTH (IN) | 5.9 |
| OVERALL LENGTH (MM) | 150 |
| OVERALL WIDTH (IN) | 1.63 |
| OVERALL WIDTH (MM) | 41.4 |
| APPLICATION | General |
| TYPE | Auto Gun |
| APPLICATOR TYPE | Automatic |
| NEEDLE TIP MATERIAL | PEEK |
| FLUID ADJUSTMENT KNOB | Optional |
| SOUND POWER LEVEL (DB(A)) | 87.47 |
| SOUND PRESSURE LEVEL (DB(A)) | 77.56 |
| MAXIMUM FLUID WORKING PRESSURE (PSI) | 300 |
| MAXIMUM FLUID WORKING PRESSURE (MPA) | 2.1 |
| MAXIMUM FLUID WORKING PRESSURE (BAR) | 21 |
| MAXIMUM FLOW RATE (OZ/MIN) | 18 |
| MAXIMUM AIR PRESSURE (MPA) | 0.7 |
| MINIMUM AIR INLET PRESSURE (MPA) | 0.34 |
| GUN MODEL | Stellair |
| MANIFOLD TYPE | Not Included |
| NOZZLE SIZE (IN) | 0.055 |
| NOZZLE SIZE (MM) | 1.4 |
| GUN_SERIES | Automatic |
