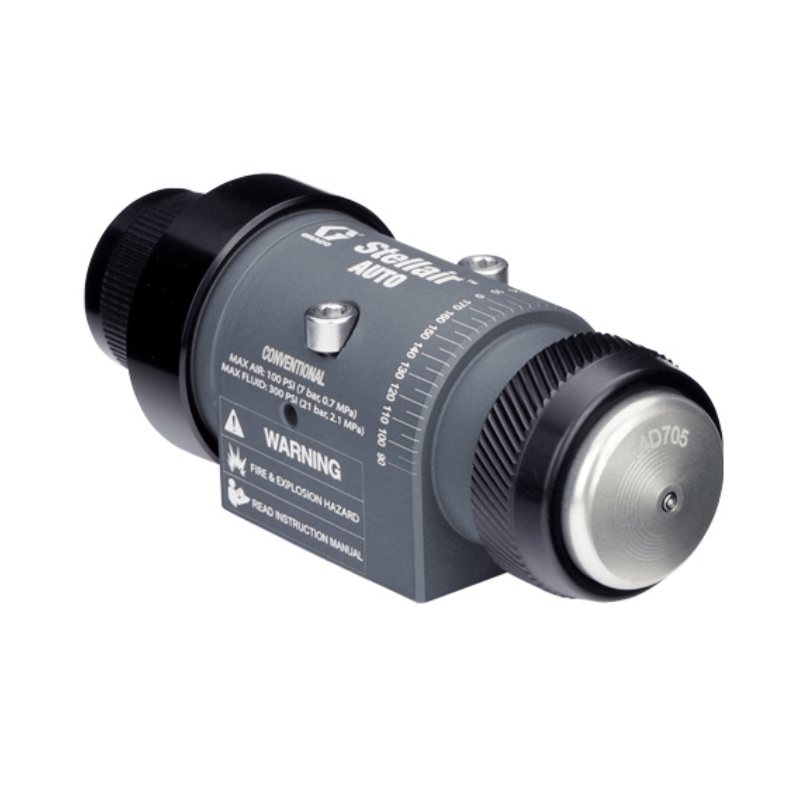

GRACO Stellair Automatic Air Spray Conventional Gun for Air Brush, 0.042 Nozzle
SKU: 25F208GRACO Stellair Automatic Air Spray Conventional Gun for Air Brush, 0.042 Nozzle
Regular price
$1,705.00 AUD
Sale price
$1,705.00 AUD
Regular price
Unit price
per
Inclusive of GST.
Shipping calculated at checkout.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
Other payment options
Graco Stellair Automatic Air Spray Conventional Gun for Air Brush, 0.042 Nozzle
Overview
The conventional air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
The automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.
- Conventional is the most widely used air spray method, producing Class A, automotive finish quality.
- The air brush air cap delivers a round spray pattern ideal for precise, small surface area spraying. The ability to control pattern size reduces overspray.
- The patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
- The one piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
- Its small and light size does not weigh down or wear out robot arms, reciprocators or flat line machines.
- The direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.
Specifications
| BODY MATERIAL | Metal |
|---|---|
| COMPATIBLE MATERIAL | Adhesives, Sealants |
| FLUID ORIFICE SIZE (IN) | 0.042 |
| FLUID ORIFICE SIZE (MM) | 1.10 |
| GUN TYPE | Conventional Gun |
| GUN WEIGHT (G) | 430 |
| GUN WEIGHT (LB) | 1 |
| MAXIMUM AIR PRESSURE (BAR) | 7 |
| MAXIMUM AIR PRESSURE (PSI) | 100 |
| MAXIMUM FLUID TEMPERATURE (°C) | 49 |
| MAXIMUM FLUID TEMPERATURE (°F) | 120 |
| MINIMUM AIR INLET PRESSURE (BAR) | 3.4 |
| MINIMUM AIR INLET PRESSURE (PSI) | 50 |
| OVERALL HEIGHT (IN) | 1.9 |
| OVERALL HEIGHT (MM) | 48.3 |
| OVERALL LENGTH (IN) | 5.10 |
| OVERALL LENGTH (MM) | 129.5 |
| OVERALL WIDTH (IN) | 1.63 |
| OVERALL WIDTH (MM) | 41.4 |
| APPLICATION | Air Brush |
| TYPE | Auto Gun |
| APPLICATOR TYPE | Automatic |
| NEEDLE TIP MATERIAL | PEEK |
| FLUID ADJUSTMENT KNOB | Optional |
| SOUND POWER LEVEL (DB(A)) | 88.82 |
| SOUND PRESSURE LEVEL (DB(A)) | 78.91 |
| MAXIMUM FLUID WORKING PRESSURE (PSI) | 300 |
| MAXIMUM FLUID WORKING PRESSURE (MPA) | 2.1 |
| MAXIMUM FLUID WORKING PRESSURE (BAR) | 21 |
| MAXIMUM FLOW RATE (OZ/MIN) | 14 |
| MAXIMUM AIR PRESSURE (MPA) | 0.7 |
| MINIMUM AIR INLET PRESSURE (MPA) | 0.34 |
| GUN MODEL | Stellair |
| MANIFOLD TYPE | Not Included |
| NOZZLE SIZE (IN) | 0.042 |
| NOZZLE SIZE (MM) | 1.10 |
| GUN_SERIES | Automatic |
