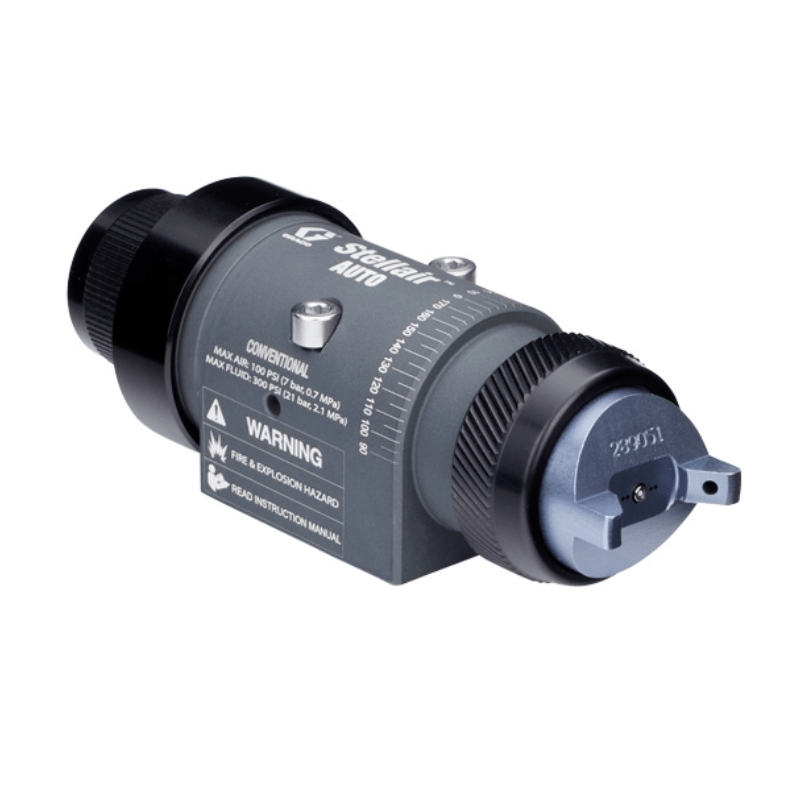

Graco Stellair Automatic Air Spray Conventional Gun 25F210
SKU: 25F210Graco Stellair Automatic Air Spray Conventional Gun 25F210
Regular price
$1,705.00 AUD
Sale price
$1,705.00 AUD
Regular price
Unit price
per
Inclusive of GST.
Shipping calculated at checkout.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
Other payment options
The Basics
The Conventional air spray gun delivers stellar results when applying adhesive material as part of a robotic, reciprocator, flat line or other automated finishing system.
The automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.
- Conventional is the most widely used air spray method, producing Class A, automotive finish quality.
- The adhesive air cap is designed for spraying waterborne and solvent borne adhesives and sealants.
- The patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
- The one piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
- Its small and light size does not weigh down or wear out robot arms, reciprocators or flat line machines.
- The direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.
| BODY MATERIAL | Metal |
|---|---|
| COMPATIBLE MATERIAL | Ceramics, Fast-Set, Solventborne Paints, Stains, UV Coating, Waterborne |
| FLUID ORIFICE SIZE (IN) | 0.051 |
| FLUID ORIFICE SIZE (MM) | 1.3 |
| GUN TYPE | Conventional Gun |
| GUN WEIGHT (G) | 430 |
| GUN WEIGHT (LB) | 1 |
| MAXIMUM AIR PRESSURE (BAR) | 7 |
| MAXIMUM AIR PRESSURE (PSI) | 100 |
| MAXIMUM FLUID TEMPERATURE (°C) | 49 |
| MAXIMUM FLUID TEMPERATURE (°F) | 120 |
| MINIMUM AIR INLET PRESSURE (BAR) | 3.4 |
| MINIMUM AIR INLET PRESSURE (PSI) | 50 |
| OVERALL HEIGHT (IN) | 1.9 |
| OVERALL HEIGHT (MM) | 48.3 |
| OVERALL LENGTH (IN) | 5.0999999999999801 |
| OVERALL LENGTH (MM) | 129.5 |
| OVERALL WIDTH (IN) | 1.63 |
| OVERALL WIDTH (MM) | 41.4 |
| APPLICATION | Adhesive |
| TYPE | Auto Gun |
| APPLICATOR TYPE | Automatic |
| NEEDLE TIP MATERIAL | PEEK |
| FLUID ADJUSTMENT KNOB | N/A |
| SOUND POWER LEVEL (DB(A)) | 88.82 |
| SOUND PRESSURE LEVEL (DB(A)) | 78.91 |
| MAXIMUM FLUID WORKING PRESSURE (PSI) | 300 |
| MAXIMUM FLUID WORKING PRESSURE (MPA) | 2.1 |
| MAXIMUM FLUID WORKING PRESSURE (BAR) | 21 |
| MAXIMUM FLOW RATE (OZ/MIN) | 18 |
| MAXIMUM AIR PRESSURE (MPA) | 0.7 |
| MINIMUM AIR INLET PRESSURE (MPA) | 0.34 |
| GUN MODEL | Stellair |
| MANIFOLD TYPE | Not Included |
| NOZZLE SIZE (IN) | 0.051 |
| NOZZLE SIZE (MM) | 1.3 |
| GUN_SERIES | Automatic |
