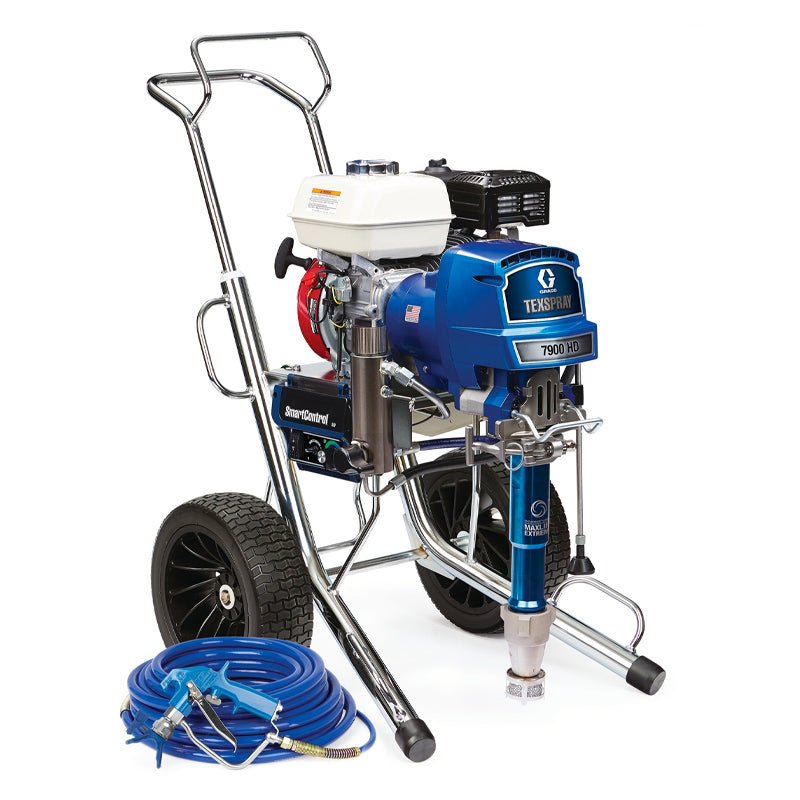

GRACO GMAX II 7900 HD 3-in-1 IronMan Series Gas Airless Sprayer
SKU 17E843
$14,589.00
$18,200.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
The GMAX II 7900 HD airless texture sprayer delivers the highest performance for the biggest jobs. With maximum flow and extreme durability, this sprayer does it all — skim coat in a Level 5 finish, drywall mud in a variety of finishes, all paints and primers and other heavy coatings.
Features
Features
- Endurance Vortex MaxLife Extreme Piston Pump
- The longest durability & life
- Breakthrough Vortex Rotating Piston Technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Longest life packings and piston rod
- 3X pump rod life
- Maximum versatility no matter what you’re spraying
- Long Life ceramic and stainless steel balls included for maximum versatility
- MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- SmartControl 3.0
- Consistent spray fan & pressure control
- Ideal for low overspray applications with the lowest dead band at any pressure
- Precision Advantage Drive
- The longest lasting drive
- Improved joist conditions with extremely quiet operation
- Lifetime Warranty
- ProConnect 2 Pump Replacement System
- Eliminate costly downtime
- Exchange pump in minutes
- No tools, pins or parts to lose
- Flat Proof Tires
- Never have a flat again
- Tires can’t be punctured by nails, screws, or any sharp debris
- LED Display
- Easy-to-read display provides quick reference to show:
- Pressure read-out
- Job/lifetime/gallon counter
- Self-diagnostics
- Easy-to-read display provides quick reference to show:
- Honda® GX Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Crushproof Inlet Strainer
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
- Additional Features:
- Rugged, Durable Cart Design
- Heavy-Duty Prime Valve
- Easy Out Pump Filter
- WatchDog Pump Protection System
Specifications
| COMPATIBLE MATERIAL | Stains, Oil, Lacquer, Primers, Fillers, Acrylics, Interior Emulsions, Exterior Emulsions, Latex, Plaster, Anti-Corrosive Paints, Fire-Retardant Paint, Intumescent |
|---|---|
| COMPATIBLE REPLACEMENT PUMP | 17H837 |
| CONVERTIBLE | Non-Convertible |
| ENGINE BRAND | Honda |
| ENGINE SIZE (HP) | 6.5 |
| ENGINE SIZE (KW) | 4.85 |
| FEATURES | Endurance Vortex MaxLife Extreme Pump, MaxFlo 2, SmartControl 3.0, Advantage Drive, ProConnect 2, Flat Proof Tires, LED Display, Honda Engine, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, Easy Out Filter, WatchDog |
| FLUID INLET SIZE (IN) | 1-5/16 |
| FLUID INLET SIZE (MM) | 33.34 |
| FLUID INLET THREAD TYPE | UN-2A |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPSM |
| FRAME CONFIGURATION | Hi-Boy |
| HOSE INLET DIAMETER (CM) | 0.9525 |
| HOSE INLET DIAMETER (IN) | 3/8 |
| HOSE INLET DIAMETER (MM) | 9.525 |
| HOSE REEL TYPE | Hose Rack |
| INCLUDES | Heavy-Duty Blue Texture Gun, Todas las unidades se envían completas y listas para pulverizar: con pistola 289605 HD Blue Texture, PAA517 + boquilla LTX427 + LTX531, 246215 Guardia RAC X™, manguera 240797 BlueMax™ II (3/8" x 15m), manguera flexible 277249 BlueMax™ II (1/4" x 0,9m), 238049 TSL™ (118 ml)., Heavy-Duty Blue 텍스처 건, RAC X LTX 427 喷嘴, RAC X LTX 427 スプレーチップ, RAC X LTX 427 Spray Tip, RAC X LTX 427 스프레이 팁, RAC X LTX 531 喷嘴, RAC X LTX 531 スプレーチップ, RAC X LTX 531 Spray Tip, RAC X LTX 531 스프레이 팁, RAC X 喷嘴座, RAC X ガード, RAC X Guard, RAC X 가드, 3/8 英寸 x 50 英尺 BlueMax II 无气软管, 3/8 インチ x50ftBlueMaxII エアレスホース, 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 50 ft BlueMax II 에어리스 호스, 1/4 英寸 x 3 英尺 BlueMax II 无气快接软管, 1/4 インチ x3ftBlueMaxII エアレス手元ホース, 1/4 in x 3 ft BlueMax II Airless Whip Hose, 1/4 in x 3 ft BlueMax II 에어리스 휩 호스 |
| INLET PAINT STRAINER | 8 Mesh Stainless Steel Screen |
| MAXIMUM FLOW RATE (GPM) | 2.2 |
| MAXIMUM FLOW RATE (L/MIN) | 8.33 |
| MAXIMUM HOSE LENGTH (FT) | 200 |
| MAXIMUM HOSE LENGTH (M) | 60 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 96 |
| MAXIMUM TIP SIZE (IN) | 0.048 |
| MAXIMUM TIP SIZE GUN 1 (IN) | 0.048 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MAXIMUM WORKING PRESSURE (KPA) | 22700 |
| POWER RATING (HP) | 6.5 |
| POWER SOURCE | Gas |
| POWER RATING (KW) | 4.85 |
| POWER RATING (W) | 4847 |
| MAXIMUM WORKING PRESSURE (MPA) | 22.8 |
| PRESSURE CONTROL TYPE | SmartControl 3.0 |
| OVERALL WIDTH (MM) | 620 |
| MODEL | GMAX II HD |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| OVERALL HEIGHT (CM) | 98.6 |
| OVERALL HEIGHT (IN) | 40.5 |
| WEIGHT (KG) | 80 |
| WEIGHT (LB) | 175 |
| OVERALL HEIGHT (MM) | 986 |
| OVERALL LENGTH (CM) | 96.8 |
| OVERALL WIDTH (IN) | 24.4 |
| OVERALL LENGTH (IN) | 38.1 |
| SERIES | 7900 |
| OVERALL LENGTH (MM) | 1026 |
| OVERALL WIDTH (CM) | 62 |
| PUMP TYPE | Endurance Vortex |
| TYPE | Airless Sprayer |
| SPRAY GUN TYPE | HD Blue Texture Gun |
| SPRAY TYPE | Airless |
| MAXIMUM WORKING PRESSURE (KG/CM²) | 22.7 |
| WETTED MATERIAL | Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| MAXIMUM FLUID WORKING PRESSURE (PSI) | 3300 |
| FLUID HOSE INSIDE DIAMETER (IN) | 1/4 |
| OUTLET PAINT FILTER | 60 Mesh Stainless Steel Screen |
| PUMP SLEEVE MATERIAL | MaxLife |
| PUMP MOUNT TYPE | ProConnect 2 |
| PUMP ROD TYPE | MaxLife Extreme |
| NUMBER OF GUNS | 1 |
| FILTER MESH SIZE | 60 |
| MAXIMUM TIP SIZE GUN 2 (IN) | 0.035 |
| RECOMMENDED ANNUAL USAGE | Up to 1,000 gallons per week |
| MAXIMUM TIP SIZE GUN 3 (IN) | 0.027 |
| MAXIMUM TIP SIZE GUN 4 (IN) | 0.023 |
| POWER RATING (CC) | 200 |
| PRODUCT SERIES | IronMan |
