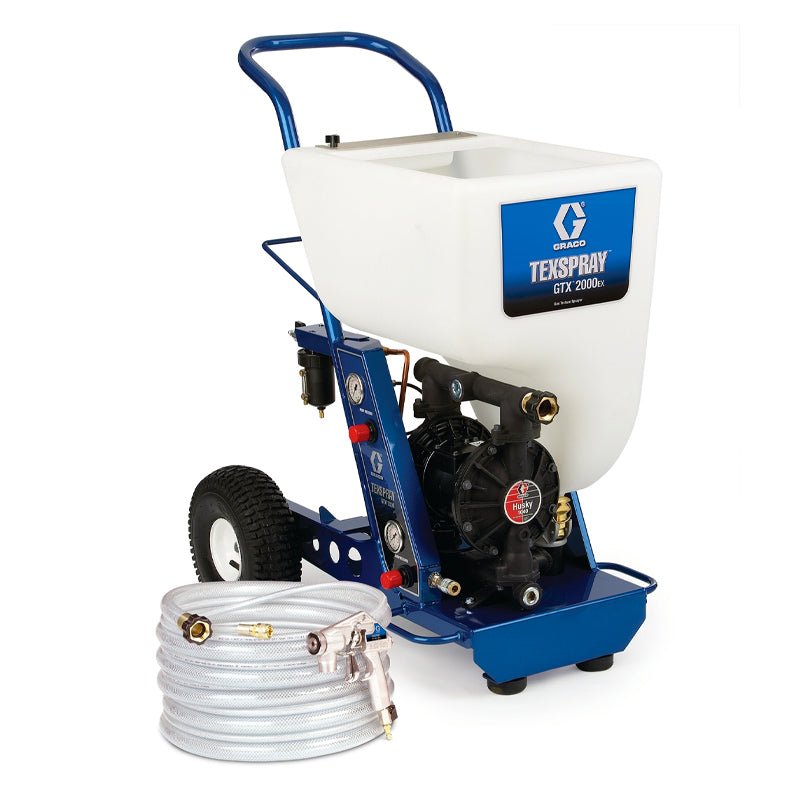

GRACO TexSpray GTX 2000EX Air-Powered
- Found a better deal? Message us to price match.
- Spread the cost with LeaseGO. .
Dispatch options
GO stock or Melbourne supplier stock
Australia-wide delivery
Delivery to your job site
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
The Graco TexSpray GTX 2000EX is a highly portable, air-powered texture system for smooth materials and those with fine aggregates, suiting drywall muds, deck coatings and exterior aggregate acrylic and elastomeric finishes. Powered by an external air compressor, it works fast on large interior surfaces or exterior aggregate finishes on large commercial jobs. A Husky 1040 double diaphragm pump delivers texture rates to 4.0 gpm, the heavy-duty trigger gun handles heavy mud and larger aggregate, and the 17-gallon hopper gives long spray time. Separate pump and gun air controls, a skip-bond material and air hose and on-board air filtration round out the system, which handles simulated acoustic, orange peel, fine splatter, splatter, knockdown, textured acrylics and elastomerics, and EIFS and synthetic stucco finish coats.
Features
Husky 1040 Pump: Job-proven double diaphragm pump delivers texture rates to 4.0 gpm from a durable high-output 1 inch pump.
Trigger Gun: Air spray heavy-duty trigger gun with oversized fluid passages pumps heavy mud and larger aggregate, with quick nozzle changes via extra-coarse gun head threads.
17-Gallon Hopper: The largest 17-gallon hopper gives longer spray time and removes with no tools for easy cleanup.
Air Controls: Separate pump and gun air controls produce precise, consistent and repeatable texture finishes.
Skip-Bond Hose: Material and air hoses are permanently bonded for easy handling, with an oversized grip and no-tools hose connection.
Air Filtration: On-board filtration removes moisture build-up to keep the sprayer running at optimal performance.
Texture Applications: Sprays simulated acoustic (popcorn), orange peel, fine splatter, splatter, knockdown, textured acrylics and elastomerics, and EIFS and synthetic stucco finish coats.
Included accessories
Specifications
| Compatible Material | Primers, Stains, Acrylics, Enamel, Latex, Interior Paint, Exterior Paint |
|---|---|
| Features | Large Capacity Hopper, On-Board Air Filtration, Separate Pump/Gun Air Controls |
| Includes | Heavy-Duty Air Spray Trigger Gun, 1 in x 25 ft Bonded Materia/Airl Hose, 3 mm, 4 mm, 6 mm, 8 mm, 10 mm, 12 mm Nozzles |
| Maximum Flow Rate (L/min) | 15.1 |
| Maximum Hose Length (m) | 30 |
| Maximum Working Pressure (MPa) | 0.8 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (kg/cm²) | 22.7 |
| Minimum Generator Power (W) | 5000 |
| Model | TexSpray GTX |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Length (cm) | 66 |
| Overall Length (mm) | 558.8 |
| Overall Width (cm) | 61 |
| Overall Width (mm) | 610.4636 |
| Phase | 1 |
| Power Rating (HP) | 2.2 |
| Power Rating (kW) | 1.65 |
| Power Source | Air |
| Pump Type | Husky Double Diaphragm Pump |
| Series | 2000EX |
| Standards Met | CE Certified |
| Type | Airless Sprayer |
| Weight (kg) | 50 |
| Wetted Material | Acetal, Aluminum, Brass, Nitrile Rubber, PVC, Polyethylene, Stainless Steel, UHMWPE, Zinc-Plated Carbon Steel |
Manuals
- GRACO TexSpray GTX 2000EX Air-Powered Texture Sprayer 257030 Operations Manual 313384EN-B
- GRACO TexSpray GTX 2000EX Air-Powered Texture Sprayer 257030 Repairs Manual 313385EN-D
- GO Instruction Parts List Graco Air Filters Lubricators and Kits 308169EN-W
- GO Operation Parts Graco Texture Spray Gun 3A3373EN-C
- Graco Manual Husky 1040 AODD Pumps 308479EN-ZAJ
