GRACO Texture Spray Air Hopper Gun
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts

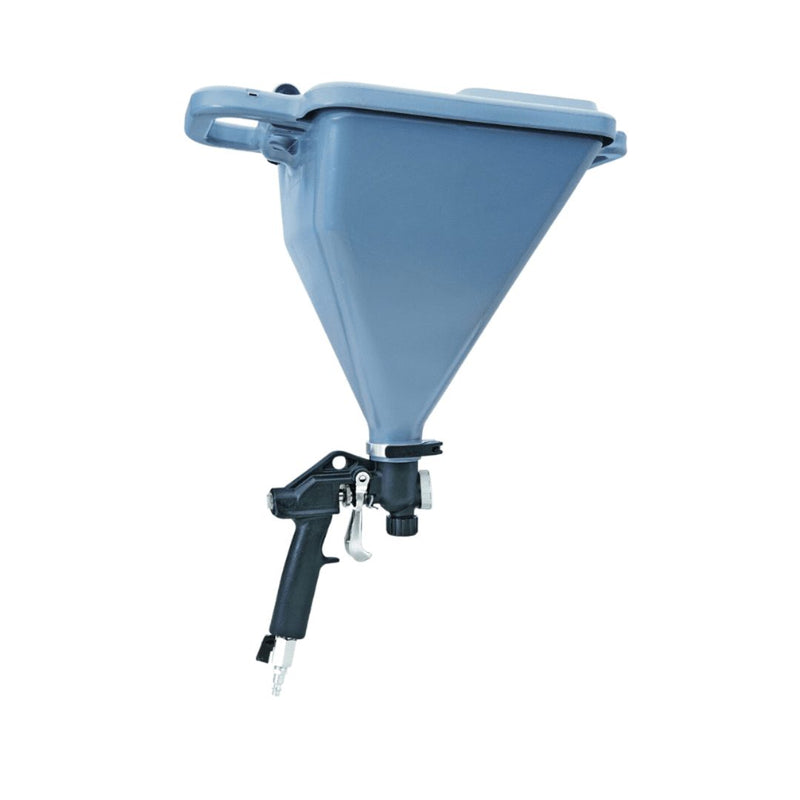

The Graco Texture Spray Air Hopper Gun has a double-handle, lightweight design that provides maximum support and control for ceiling, wall and floor applications. It sprays acoustics, drywall mud, waterproofing materials, pool-deck sealant, stucco and most gravity-fed materials.
The angled 1.5 gallon (5.7 litre) hopper allows longer spraying between refills, and handles on both sides rotate 180 degrees for control when spraying ceilings, walls and floors. A durable metal trigger with a conveniently located adjustment lets you fine tune fluid output, and the exclusive hopper clamp attaches the hopper to the gun with no tools.
Features
Lightweight design: weighs up to 35% less than comparable models to reduce operator fatigue.
Angled 1.5 gallon capacity: a 5.7 litre hopper for longer spraying periods before refills.
Handles on both sides: rotate 180 degrees for maximum control when spraying ceilings, walls and floors.
Comfort grip: distributes weight evenly for better balance and reduced fatigue.
Durable metal trigger: a conveniently located adjustment fine tunes fluid output for a precise, consistent finish.
Exclusive hopper clamp: attaches the hopper to the gun with no tools needed.
Included accessories
Specifications
| COMPATIBLE MATERIAL | Water-Based Material |
|---|---|
| FEED TYPE | Pressure Feed |
| FOR USE WITH | Texture Sprayer |
| GUN ACTIVATION | Manual |
| GUN TYPE | Airless Gun |
| GUN WEIGHT (G) | 990 |
| GUN WEIGHT (KG) | 0.99 |
| GUN WEIGHT (LB) | 2.1875 |
| GUN WEIGHT (OZ) | 35 |
| MAXIMUM AIR PRESSURE (BAR) | 9 |
| MAXIMUM AIR PRESSURE (KPA) | 900 |
| MAXIMUM AIR PRESSURE (PSI) | 125 |
| MAXIMUM FLUID PRESSURE (BAR) | 4.9 |
| MAXIMUM FLUID PRESSURE (KPA) | 490 |
| MAXIMUM FLUID PRESSURE (PSI) | 70 |
| MODEL | TexSpray |
| OVERALL HEIGHT (CM) | 60.96 |
| OVERALL HEIGHT (IN) | 24 |
| OVERALL HEIGHT (MM) | 609.6 |
| OVERALL LENGTH (CM) | 45.085 |
| OVERALL LENGTH (IN) | 17.75 |
| OVERALL LENGTH (MM) | 450.85 |
| OVERALL WIDTH (CM) | 27.94 |
| OVERALL WIDTH (IN) | 11 |
| OVERALL WIDTH (MM) | 279.4 |
| SPRAY PATTERN | Flat |
| TRIGGER LOCK | Locking |
| TYPE | Spray Gun |
| PRODUCT TYPE | Spray Gun |
| GUN INCLUDED | 1 |
| APPLICATOR TYPE | Manual |
| MAXIMUM FLUID PRESSURE (MPA) | 0.49 |
| MAXIMUM AIR PRESSURE (MPA) | 0.9 |
| MAXIMUM AIR INLET PRESSURE (BAR) | 9 |
| MAXIMUM AIR INLET PRESSURE (KPA) | 900 |
| MAXIMUM AIR INLET PRESSURE (PSI) | 130.5 |
| MAXIMUM AIR INLET PRESSURE (MPA) | 0.9 |
