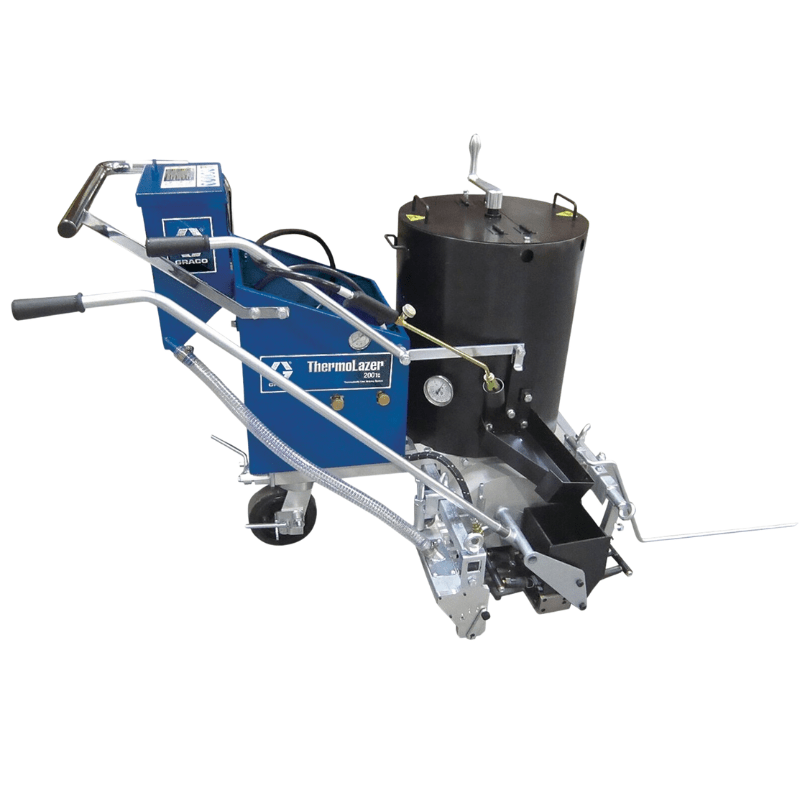

GRACO ThermoLazer 200TC Thermoplastic Striping System FlexDie
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The ThermoLazer 200TC is the premiere solution for smaller thermoplastic striping jobs. The FlexDie is built with the same precision and functionality as its big brother, the SmartDie II. Solid steel construction, built-in die adjustment and direct flames will give you great lines every time.
The smaller, more portable ThermoLazer 200TC is ideal for striping contractors who already have premelt kettle systems.
Features
Features
FlexDie
- Delivers excellent line quality with exclusive deep-die, all steel construction and a no-tools change out design
200 lb Material Kettle
- Easy-to-fill cylindrical kettle allows for precise heating of thermoplastic material, and its no-tool change-out design lets you switch colors fast
40 lb Bead Hopper
- Perfectly matched to the material kettle with a superior flow design
Direct Heat System
- Direct flames and an on-board hand torch deliver maximum heat, resulting in maximum material flow
Tri-Wheel System
- Dual solid front and single solid rear wheels provide smooth, quiet operation
Adjustable Operator Handle
- Handle easily adjusts to multiple heights
Adjustable Front Pointer
- Easily adjusts for all size dies for following all marks and creating straight lines
Specifications
| COMPATIBLE SURFACES | Pavement |
|---|---|
| MAXIMUM WORKING PRESSURE (BAR) | 17.24 |
| MAXIMUM WORKING PRESSURE (KPA) | 172.4 |
| MAXIMUM WORKING PRESSURE (PSI) | 250 |
| MODEL | ThermoLazer |
| NUMBER OF COLORS | One Color |
| NUMBER OF HOPPERS | 1 |
| SERIES | 200TC |
| COMPATIBLE MATERIAL | Thermoplastics |
| TYPE | Walk-Behind Line Striper |
Warranty
Manual
- GO Manual Operation Graco ThermoLazer 200 200TC 300TC and ThermoLazer ProMelt Pavement Marking Part1 3A1319EN-K
- GO Manual Operation Graco ThermoLazer 200 200TC 300TC and ThermoLazer ProMelt Pavement Marking Part2 3A1319EN-K
- Graco Manual Repair ThermoLazer 200 200TC 300TC and Thermolazer ProMelt Pavement Marking Systems 3A1320EN-L
- Graco Manual Parts ThermoLazer 200 200TC 300TC and ThermoLazer ProMelt 3A1321EN-R
Catalogue
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
