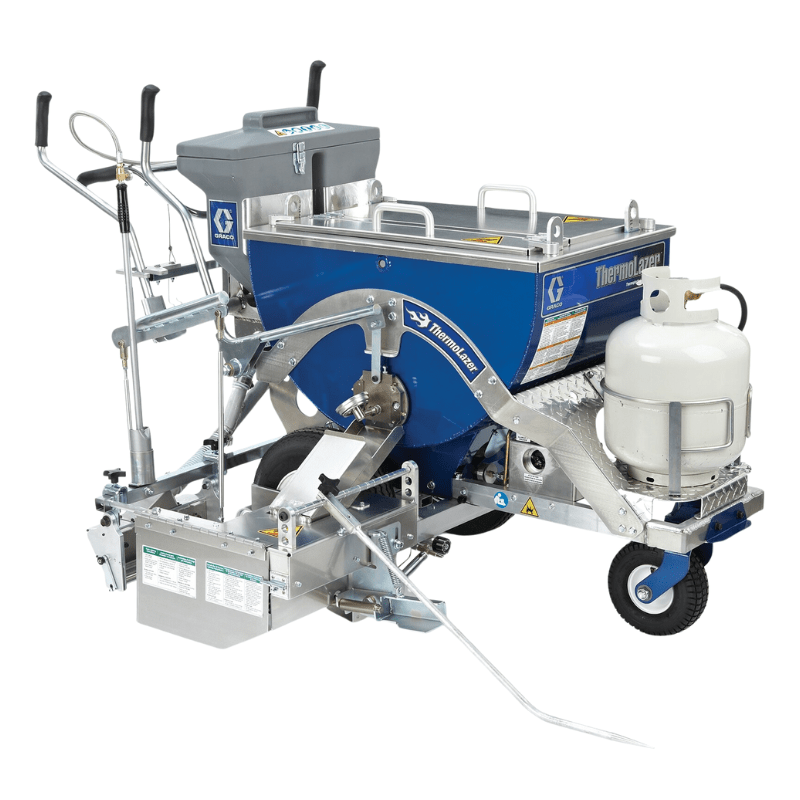

GRACO ThermoLazer 300TC Thermoplastic Striping System
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Graco’s ThermoLazer 300TC is one of the most productive and easy to use thermoplastic handliners in the industry. The system’s 135 kg material kettle allows for more striping and less time spent refilling with material, while its EasyGlide Wheel Mount System makes this unit as easy to manoeuvre as a LineLazer.
Features
Features
Direct Heat System
- Direct flames and an on-board hand torch deliver maximum heat, resulting in maximum material flow
Smart Die II System
- Fast change-out system - Hardened steel dies with a built-in mil thickness adjustment system
- Use with or without heat - Allows you to optimise your striping in all weather conditions
- "Floats" with the surface - Puts the thermoplastic where you want it for superior line quality
- External heat system - 4-Torch die heat system keeps it hot
135 kg Material Kettle
- Easy-to-fill kettle with PaddleMax Dual mixer for improved mixing
40 kg Split Bead Hopper System
- Perfectly matched to the material kettle with a superior flow design
- No-tool system allows fast and easy line width changes
Easy Glide Wheel Mount System
- Front mounted caster along with dual rear pneumatic air-filled tyres makes handling safe and as easy to manoeuvre as a LineLazer striper
Bead Dispense System
- No-tool system allows fast and easy line width changes
- 30 cm dispenser with 2.5 increments allows you to "dial-in" the drop rate
Fat Track Front Swivel Wheel
- Proven front caster wheel system makes turning fast and easy
- Manoeuvre curves better
- No need to "muscle" it while moving
Optional LineDriver System
- Double your striping productivity and get straighter lines with less fatigue
- Move between jobs without having to push
- Patented Dual Pedal System - Multiple positions allow for simple forward and reverse
Specifications
| COMPATIBLE SURFACES | Pavement |
|---|---|
| GUN ACTIVATION | Manual |
| INCLUDES | SmartDie II |
| MAXIMUM WORKING PRESSURE (BAR) | 17.24 |
| MAXIMUM WORKING PRESSURE (KPA) | 172.4 |
| MAXIMUM WORKING PRESSURE (PSI) | 250 |
| MODEL | ThermoLazer |
| NUMBER OF COLORS | One Color |
| NUMBER OF HOPPERS | 1 |
| SERIES | 300TC |
| COMPATIBLE MATERIAL | Thermoplastics, Glass Beads, Alkyds |
| WEIGHT (KG) | 134 |
| WEIGHT (LB) | 295 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas |
| BEAD TANK SIZE (LB) | 295 |
Warranty
Manual
- GO Manual Operation Graco ThermoLazer 200 200TC 300TC and ThermoLazer ProMelt Pavement Marking Part1 3A1319EN-K
- GO Manual Operation Graco ThermoLazer 200 200TC 300TC and ThermoLazer ProMelt Pavement Marking Part2 3A1319EN-K
- Graco Manual Parts ThermoLazer 200 200TC 300TC and ThermoLazer ProMelt 3A1321EN-R
- Graco Manual Double Bead Box Kit 3A0004EN-D
- Graco Manual Repair ThermoLazer 200 200TC 300TC and Thermolazer ProMelt Pavement Marking Systems 3A1320EN-L
- GracoManual Operation Smart Die II - FlexDie 3A1738EN-K
