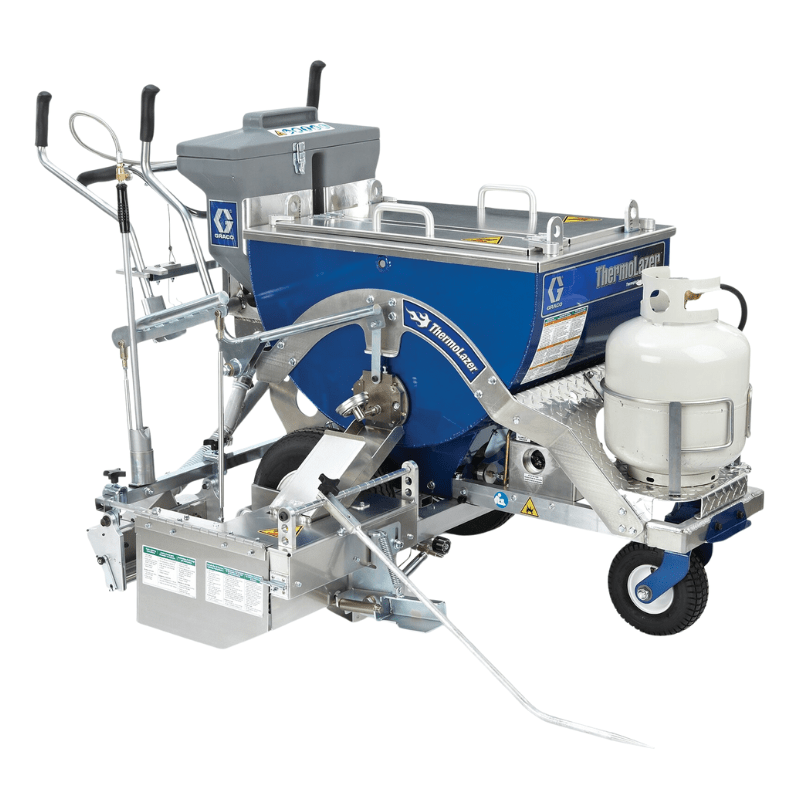

GRACO ThermoLazer 300TC Thermoplastic Striping System 4 in SmartDie II
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Graco's ThermoLazer 300TC is one of the most productive and easy to use thermoplastic handliners in the industry. The system's 300 lb material kettle allows for more striping and less time spent refilling with material, while its EasyGlide Wheel Mount System makes this unit as easy to maneuver as a LineLazer.
Features
Features
Easy Glide Wheel Mount System
- Front mounted caster along with dual rear pneumatic air-filled tires makes handling safe and as easy to maneuver as a LineLazer striper
Tri-Flame Die Heat System
- Reliable, safe system to keep die ready to use
Bead Dispense System
- No-tool system allows fast and easy line width changes
Split Bead Hopper System
- Split hopper holds over 90 lb of beads
- Simple conversion to double drop bead system with optional kit
Fat Track Front Swivel Wheel
- Proven front caster wheel system makes turning fast and easy
- Maneuver curves better
- No need to "muscle" it while moving
Optional Line Driver System
- Get higher productivity and straighter lines with less fatigue
- Move between jobs without having to push
- Patented Dual Pedal System—Multiple positions allow for simple forward and reverse
Specifications
| COMPATIBLE SURFACES | Pavement |
|---|---|
| INCLUDES | 4 in SmartDie II |
| MAXIMUM WORKING PRESSURE (BAR) | 17.24 |
| MAXIMUM WORKING PRESSURE (KPA) | 172.4 |
| MAXIMUM WORKING PRESSURE (PSI) | 250 |
| MODEL | ThermoLazer |
| NUMBER OF COLORS | One Color |
| NUMBER OF HOPPERS | 1 |
| SERIES | 300TC |
| COMPATIBLE MATERIAL | Thermoplastics, Glass Beads, Alkyds |
| WEIGHT (KG) | 133.8 |
| WEIGHT (LB) | 295 |
| TYPE | Walk-Behind Line Striper |
