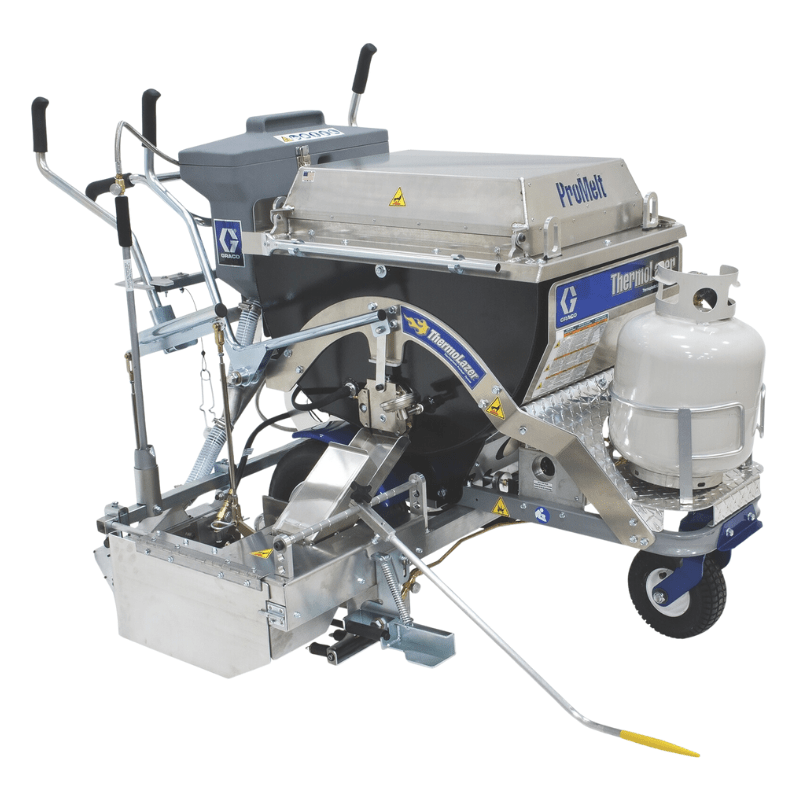

GRACO ThermoLazer ProMelt Thermoplastic Striping System
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The ThermoLazer ProMelt unit is your solution for first-time stripers wanting to get into the highly profitable thermoplastic marking business, as it lets you avoid the additional costs of adding a premelt kettle truck or trailer, thus saving you time and labour, resulting in more money in your pocket. Graco's breakthrough technology allows you to melt 135 kg of thermoplastic on board in less than an hour.
Features
Features
Pro Melt Technology
- 4 Chamber Melting System—More surface area to melt thermoplastic fast
- 100,000 BTUs—Faster melt time means more jobs get done everyday
Smart Die II System
- Fast change-out system—Hardened steel dies with mil thickness adjustment system built in
- Use with or without heat—Allows you to optimize your striping in all weather conditions
- "Floats" with the surface—Puts the thermoplastic where you want it for superior line quality
- External Heat System—4-torch die heat system keeps it hot
135 kg Material Kettle
- Easy-to-fill kettle with PaddleMax Dual mixer for improved mixing
40 kg Split Bead Hopper System
- Perfectly matched to the material kettle with a superior flow design
- No-tool system allows fast and easy line width changes
Ease-Z-Steer Handle Bar System
- Makes turning and handling as simple as a LineLazer system
- Adjustable handle bar for users of all sizes
Bead Dispense System
- No-tool system allows fast and easy line width changes
- 30 cm dispenser with 2.5 increments allows you to "dial-in" the drop rate
Ergonomic Design
- Easier to use and almost effortless to push/pull, just like the proven LineLazer design
Optional LineDriver System
- Double your striping productivity and get straighter lines with less fatigue
- Move between jobs without having to push
- Patented Dual Pedal System - Multiple positions allow for simple forward and reverse
Specifications
| COMPATIBLE SURFACES | Pavement |
|---|---|
| GUN ACTIVATION | Manual |
| INCLUDES | SmartDie II |
| MAXIMUM WORKING PRESSURE (BAR) | 17.24 |
| MAXIMUM WORKING PRESSURE (KPA) | 172.4 |
| MAXIMUM WORKING PRESSURE (PSI) | 250 |
| MODEL | ThermoLazer |
| NUMBER OF COLORS | One Color |
| NUMBER OF HOPPERS | 1 |
| SERIES | ProMelt |
| COMPATIBLE MATERIAL | Thermoplastics, Glass Beads, Alkyds |
| WEIGHT (KG) | 157 |
| WEIGHT (LB) | 345 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas |
| BEAD TANK SIZE (LB) | 345 |
Warranty
Manuals
- GO Manual Operation Graco ThermoLazer 200 200TC 300TC and ThermoLazer ProMelt Pavement Marking Part1 3A1319EN-K
- GO Manual Operation Graco ThermoLazer 200 200TC 300TC and ThermoLazer ProMelt Pavement Marking Part2 3A1319EN-K
- Graco Manual Parts ThermoLazer 200 200TC 300TC and ThermoLazer ProMelt 3A1321EN-R
- Graco Manual Double Bead Box Kit 3A0004EN-D
- Graco Manual Repair ThermoLazer 200 200TC 300TC and Thermolazer ProMelt Pavement Marking Systems 3A1320EN-L
- GracoManual Operation Smart Die II - FlexDie 3A1738EN-K
