Enquire For Price

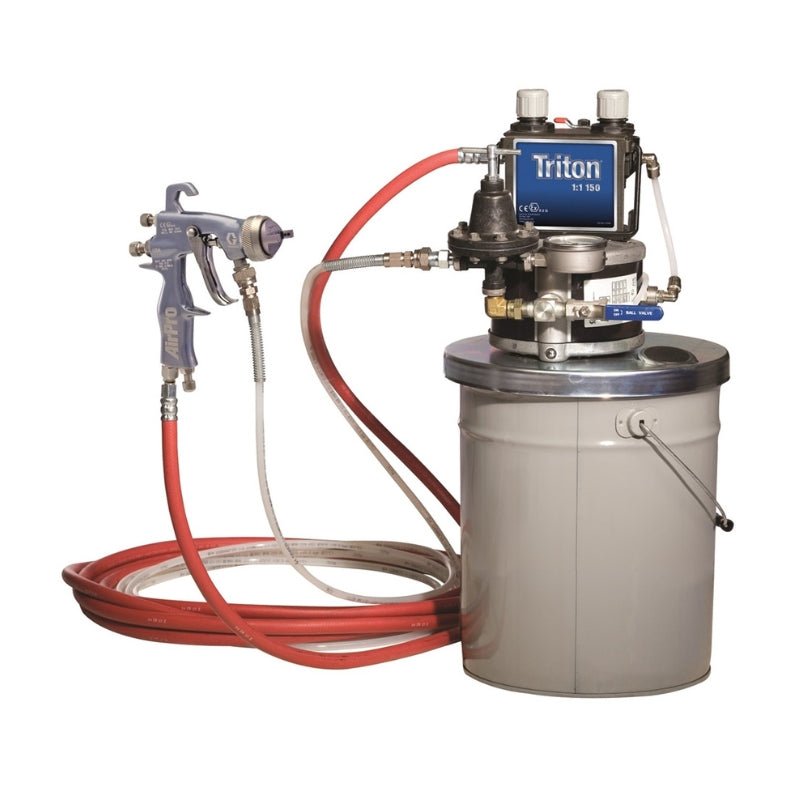

GRACO Triton Alum Spray Package AirPro HVLP Gun for Metal
SKU: 233470GRACO Triton Alum Spray Package AirPro HVLP Gun for Metal
Regular price
$4,389.00 AUD
Sale price
$4,389.00 AUD
Regular price
Unit price
per
Inclusive of GST.
Shipping calculated at checkout.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
Other payment options
Graco Triton Alum Spray Package AirPro HVLP Gun for Metal
Overview
Air-operated diaphragm spray package designed for the finishing market. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.
- Superior finish quality for conventional, HVLP and compliant or electrostatic applications
- Supplies up to 35% extra air flow to gun for superior atomization
- Saves material and time during flushing, priming and color changes
- Delivers a consistent spray pattern and uniform film thickness
- Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids
Specifications
| COMPATIBLE MATERIAL | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers |
|---|---|
| FEED TYPE | Suction Hose |
| FLUID INLET SIZE (CM) | 1.905 |
| FLUID INLET SIZE (IN) | 3/4 |
| FLUID INLET SIZE (MM) | 19.05 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (CM) | 0.9525 |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPT |
| INCLUDES | 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator |
| MAXIMUM AIR INLET PRESSURE (BAR) | 7 |
| MAXIMUM AIR INLET PRESSURE (KPA) | 700 |
| MAXIMUM AIR INLET PRESSURE (PSI) | 100 |
| MAXIMUM FLOW RATE (GPM) | 8.5 |
| MAXIMUM FLOW RATE (L/MIN) | 32 |
| MAXIMUM WORKING PRESSURE (BAR) | 7 |
| MAXIMUM WORKING PRESSURE (KPA) | 700 |
| MAXIMUM WORKING PRESSURE (PSI) | 100 |
| MOUNT LOCATION | Pail Mount |
| SERIES | 308 |
| SPRAYER TYPE | Air Spray |
| WEIGHT (KG) | 10 |
| WEIGHT (LB) | 22 |
| SPRAY TYPE | Air-Powered |
| MOUNT TYPE | Pail Mount |
| MODEL | Triton |
| APPLICATION | Metal |
| TYPE | Air-Powered Sprayer |
| PRODUCT TYPE | Spray Package |
| TECHNOLOGY TYPE | HVLP |
| GUN INCLUDED | 1 |
| POWER SOURCE | Air |
| PRESSURE TYPE | Low Pressure |
| PUMP TYPE | Pneumatic Diaphragm Pump |
| GUN TYPE | Air Spray |
| GUN MODEL | AirPro |
| PUMP RATIO | 1:1 |
| GUN TECHNOLOGY | HVLP |
Features
