Triton is an air-operated diaphragm spray package that applies a high-quality, decorative finish to wood and metal parts. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.

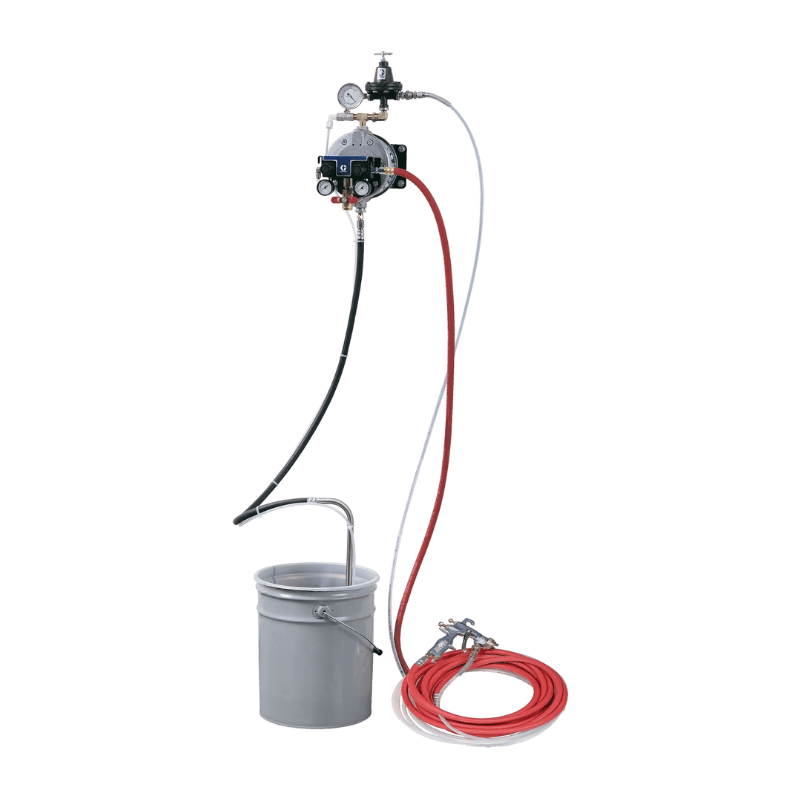

GRACO Triton SST Spray Pkg AirPro Conventional
SKU 289624
$4,840.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Features
Features
Specifications
| COMPATIBLE MATERIAL | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers, Waterborne |
|---|---|
| FLUID INLET SIZE (CM) | 1.905 |
| FLUID INLET SIZE (IN) | 3/4 |
| FLUID INLET SIZE (MM) | 19.05 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (CM) | 0.9525 |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPT |
| INCLUDES | 25 ft Air Hose, 25 ft Fluid Hose, Applicator |
| MAXIMUM AIR INLET PRESSURE (BAR) | 7 |
| MAXIMUM AIR INLET PRESSURE (KPA) | 700 |
| MAXIMUM AIR INLET PRESSURE (PSI) | 100 |
| MAXIMUM FLOW RATE (GPM) | 8.5 |
| MAXIMUM FLOW RATE (L/MIN) | 32 |
| MAXIMUM WORKING PRESSURE (BAR) | 7 |
| MAXIMUM WORKING PRESSURE (KPA) | 700 |
| MAXIMUM WORKING PRESSURE (PSI) | 100 |
| MOUNT LOCATION | Wall Mount |
| SERIES | 308 |
| SPRAYER TYPE | Air Spray |
| WEIGHT (KG) | 10.9 |
| WEIGHT (LB) | 24 |
| SPRAY TYPE | Air-Powered |
| MOUNT TYPE | Wall Mount |
| MODEL | Triton |
| APPLICATION | Waterborne |
| TYPE | Air-Powered Sprayer |
| PRODUCT TYPE | Spray Package |
| TECHNOLOGY TYPE | Conventional |
| GUN INCLUDED | 1 |
| POWER SOURCE | Air |
| PRESSURE TYPE | Low Pressure |
| PUMP TYPE | Pneumatic Diaphragm Pump |
| GUN TYPE | Air Spray |
| GUN MODEL | AirPro |
| PUMP RATIO | 1:1 |
| GUN TECHNOLOGY | Conventional |
Manuals
- Graco Triton Diaphragm Pump Manual 309303EN-W
- Graco Triton 1-1 Spray Packages Manual 309304EN-R 2
- Graco Triton 1-1 Operation Manual 309305EN-H
- Graco PRO Xs3 Xs4 Spray Guns Manual 309292EN-W
- Graco Fluid Pressure Regulators Parts Manual 308325EN-E
- Graco Fluid Pressure Regulators Manual 307212EN-ZAJ
- Graco AirPro Pressure Feed Airspray Gun Manual 312414EN-U
- Graco Agitator Kit Manual 309306EN-A 2
