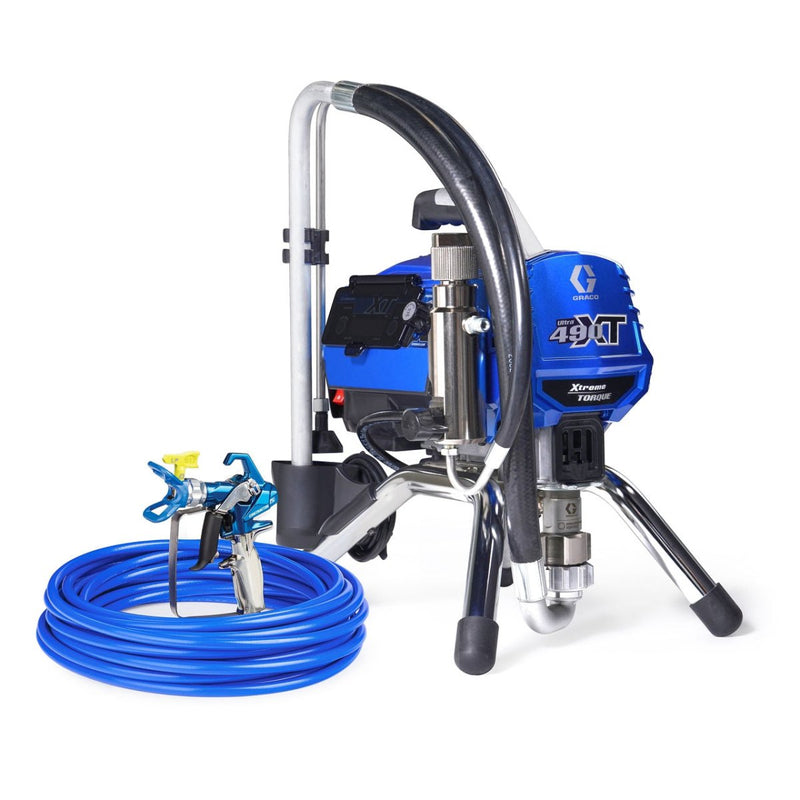

GRACO Ultra 490 XT Stand Electric Airless Sprayer
SKU 19D531
$4,809.00
$5,650.00
Tax included. Shipping calculated at checkout.
Quantity
In Stock
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Frequently bought together
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Product details
Built for the work it does.
The Ultra 490 XT delivers an airless spray experience like no other. Made in the USA with a 1.3 HP Xtreme Torque motor, Next Generation Rapid-Response Pressure Control, elevated performance, and the longest life pump in its class. The 490 XT is sure to become a staple in your fleet.
Xtreme Productivity. Xtreme Reliability. Graco's Xtreme Torque Midsize Electric sprayers make it easier to get more work done in a day with increased flow and production rates.
Features
- Xtreme Torque Motor: The first motor ever designed specifically for airless spray and made by GRACO. This motor offers 15x more torque than traditional motors and up to 10x quieter operation giving you both power without versatility with residential / night works.
- Rapid-Response™ Control w/ LED Digital Display: Eliminates pressure fluctuations by continuously monitoring pressure 60 times per motor revolution. Instantly adjusts motor speed to eliminate 75% of pressure fluctuations for a Perfect Airless Finish™
- Endurance Vortex Pump: Operates in a spiral motion, wearing out the seals and packings evenly increasing the pumps lifespan and reducing the need for repairs.
- TurboClean™: Cleans the pump 3X faster with 1/2 the fluid.
- Watchdog™ Pump Protection: Intelligent auto-shut-off feature activates when the sprayer runs out of paint, safeguarding the pump and maintaining consistent performance
- Dual Performance Modes:
- Low Pressure Mode: Optimised performance
range to eliminate overspray and improve finish. - High Pressure Mode: Offers maximum
performance for extended hose lengths
and difficult to atomise materials.
- Low Pressure Mode: Optimised performance
- Swivel Inlet Suction Hose: High-quality hose that stays submerged in the paint bucket and swivels for easy movement.
- Contractor PC Gun: Comes with the lightweight, cartridge needle technology, ergonomic spray gun with adjustable trigger for all-day comfort and repairability.
- BlueMax II Hose: Includes 15 Meters (50 feet) of 1/4 inch airless hose for plenty of reach.
Included accessories
Specifications
| MOTOR POWER RATING | 1.3 HP |
|---|---|
| MOTOR TYPE | Xtreme Torque Brushless DC |
| FLUID OUTLET THREAD TYPE | NPSM |
| FRAME CONFIGURATION | Stand |
| MAXIMUM FLOW RATE | 2.6 L/min | 0.7 G/min |
| SOUND POWER LEVEL | 87 dBa |
| SOUND PRESSURE LEVEL | 75 dBa |
| MAXIMUM TIP SIZE | 0.025 IN |
| MODEL | ULTRA 490 XT |
| MAXIMUM WORKING PRESSURE | 3300 PSI | 228 BAR |
| VOLTAGE | 230V |
| WEIGHT | 14.1 KG | 31 LB |
| PLUG TYPE | 230V ANZ |
| PUMP ROD TYPE | Hardened Steel (Chromex) |
| MINIMUM GENERATOR POWER | 3500 W |
Warranty
Data Sheet
Catalogue
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Watch on the job
Field videos & walkthroughs.
FAQs
Common questions.
What makes the Graco Ultra 490 XT different from older Ultra Max II models?
The new Ultra 490 XT represents a massive leap forward in sprayer technology, primarily due to its revolutionary 1.3 HP Xtreme Torque motor. This innovative brushless motor delivers fifteen times more torque than traditional motors while running at significantly lower speeds. Because of this high-efficiency design, the XT motor dramatically extends the overall lifespan of the machine and operates up to ten times quieter than previous generations, making it an absolute game-changer for noise-sensitive job sites.
What are the maximum flow rate and tip size for the Ultra 490 XT?
The Ultra 490 XT packs serious power into a highly portable frame, making it easier to push higher volumes of paint and get jobs done much faster. It boasts an impressive maximum flow rate of 2.6 litres per minute and can effortlessly support a maximum tip size of 0.025 inches. Like other professional Graco units, it operates at a maximum working pressure of 3300 PSI, giving you the versatility to spray heavier coatings and thicker exterior paints with complete ease.
How does the Rapid-Response Pressure Control work on the 490 XT?
The XT series introduces Graco's Next Generation Rapid-Response Pressure Control, which instantly adjusts the motor speed to virtually eliminate pressure fluctuations for a flawless, even finish. It features the industry's widest operating range, from as low as 50 PSI up to 3300 PSI, and includes two selectable performance modes. You can easily switch between a Low-Pressure Mode for maximum control and material savings on detail work, or a High-Pressure Mode for extreme performance and speed on heavy-duty applications.
What new maintenance features are included on the Ultra 490 XT?
The 490 XT is loaded with features to keep you spraying and minimise your downtime, including the Endurance Vortex pump that rotates automatically to extend its life, alongside the tool-less ProConnect replacement system. For your daily cleanup, it utilises the new TurboClean system, which cleans the pump up to six times faster while using half the amount of water or solvent. Additionally, it features WatchDog Pump Protection, which automatically shuts off the machine when your paint bucket is empty to prevent premature wear from dry pumping.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
