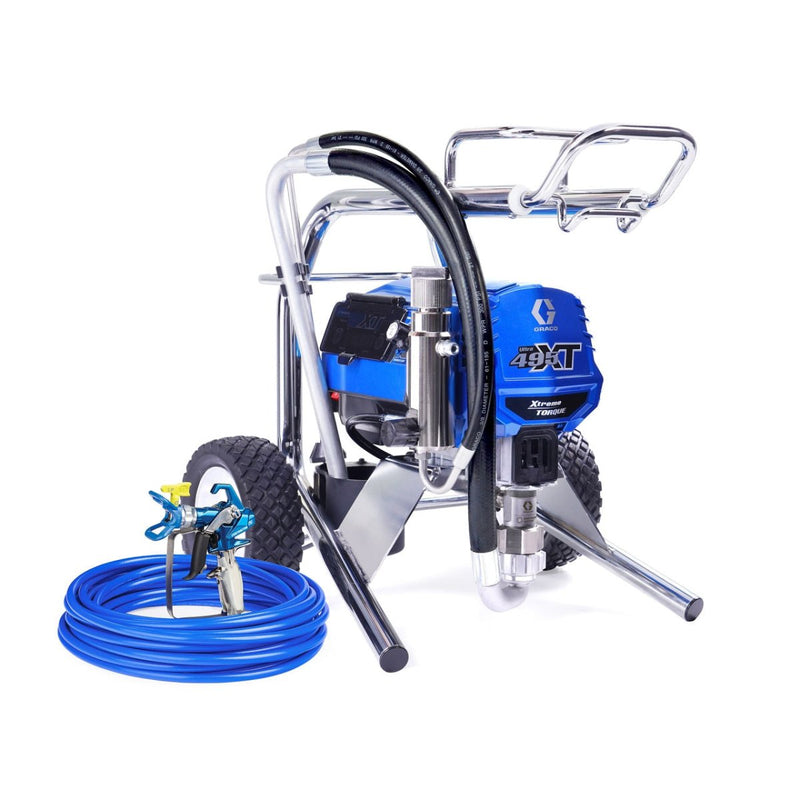

GRACO Ultra 495 XT Lo-Boy Electric Airless Sprayer
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Built for the work it does.
The Ultra 495 XT delivers an airless spray experience like no other. Made in the USA with a 1.7 HP Xtreme Torque motor, Next Generation Rapid-Response Pressure Control, elevated performance, and the longest life pump in its class. The 495 XT is sure to become a staple in your fleet.
Xtreme Productivity. Xtreme Reliability. Graco's Xtreme Torque Midsize Electric sprayers make it easier to get more work done in a day with increased flow and production rates.
Features
- Xtreme Torque Motor: The first motor ever designed specifically for airless spray and made by GRACO. This motor offers 15x more torque than traditional motors and up to 10x quieter operation giving you both power without versatility with residential / night works.
- Rapid-Response™ Control w/ LED Digital Display: Eliminates pressure fluctuations by continuously monitoring pressure 60 times per motor revolution. Instantly adjusts motor speed to eliminate 75% of pressure fluctuations for a Perfect Airless Finish™
- Endurance Vortex Pump: Operates in a spiral motion, wearing out the seals and packings evenly increasing the pumps lifespan and reducing the need for repairs.
- TurboClean™: Cleans the pump 3X faster with 1/2 the fluid.
- Watchdog™ Pump Protection: Intelligent auto-shut-off feature activates when the sprayer runs out of paint, safeguarding the pump and maintaining consistent performance
- Dual Performance Modes:
- Low Pressure Mode: Optimised performance
range to eliminate overspray and improve finish. - High Pressure Mode: Offers maximum
performance for extended hose lengths
and difficult to atomise materials.
- Low Pressure Mode: Optimised performance
- Swivel Inlet Suction Hose: High-quality hose that stays submerged in the paint bucket and swivels for easy movement.
- Contractor PC Gun: Comes with the lightweight, cartridge needle technology, ergonomic spray gun with adjustable trigger for all-day comfort and repairability.
- BlueMax II Hose: Includes 15 Meters (50 feet) of 1/4 inch airless hose for plenty of reach.
Included accessories
Specifications
| MOTOR POWER RATING | 1.7 HP |
|---|---|
| MOTOR TYPE | Xtreme Torque Brushless DC |
| FLUID OUTLET THREAD TYPE | NPSM |
| FRAME CONFIGURATION | Lo-Boy |
| MAXIMUM FLOW RATE | 3.0 L/min | 0.80 G/min |
| SOUND POWER LEVEL | 87 dBa |
| SOUND PRESSURE LEVEL | 75 dBa |
| MAXIMUM TIP SIZE | 0.027 IN |
| MODEL | ULTRA 495 XT |
| MAXIMUM WORKING PRESSURE | 3300 PSI | 228 BAR |
| VOLTAGE | 230V |
| WEIGHT | 25.4 KG | 56 LB |
| PLUG TYPE | 230V ANZ |
| PUMP ROD TYPE | Hardened Steel (Chromex) |
| MINIMUM GENERATOR POWER | 3500 W |
