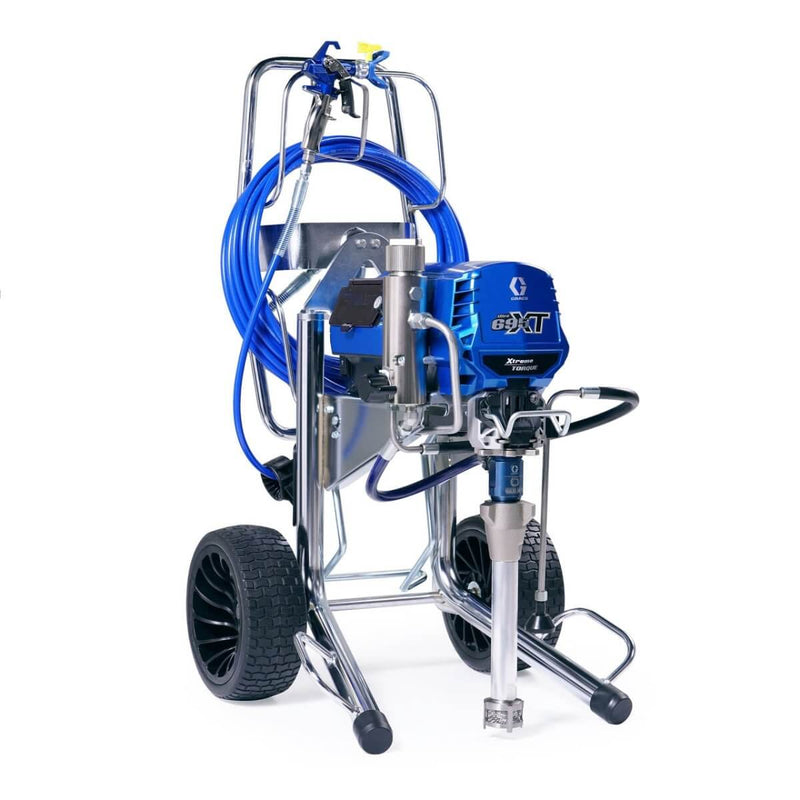

GRACO Ultra 695 XT Hi-Boy ProContractor Series Electric Airless Sprayer
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Built for the work it does.
The Ultra 695 XT ProContractor Series delivers an airless spray experience like no other. Made in the USA with a 2.1 HP Xtreme Torque motor, featuring Next Generation Rapid-Response Pressure Control, and an Endurance Vortex MAXLIFE pump. The 695 XT ProContractor is guaranteed to last!
Xtreme Production & Reliability. XT ProContractor Series electric airless sprayers are built specifically for professional contractors looking to increase production on the industry's most silent spraying platform. Complete with numerous time saving features like the retractable hose reel and the industry's longest life pumps, an XT ProContractor will keep you out of the shop, and on the job.
Features
Features
Xtreme Torque Motor Technology
- 15X more torque than traditional motors
- 8X more magnets provide unmatched power and performance
- 90% lower running speeds extend motors life
- 10X quieter
Rapid Response Control
- Instantly responds to deliver the best finish quality
- More performance across its full tip size range
- Industry's largest operating pressure range (50-3,300 psi)
SmartDisplay XT LED Display
- Allows for bluetooth connection to GRACO's Bluelink job-site management system

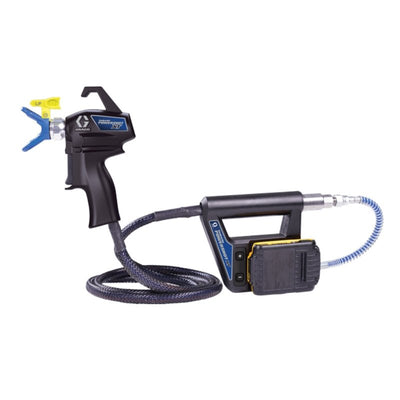

- Connects to the Contractor Powershot XT which allows for remote pressure control at your gun and removes pressure surges with the SmartStall™.
- Visible in even the toughest spraying conditions
Selectable Performance Modes
- Two selectable spray modes offer unique performance levels to boost efficiency on every job
- Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 - 2,000 psi)
- Use High Pressure mode for Xtreme Performance (500 – 3,300 psi)
QuikReel ™ Hose Management System
- Deploy and rewind up to 300 feet of hose in seconds without twisting, kinking or coiling
Endurance Vortex MAXLIFE Piston Pump with ProConnect
- Endurance Vortex MAXLIFE pump packings Lasts 6X longer than the standard models' pump.
- Includes ProConnect Pump Removal for fast on-the-job service
Flat Proof Tires
- These tires cannot be punctured by nails, screws or other sharp debris
Turbo Clean Cleaning System
- Industry’s fastest pump cleaning system
- Delivers 6X faster cleaning with 1/2 the water
- Convenient location
Watch Dog Pump Protection
- Prevents damage by shutting off pump when it's time to refill
Durable Filtration
- Easy Out Filter provides easy maintenance and less clogging
Easy Transport
- Only 31 lbs (Stand)
Gun, Hose and Tip Included
- Contractor PC Gun & RAC X LP 517 SwitchTip
Included accessories
Specifications
| MOTOR POWER RATING | 2.1 HP |
|---|---|
| MOTOR TYPE | Xtreme Torque Brushless DC |
| FLUID OUTLET THREAD TYPE | NPSM |
| FRAME CONFIGURATION | Hi-Boy |
| MAXIMUM FLOW RATE | 4.0 L/min | 1.05 G/min |
| SOUND POWER LEVEL | 77 dBa |
| SOUND PRESSURE LEVEL | 63 dBa |
| MAXIMUM TIP SIZE | 0.031 IN |
| MODEL | ULTRA 695 XT |
| MAXIMUM WORKING PRESSURE | 3300 PSI | 228 BAR |
| VOLTAGE | 230V |
| WEIGHT | 51 KG | 112 LB |
| PLUG TYPE | 230V ANZ |
| PUMP ROD TYPE | Maxlife |
| MINIMUM GENERATOR POWER | 3500 W |
Warranty
Data Sheet
Catalogue
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Field videos & walkthroughs.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
