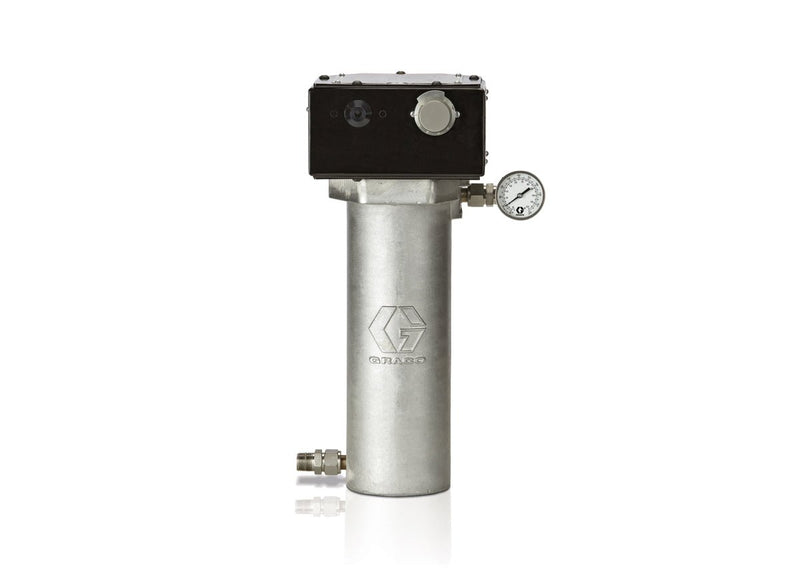

GRACO Viscon Fluid Heaters
SKU 245869
$5,720.00
Tax included. Shipping calculated at checkout.
Quantity
In Stock, Victoria Warehouse
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Overview
- High performance fluid heaters
- Provides excellent temperature conditioning for high solids coatings and high viscosity materials
- Graco's Viscon heaters maintain optimal temperatures to provide consistent control of fluid viscosity.
- With a wide temperature operating range, Viscon heaters are excellent for any coating, sealant, adhesive or lubricant you need to pump.
Features
Features
Viscon HP High Output Fluid Heaters
- Offers high pressure (7250 psi/500 bar) for use with most pumps
- Higher pressure for use with most pumps
- Excellent for high solids coatings, adhesives or resins
- 7/16 in (11 mm) diameter fluid passages
- Stainless steel design
- Available in standard or explosive atmosphere versions
- 7250 psi (500 bar, 50 MPa)
- Temperature operating range: 84 to 219°F (29 to 104°C)
Viscon HF Fluid Heaters for Explosive Atmospheres
- Developed to handle the highest viscosity coatings such as 100% solids epoxies coatings and epoxy fireproofing materials
- The patent-pending design has a triple-path spiral core that can be easily disassembled for cleaning.
- Increased flow capacity: The Viscon HF has over three (3) times more flow capacity compared to the standard Viscon HP heaters.
- Increased heat capacity: The Viscon HF heaters have 35% more wattage; 5400 watts compared to 4000W for the standard Viscon HP heaters.
- Available in manual thermostat or externally controlled versions.
- Cleanable and replaceable fluid core – repair instead of replace.
- 7250 psi (500 bar, 50 MPA) pressure rating – handles the highest pressure rating of Graco protective coating sprayers.
- Temperature operating range: 84 to 219°F (29 to 104°C)
- Same mounting configuration as standard Viscon HP heaters – Easy to retrofit onto existing equipment.
Specifications
Graco Viscon HF |
|
| U.S. |
Metric
|
| The heater can be used in the following environmental conditions: indoor use, 99% maximum relative humidity, pollution degree 2, installation category II, maximum ambient temperature 135° F (57° C). | |
| Maximum Working Pressure |
7250 psi (50 MPa, 500 bar)
|
| Voltage / Wattage / Current* |
See Models on page 2.
|
| Fluid Passage Heat Transfer Area |
210 in.² (1355 cm²)
|
| Fluid Passage Dimensions (3 parallel paths) |
Height: 0.41 in.
|
| Width: 0.32 in. | |
| Length: 3 x 48 in. | |
| Fluid Passage Equivalent Diameter |
0.72 in. (18.3 mm)
|
| Thermometer Range |
64 - 250°F (18 - 121°C)
|
| Wetted Parts |
Stainless Steel, Anodized Aluminum, Electroless Nickel-Plated Steel, PTFE
|
| Temperature Operating Range |
84 - 219°F (29 - 104°C)
|
| Weight |
51 lb (23.2 kg)
|
| RTD (Model 262853 only) |
1000 ohm, class B, 3-wire Connector: M8, 4-pin male
|
| Main supply fluctuation not to exceed 10%. |
