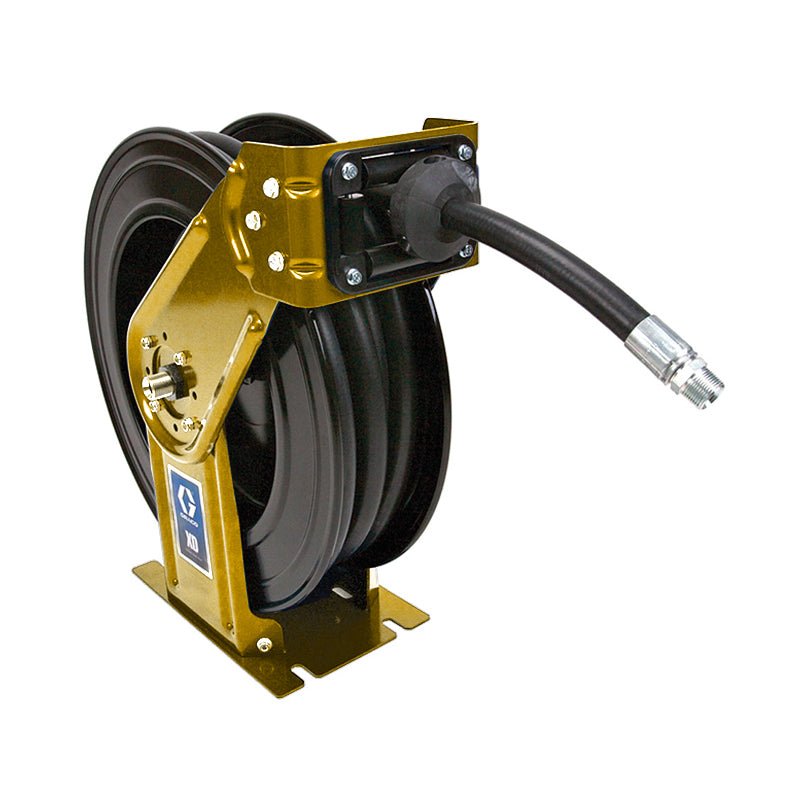

GRACO XD30 Hose Reels for Air/Water/Antifreeze/WWS
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).
Features
Features
Specifications
| COLOR | Yellow |
| DRY WEIGHT (LB) | 98 |
| HOSE INSIDE DIAMETER (IN) | 1/2 or 3/4 |
| HOSE INSIDE DIAMETER (MM) | 12.7 or 19.05 |
| HOSE LENGTH (FT) | 75 or 50 |
| HOSE LENGTH (M) | 23 or 15 |
| INLET SIZE (IN) | 1/2 or 3/4 |
| INLET SIZE (MM) | 12.7 or 19.05 |
| INLET THREAD TYPE | NPSM |
| MAXIMUM WORKING PRESSURE (PSI) | 300 |
| MOUNT LOCATION | Truck Mount, Bench Mount |
| OUTLET SIZE (IN) | 1/2 or 3/4 |
| OUTLET SIZE (MM) | 12.7 or 19.05 |
| OVERALL HEIGHT (IN) | 27.6 |
| OVERALL HEIGHT (MM) | 701 |
| OVERALL LENGTH (IN) | 25.96 |
| OVERALL LENGTH (MM) | 659 |
| OVERALL WIDTH (IN) | 9 |
| OVERALL WIDTH (MM) | 229 |
| SERIES | 30 |
| APPLICATION | Air, Water, Antifreeze, WWS |
| TYPE | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor, Outdoor |
| FRAME TYPE | Dual Pedestal |
| REEL THREAD TYPE | NPT |
| RECOMMENDED FLUID TYPE | Air, WWS, Water, Antifreeze |
| HOSE REEL TYPE | Reel with Hose |
| MODEL | XD |
