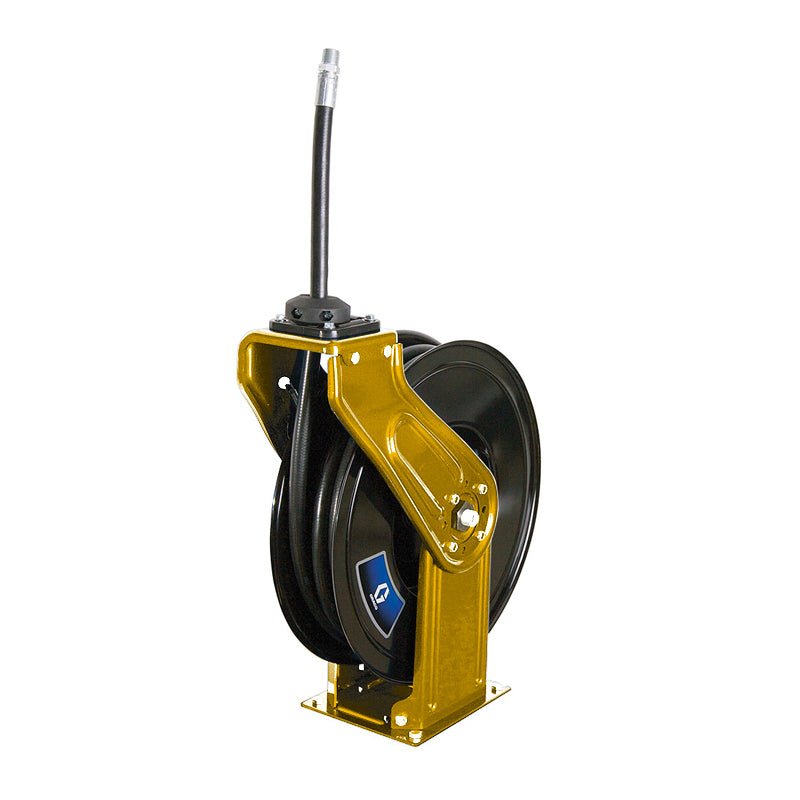

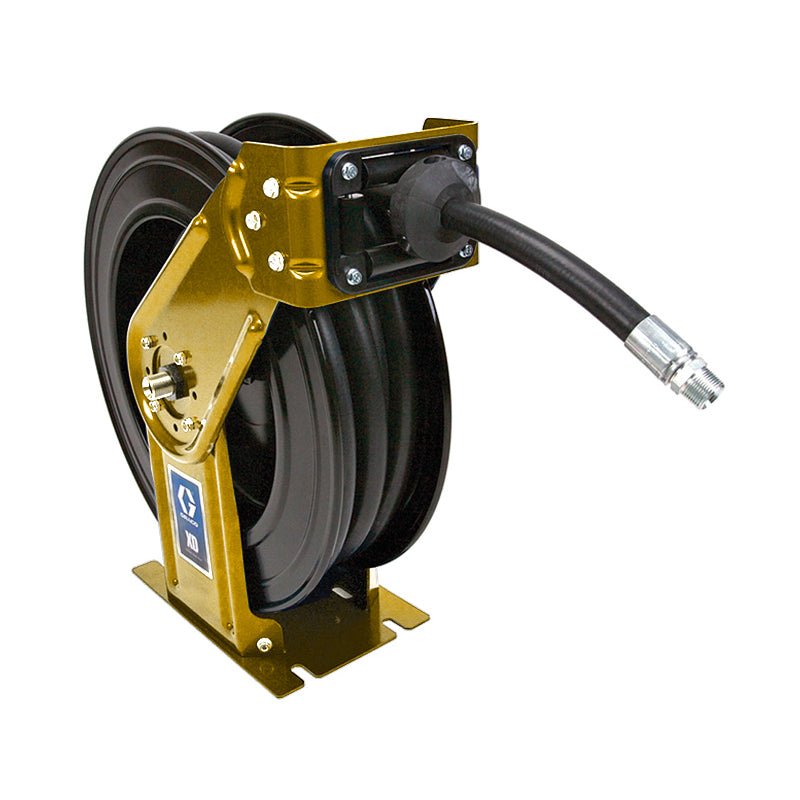

GRACO XD30 Hose Reels for Fuel/Evacuation

SKU: HSLE3F

GRACO XD30 Hose Reels for Fuel/Evacuation

$3,440.00 AUD
$3,440.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

View full details
GRACO XD30 Hose Reels for Fuel/Evacuation - GO Industrial - HSLE3F

GRACO XD30 Hose Reels for Fuel/Evacuation

$3,440.00 AUD
$3,440.00 AUD
Save $0
Sold out

Details

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

Typical Applications:

  • Heavy-duty truck dealers
  • Fleet maintenance
  • Mining maintenance
  • Public works garage
  • Construction vehicle maintenance
  • Heavy-duty mobile service trucks
  • Mining
  • Lube trucks

Compatible For:

  • Fuel
  • Combustible
  • Evacuation / Extraction

Features

  • Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models)
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

    • Graco XD30 Hose Reels for Fuel/Evacuation

    Overview

    Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • 3A0138EN-J - XD30 Series High Capacity Hose Reels Manual
    • Graco XD Series Hose Reels Data Sheet - GO Industrial

    Specifications

    COLOR Yellow
    DRY WEIGHT (LB) 98
    HOSE INSIDE DIAMETER (IN) 1
    HOSE INSIDE DIAMETER (MM) 25.4
    HOSE LENGTH (FT) 30
    HOSE LENGTH (M) 9
    INLET SIZE (IN) 3/4
    INLET SIZE (MM) 19.05
    INLET THREAD TYPE NPSM
    MAXIMUM WORKING PRESSURE (PSI) 125
    MOUNT LOCATION Truck Mount, Bench Mount
    OUTLET SIZE (IN) 1
    OUTLET SIZE (MM) 25.4
    OVERALL HEIGHT (IN) 27.6
    OVERALL HEIGHT (MM) 701
    OVERALL LENGTH (IN) 25.96
    OVERALL LENGTH (MM) 659
    OVERALL WIDTH (IN) 9
    OVERALL WIDTH (MM) 229
    SERIES 30
    APPLICATION Diesel Fuel
    TYPE Spring-Rewind Reel
    RECOMMENDED ENVIRONMENT Indoor, Outdoor
    FRAME TYPE Dual Pedestal
    REEL THREAD TYPE NPT
    RECOMMENDED FLUID TYPE Fuel, Combustible, Evac
    HOSE REEL TYPE Reel with Hose
    MODEL XD

      Features

    • Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
    • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
    • Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models)
    • Durable Finish - Baked-on enamel finish protects reel from corrosion
    • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications
