Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

Typical Applications:

  • Heavy-duty truck dealers
  • Fleet maintenance
  • Mining maintenance
  • Public works garage
  • Construction vehicle maintenance
  • Heavy-duty mobile service trucks
  • Mining
  • Lube trucks

Compatible For:

  • Grease
  • 3A0138EN-J - XD30 Series High Capacity Hose Reels Manual
  • Graco XD Series Hose Reels Data Sheet - GO Industrial
COLOR Yellow
DRY WEIGHT (LB) 98
HOSE INSIDE DIAMETER (IN) 3/8
HOSE INSIDE DIAMETER (MM) 9.525
HOSE LENGTH (FT) 75
HOSE LENGTH (M) 23
INLET SIZE (IN) 1/2
INLET SIZE (MM) 12.7
INLET THREAD TYPE NPSM
MAXIMUM WORKING PRESSURE (PSI) 4000
MOUNT LOCATION Truck Mount, Bench Mount
OUTLET SIZE (IN) 3/8
OUTLET SIZE (MM) 9.525
OVERALL HEIGHT (IN) 23.1
OVERALL HEIGHT (MM) 588
OVERALL LENGTH (IN) 22.12
OVERALL LENGTH (MM) 561.73
OVERALL WIDTH (IN) 9
OVERALL WIDTH (MM) 229
SERIES 30
APPLICATION Pressure Wash
TYPE Spring-Rewind Reel
RECOMMENDED ENVIRONMENT Indoor, Outdoor
FRAME TYPE Dual Pedestal
REEL THREAD TYPE NPT
RECOMMENDED FLUID TYPE Pressure Wash
HOSE REEL TYPE Reel with Hose
MODEL XD
  • Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
  • Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models)
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop

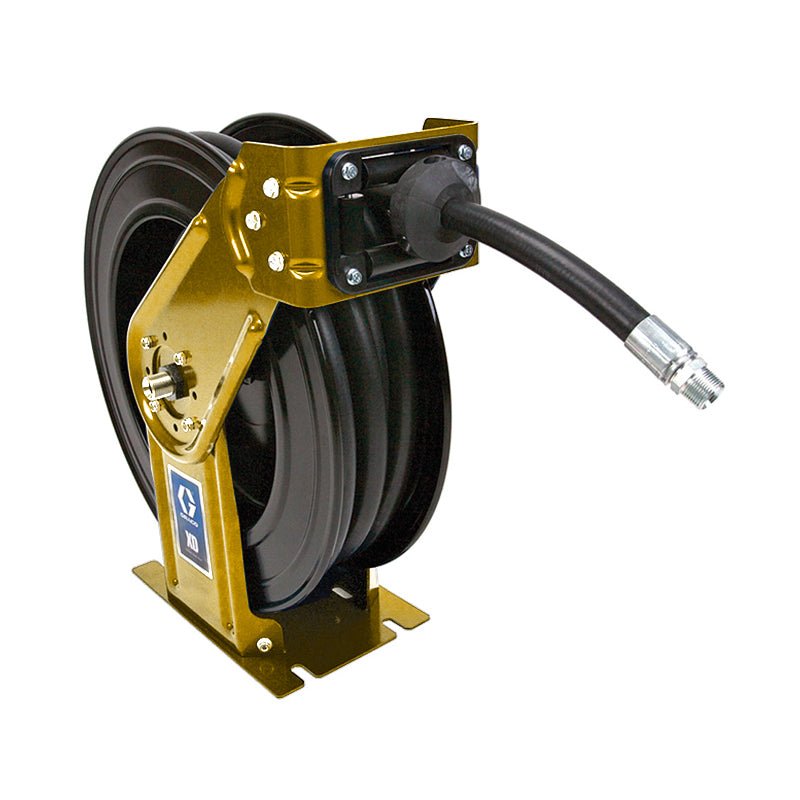

Graco XD30 Hose Reels Range for Grease

SKU: HSHC5F

Graco XD30 Hose Reels Range for Grease

Regular price $2,733.00 AUD
Sale price $2,733.00 AUD Regular price $3,036.00 AUD
Save $303
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

At a Glance

Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

Typical Applications:

  • Heavy-duty truck dealers
  • Fleet maintenance
  • Mining maintenance
  • Public works garage
  • Construction vehicle maintenance
  • Heavy-duty mobile service trucks
  • Mining
  • Lube trucks

Compatible For:

  • Grease
  • 3A0138EN-J - XD30 Series High Capacity Hose Reels Manual
  • Graco XD Series Hose Reels Data Sheet - GO Industrial
COLOR Yellow
DRY WEIGHT (LB) 98
HOSE INSIDE DIAMETER (IN) 3/8
HOSE INSIDE DIAMETER (MM) 9.525
HOSE LENGTH (FT) 75
HOSE LENGTH (M) 23
INLET SIZE (IN) 1/2
INLET SIZE (MM) 12.7
INLET THREAD TYPE NPSM
MAXIMUM WORKING PRESSURE (PSI) 4000
MOUNT LOCATION Truck Mount, Bench Mount
OUTLET SIZE (IN) 3/8
OUTLET SIZE (MM) 9.525
OVERALL HEIGHT (IN) 23.1
OVERALL HEIGHT (MM) 588
OVERALL LENGTH (IN) 22.12
OVERALL LENGTH (MM) 561.73
OVERALL WIDTH (IN) 9
OVERALL WIDTH (MM) 229
SERIES 30
APPLICATION Pressure Wash
TYPE Spring-Rewind Reel
RECOMMENDED ENVIRONMENT Indoor, Outdoor
FRAME TYPE Dual Pedestal
REEL THREAD TYPE NPT
RECOMMENDED FLUID TYPE Pressure Wash
HOSE REEL TYPE Reel with Hose
MODEL XD
  • Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
  • Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models)
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
