GRACO XD40 Hose Reels for Air/Water - GO Industrial - 24P334

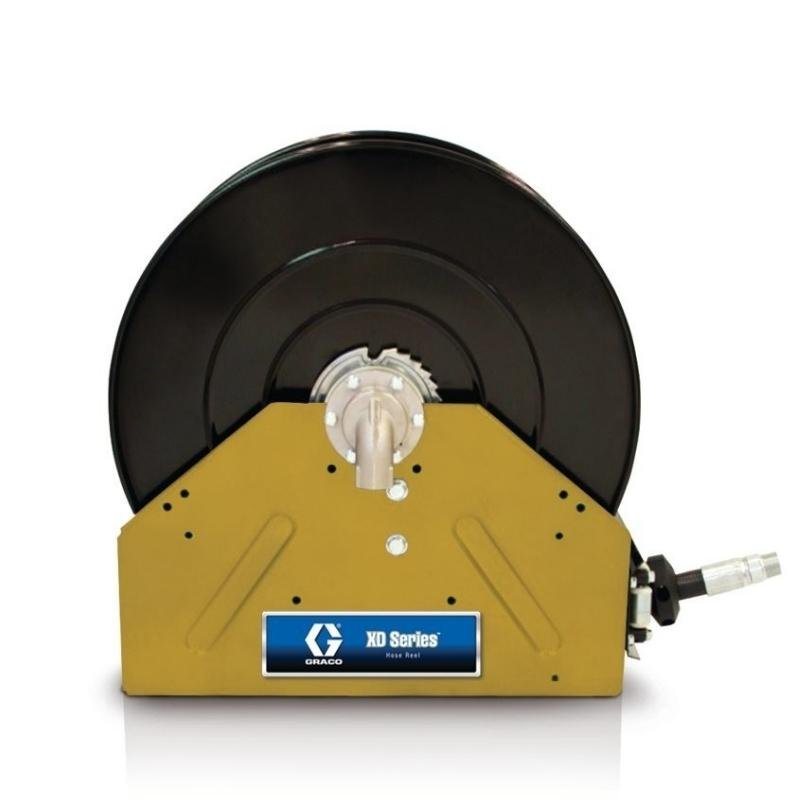

GRACO XD40 Hose Reels for Air/Water

SKU 24P334
Afterpay Zip PayPal LeaseGO
$4,880.00
Tax included. Shipping calculated at checkout.
Hose Length
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

Graco’s XD40 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

    Features

    Features

  • Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
  • Meets Worldwide Needs - Built standard with 90° elbow with NPT threads
    • Specifications
    Technical Specifications SKU: 24P337 SKU: 24P334
    COLOR Yellow Yellow
    DRY WEIGHT (LB) 116 125
    HOSE INSIDE DIAMETER (IN) 1 3/4
    HOSE INSIDE DIAMETER (MM) 25.4 19.05
    HOSE LENGTH (FT) 50 100
    HOSE LENGTH (M) 15 30
    INLET SIZE (IN) 1 1
    INLET SIZE (MM) 25.4 25.4
    INLET THREAD TYPE NPT NPT
    MAXIMUM WORKING PRESSURE (PSI) 300 300
    OUTLET SIZE (IN) 1 3/4
    OUTLET SIZE (MM) 25.4 19.05
    OVERALL HEIGHT (IN) 26.13 26.13
    OVERALL HEIGHT (MM) 664 664
    OVERALL LENGTH (IN) 26.4 26.4
    OVERALL LENGTH (MM) 671 671
    OVERALL WIDTH (IN) 16.54 16.54
    OVERALL WIDTH (MM) 420 420
    SERIES 40 40
    APPLICATION Air, Water Air, Water
    TYPE Spring-Rewind Reel Spring-Rewind Reel
    RECOMMENDED ENVIRONMENT Indoor, Outdoor Indoor, Outdoor
    FRAME TYPE Box Frame Box Frame
    REEL THREAD TYPE NPT NPT
    RECOMMENDED FLUID TYPE Air, Water Air, Water
    HOSE REEL TYPE Reel with Hose Reel with Hose
    MODEL XD XD
