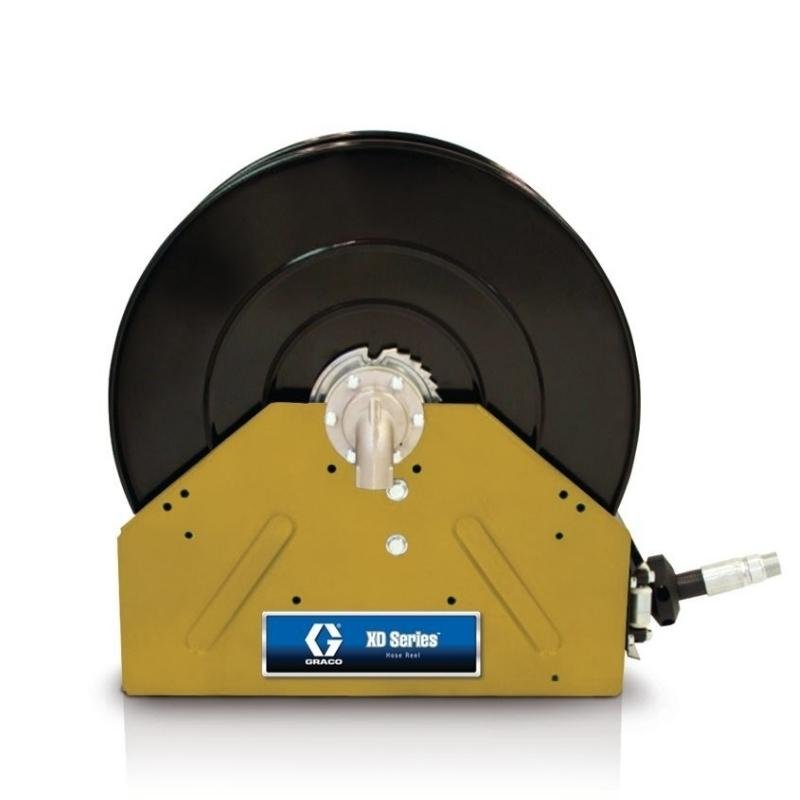

GRACO XD40 Hose Reels for Oil

SKU: 24P346

GRACO XD40 Hose Reels for Oil

$4,796.00 AUD
$4,796.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Hose Length

Other payment options

View full details
Graco XD40 Hose Reels - GO Industrial

GRACO XD40 Hose Reels for Oil

From $4,400.00 AUD
From $4,400.00 AUD
Save $0
Sold out

Details

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

Typical Applications:

  • Heavy-duty truck dealers
  • Fleet maintenance
  • Mining maintenance
  • Public works garages
  • Construction vehicle maintenance
  • Heavy-duty mobile service trucks
  • Agriculture
  • Lube trucks

Compatible For:

  • Air
  • Water

Features

  • Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
  • Meets Worldwide Needs - Built standard with 90° elbow with NPT threads

    • Graco XD40 Hose Reels for Oil

    Overview

    Graco’s XD40 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • 3A2990EN-K 0 Graco XD40 and XD50 Hose Reels Manual
      • Graco XD 40 and XD 50 Hose Reels Data Sheet - GO Industrial

      Specifications

      Technical Specifications SKU 24P346 SKU 24P349
      COLOR Yellow Yellow
      DRY WEIGHT (LB) 152 125
      HOSE INSIDE DIAMETER (IN) 3/4 1
      HOSE INSIDE DIAMETER (MM) 19.05 25.4
      HOSE LENGTH (FT) 100 50
      HOSE LENGTH (M) 30 15
      INLET SIZE (IN) 1 1
      INLET SIZE (MM) 25.4 25.4
      INLET THREAD TYPE NPT NPT
      MAXIMUM WORKING PRESSURE (PSI) 1500 1275
      OUTLET SIZE (IN) 3/4 1
      OUTLET SIZE (MM) 19.05 25.4
      OVERALL HEIGHT (IN) 26.13 26.13
      OVERALL HEIGHT (MM) 664 664
      OVERALL LENGTH (IN) 26.4 26.4
      OVERALL LENGTH (MM) 671 671
      OVERALL WIDTH (IN) 17.47 16.54
      OVERALL WIDTH (MM) 444 420
      SERIES 40 40
      APPLICATION Oil Oil
      TYPE Spring-Rewind Reel Spring-Rewind Reel
      RECOMMENDED ENVIRONMENT Indoor, Outdoor Indoor, Outdoor
      FRAME TYPE Box Frame Box Frame
      REEL THREAD TYPE NPT NPT
      RECOMMENDED FLUID TYPE Oil Oil
      HOSE REEL TYPE Reel with Hose Reel with Hose
      MODEL XD XD

        Features

      • Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
      • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
      • Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
      • Meets Worldwide Needs - Built standard with 90° elbow with NPT threads
