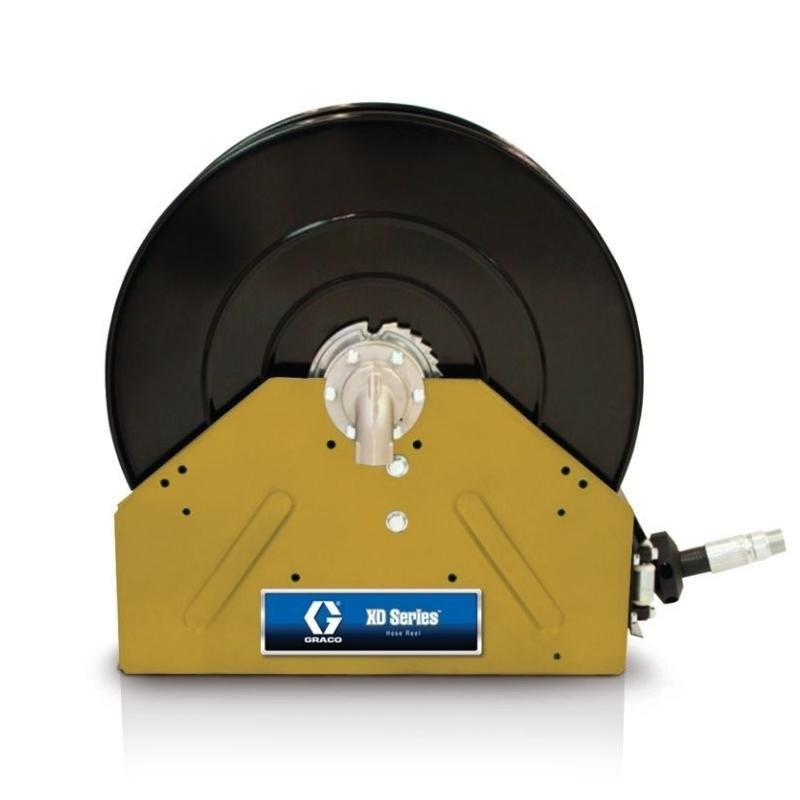

GRACO XD50 Hose Reel 30m 1" for Air/Water
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Graco’s XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.
Features
Features
Specifications
| COLOR | Yellow |
| DRY WEIGHT (LB) | 162 |
| HOSE INSIDE DIAMETER (IN) | 1 |
| HOSE INSIDE DIAMETER (MM) | 25.4 |
| HOSE LENGTH (FT) | 100 |
| HOSE LENGTH (M) | 30 |
| INLET SIZE (IN) | 1 |
| INLET SIZE (MM) | 25.4 |
| INLET THREAD TYPE | NPT |
| MAXIMUM WORKING PRESSURE (PSI) | 300 |
| OUTLET SIZE (IN) | 1 |
| OUTLET SIZE (MM) | 25.4 |
| OVERALL HEIGHT (IN) | 30.13 |
| OVERALL HEIGHT (MM) | 765 |
| OVERALL LENGTH (IN) | 29.4 |
| OVERALL LENGTH (MM) | 747 |
| OVERALL WIDTH (IN) | 17.47 |
| OVERALL WIDTH (MM) | 444 |
| SERIES | 50 |
| APPLICATION | Air, Water |
| TYPE | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor, Outdoor |
| FRAME TYPE | Box Frame |
| REEL THREAD TYPE | NPT |
| RECOMMENDED FLUID TYPE | Air, Water |
| HOSE REEL TYPE | Reel with Hose |
| MODEL | XD |
