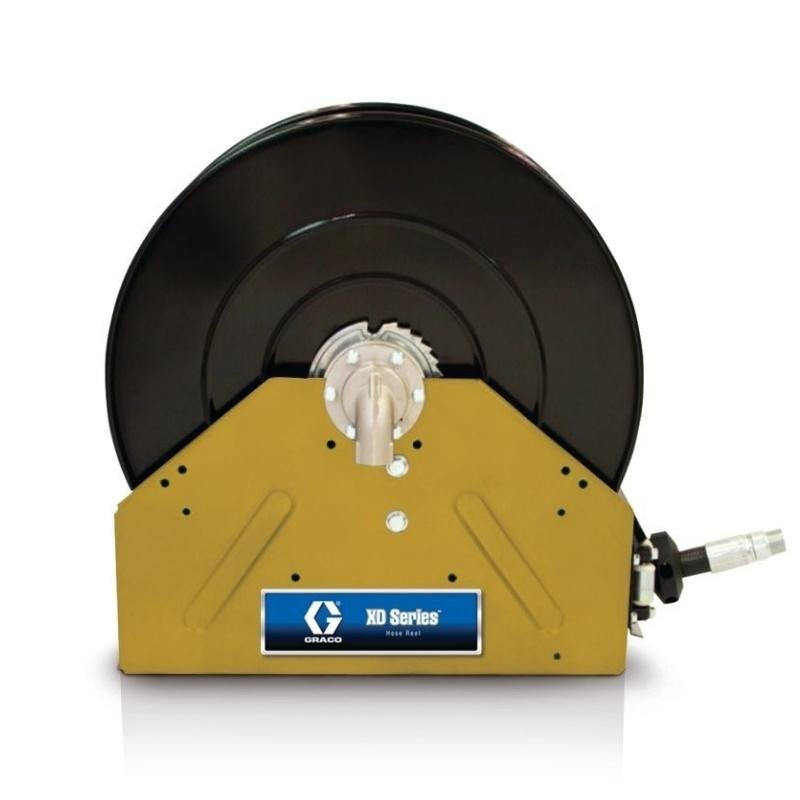

GRACO XD50 Hose Reels for Diesel Fuel
Features
Graco XD50 Hose Reels for Diesel Fuel
Overview
Graco’s XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.
- Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
- Meets Worldwide Needs - Built standard with 90° elbow with NPT threads
Specifications
| Technical Specifications | SKU 24P489 | SKU 24P498 |
| COLOR | Yellow | Yellow |
| DRY WEIGHT (LB) | 162 | 164 |
| HOSE INSIDE DIAMETER (IN) | 1 | 1-1/2 |
| HOSE INSIDE DIAMETER (MM) | 25.4 | 38.1 |
| HOSE LENGTH (FT) | 100 | 50 |
| HOSE LENGTH (M) | 30 | 15 |
| INLET SIZE (IN) | 1 | 1-1/2 |
| INLET SIZE (MM) | 25.4 | 38.1 |
| INLET THREAD TYPE | NPT | NPT, Victaulic Groove |
| MAXIMUM WORKING PRESSURE (PSI) | 250 | 150 |
| OUTLET SIZE (IN) | 1 | 1-1/2 |
| OUTLET SIZE (MM) | 25.4 | 38.1 |
| OVERALL HEIGHT (IN) | 30.13 | 30.13 |
| OVERALL HEIGHT (MM) | 765 | 765 |
| OVERALL LENGTH (IN) | 29.4 | 29.4 |
| OVERALL LENGTH (MM) | 747 | 747 |
| OVERALL WIDTH (IN) | 17.47 | 18.24 |
| OVERALL WIDTH (MM) | 444 | 463 |
| SERIES | 50 | 50 |
| APPLICATION | Diesel Fuel | Diesel Fuel |
| TYPE | Spring-Rewind Reel | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor, Outdoor | Indoor, Outdoor |
| FRAME TYPE | Box Frame | Box Frame |
| REEL THREAD TYPE | NPT | NPT |
| RECOMMENDED FLUID TYPE | Diesel Fuel | Diesel Fuel |
| HOSE REEL TYPE | Reel with Hose | Reel with Hose |
| MODEL | XD | XD |
