GRACO XD60 Bare Motorless Hose Reels - GO Industrial - 24T105

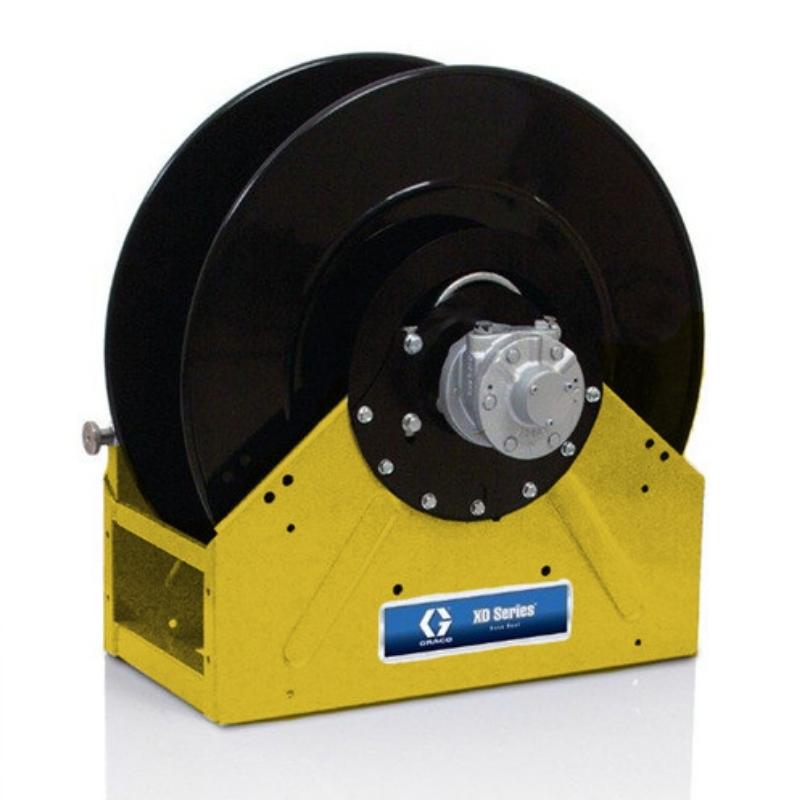

GRACO XD60 Bare Motorless Hose Reels

SKU 24T105
Afterpay Zip PayPal LeaseGO
$3,595.45 $3,754.55 ex GST · $3,955.00 inc GST
Prices shown ex GST. Shipping calculated at checkout.
Type
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

The innovative design of the XD60 Series Powered Hose Reel family is packed with features to help you work safer, smarter and faster. The direct-drive motor options include hydraulic, pneumatic and electric for air, water, petroleum- and synthetic-based oil, grease, diesel fuel dispense and waste oil evacuation applications.

    Features

    Features

  • Safe, Reliable Direct Drive and Gear Motors - Drive unit is clean and lubricated for life No need to worry about greasy, exposed drive chains that need maintenance and can be dangerous to operators
  • Easy System Integration - Easily change the inlet and motor direction to give you the option of a right or left hand flow orientation
  • Heavy-duty Welded Spool - Built to handle the weight of heavy hoses, designed to surround and protect the drive unit from the elements to promote longer lasting, safer operation
  • Rugged and Durable Body - Heavy-duty one piece welded frame is engineered to flex under extreme operating conditions and is stronger than bolted frames that can loosen with use Individually painted and powder coated components have superior corrosion resistance over assembled and painted products
    • Specifications
    Technical Specifications SKU 24T108 SKU 24T105
    COLOR Yellow Yellow
    INLET SIZE (IN) 1 1
    INLET SIZE (MM) 25.4 25.4
    INLET THREAD TYPE NPT NPT
    MAXIMUM TEMPERATURE (°C) 82 82
    MAXIMUM TEMPERATURE (°F) 180 180
    MAXIMUM WORKING PRESSURE (PSI) 3000 600
    MINIMUM TEMPERATURE (°C) -40 -40
    MINIMUM TEMPERATURE (°F) -40 -40
    OUTLET SIZE (IN) 1 1
    OUTLET SIZE (MM) 25.4 25.4
    OUTLET THREAD TYPE NPT NPT
    OVERALL HEIGHT (IN) 26.1 26.1
    OVERALL HEIGHT (MM) 662.94 662.94
    OVERALL LENGTH (IN) 26 26
    OVERALL LENGTH (MM) 660 660
    OVERALL WIDTH (IN) 15.07 15.07
    OVERALL WIDTH (MM) 382.778 382.778
    TYPE Motorless Hose Reel Motorless Hose Reel
    APPLICATION Oil, Grease Air, Water, Diesel Fuel, WOE
    BARE REEL 1 1
    MAXIMUM WORKING PRESSURE (KPA) 20670 4134
    OUTLET THREAD GENDER Female Female
    HOSE LENGTH (FT) 50 50
    OUTLET SIZE (CM) 2.54 2.54
    FRAME TYPE Box Frame Box Frame
    RECOMMENDED FLUID TYPE Oil, Grease Air, Water, Diesel Fuel, WOE
    MAXIMUM WORKING PRESSURE (BAR) 207 41
    INLET THREAD GENDER Female Female
    INLET SIZE (CM) 2.54 2.54
    REEL THREAD TYPE NPT NPT
    OVERALL HEIGHT (CM) 66.294 66.294
    OVERALL LENGTH (CM) 66 66
    OVERALL WIDTH (CM) 38.2778 38.2778
    HOSE REEL TYPE Bare Reel Bare Reel
