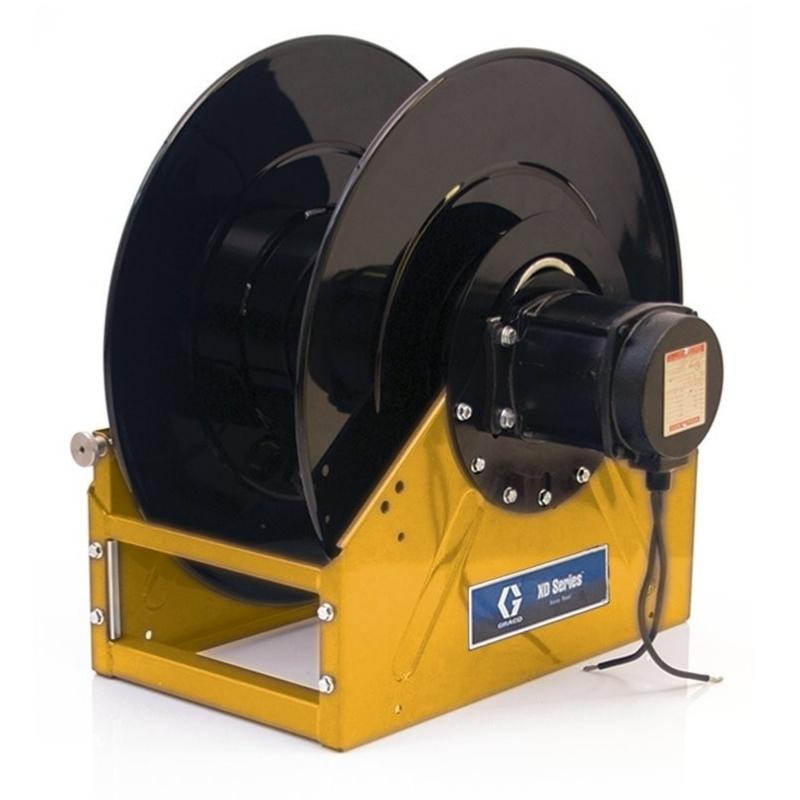

GRACO XD70 Bare Motorless Hose Reels

SKU 24T111

$3,627.27 ex GST · $3,990.00 inc GST

Prices shown ex GST. Shipping calculated at checkout.

Model 30 meters (1"⌀) for Air / Water / Diesel Fuel 30 meters (1"⌀) for Oil 15 meters (1 1/2"⌀) for Diesel Fuel / Waste Oil Evacuation 10 meters (2"⌀) for Diesel Fuel

Quantity

Contact for pricing

No stock main warehouse, contact for lead time

Found a better deal? Message us to price match.

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

The innovative design of the XD70 Series Powered Hose Reel family is packed with features to help you work safer, smarter and faster. The direct-drive motor options include hydraulic, pneumatic and electric for air, water, petroleum- and synthetic-based oil, grease, diesel fuel dispense and waste oil evacuation applications.

Features

Safe, Reliable Direct Drive and Gear Motors - Drive unit is clean and lubricated for life No need to worry about greasy, exposed drive chains that need maintenance and can be dangerous to operators

Easy System Integration - Easily change the inlet and motor direction to give you the option of a right or left hand flow orientation

Heavy-duty Welded Spool - Built to handle the weight of heavy hoses, designed to surround and protect the drive unit from the elements to promote longer lasting, safer operation

Rugged and Durable Body - Heavy-duty one piece welded frame is engineered to flex under extreme operating conditions and is stronger than bolted frames that can loosen with use Individually painted and powder coated components have superior corrosion resistance over assembled and painted products

Specifications

Technical Specifications	SKU 24T111	SKU 24T114
COLOR	Yellow	Yellow
DRY WEIGHT (LB)	86	87
INLET SIZE (IN)	1	1
INLET SIZE (MM)	25.4	25.4
INLET THREAD TYPE	NPT	NPT
MAXIMUM TEMPERATURE (°C)	82	82
MAXIMUM TEMPERATURE (°F)	180	180
MAXIMUM WORKING PRESSURE (PSI)	600	3000
MINIMUM TEMPERATURE (°C)	-40	-40
MINIMUM TEMPERATURE (°F)	-40	-40
OUTLET SIZE (IN)	1	1
OUTLET SIZE (MM)	25.4	25.4
OUTLET THREAD TYPE	NPT	NPT
SERIES	70	70
TYPE	Motorless Hose Reel	Motorless Hose Reel
APPLICATION	Air, Water, Diesel Fuel	Oil
BARE REEL	1	1
MAXIMUM WORKING PRESSURE (KPA)	4100	20700
OUTLET THREAD GENDER	Female	Female
HOSE LENGTH (FT)	100	100
OUTLET SIZE (CM)	2.54	2.54
FRAME TYPE	Box Frame	Box Frame
RECOMMENDED FLUID TYPE	Air, Water, Diesel Fuel	Oil
MAXIMUM WORKING PRESSURE (BAR)	41	207
MAXIMUM WORKING PRESSURE (MPA)	4.1	20.7
INLET THREAD GENDER	Female	Female
INLET SIZE (CM)	2.54	2.54
REEL THREAD TYPE	NPT	NPT
HOSE REEL TYPE	Bare Reel	Bare Reel
MODEL	XD	XD

Technical Specifications	SKU 24T117	SKU 24T120
COLOR	Yellow	Yellow
DRY WEIGHT (LB)	87	91
INLET SIZE (IN)	1.5	2
INLET SIZE (MM)	38.1	50.8
INLET THREAD TYPE	NPT	NPT
MAXIMUM TEMPERATURE (°C)	82	60
MAXIMUM TEMPERATURE (°F)	180	140
MAXIMUM WORKING PRESSURE (PSI)	600	600
MINIMUM TEMPERATURE (°C)	-40	-40
MINIMUM TEMPERATURE (°F)	-40	-40
OUTLET SIZE (IN)	1.5	2
OUTLET SIZE (MM)	38.1	50.8
OUTLET THREAD TYPE	NPT	NPT
SERIES	70	70
TYPE	Motorless Hose Reel	Motorless Hose Reel
APPLICATION	Diesel Fuel, WOE	Diesel Fuel
BARE REEL	1	1
MAXIMUM WORKING PRESSURE (KPA)	4100	4100
OUTLET THREAD GENDER	Female	Female
HOSE LENGTH (FT)	50	33
OUTLET SIZE (CM)	3.81	5.08
FRAME TYPE	Box Frame	Box Frame
RECOMMENDED FLUID TYPE	Diesel Fuel, WOE	Diesel Fuel
MAXIMUM WORKING PRESSURE (BAR)	41	41
MAXIMUM WORKING PRESSURE (MPA)	4.1	4.1
INLET THREAD GENDER	Female	Female
INLET SIZE (CM)	3.81	5.08
REEL THREAD TYPE	NPT	NPT
HOSE REEL TYPE	Bare Reel	Bare Reel
MODEL	XD	XD
