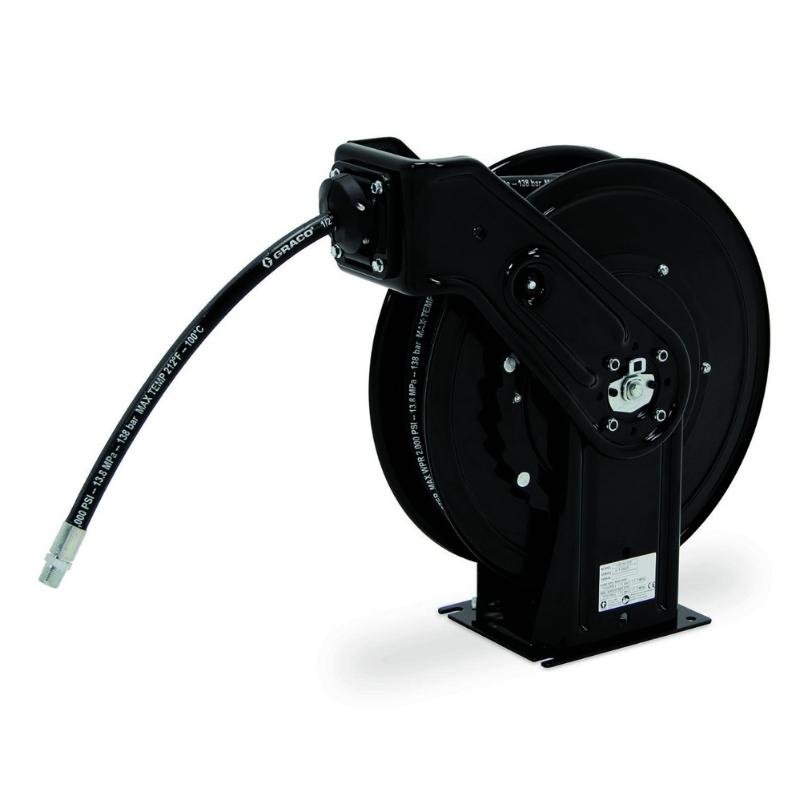

GRACO XDX 10 Hose Reels 11m 1/2" for Air/Water/Antifreeze/WWS - GO Industrial - XDL33D

GRACO XDX 10 Hose Reels 11m 1/2" for Air/Water/Antifreeze/WWS

SKU XDL33D
Afterpay Zip PayPal LeaseGO
$1,749.00
Tax included. Shipping calculated at checkout.
Arm Color
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.

    Features

    Features

  • Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications
    • Specifications
    COLOR White, Metallic Blue, Black, Yellow
    HOSE INSIDE DIAMETER (IN) 1/2
    HOSE INSIDE DIAMETER (MM) 12.7
    HOSE LENGTH (FT) 35
    HOSE LENGTH (M) 11
    INLET SIZE (IN) 1/2
    INLET SIZE (MM) 12.7
    INLET THREAD TYPE NPSM
    MAXIMUM TEMPERATURE (°C) 87
    MAXIMUM TEMPERATURE (°F) 190
    MAXIMUM WORKING PRESSURE (PSI) 300
    MINIMUM TEMPERATURE (°C) -28
    MINIMUM TEMPERATURE (°F) -20
    MOUNT LOCATION Truck Mount, Bench Mount
    OUTLET SIZE (IN) 1/2
    OUTLET SIZE (MM) 12.7
    OVERALL HEIGHT (IN) 22.5
    OVERALL HEIGHT (MM) 572
    OVERALL LENGTH (IN) 18.5
    OVERALL LENGTH (MM) 473
    OVERALL WIDTH (IN) 7.5
    OVERALL WIDTH (MM) 191
    SERIES 10
    WETTED PARTS Stainless Steel, Anodized Aluminum, Nitrile Rubber
    APPLICATION Air, Water, Antifreeze, WWS
    TYPE Spring-Rewind Reel
    RECOMMENDED ENVIRONMENT Indoor, Outdoor
    FRAME TYPE Dual Pedestal
    REEL THREAD TYPE NPT
    INLET THREAD GENDER Male
    OUTLET THREAD GENDER Male
    RECOMMENDED FLUID TYPE Air, Water, Antifreeze, WWS
    HOSE REEL TYPE Reel with Hose
