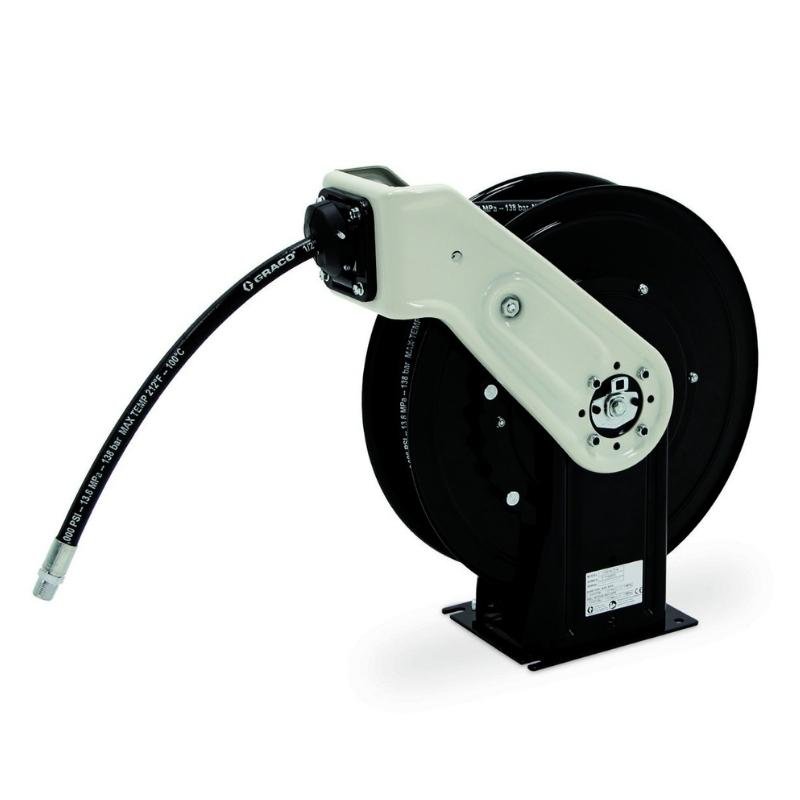

GRACO XDX 20 Hose Reels 15m 1/2" for Air/Water/Antifreeze/WWS
SKU XDL65A
$1,977.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.
Features
Features
Specifications
| COLOR | Black |
|---|---|
| HOSE INSIDE DIAMETER (IN) | 1/2 |
| HOSE INSIDE DIAMETER (MM) | 12.7 |
| HOSE LENGTH (FT) | 50 |
| HOSE LENGTH (M) | 15 |
| INLET SIZE (IN) | 1/2 |
| INLET SIZE (MM) | 12.7 |
| INLET THREAD TYPE | NPSM |
| MAXIMUM TEMPERATURE (°C) | 87 |
| MAXIMUM TEMPERATURE (°F) | 190 |
| MAXIMUM WORKING PRESSURE (PSI) | 300 |
| MINIMUM TEMPERATURE (°C) | -28 |
| MINIMUM TEMPERATURE (°F) | -20 |
| MOUNT LOCATION | Truck Mount, Bench Mount |
| OUTLET SIZE (IN) | 1/2 |
| OUTLET SIZE (MM) | 12.7 |
| OVERALL HEIGHT (IN) | 25.2 |
| OVERALL HEIGHT (MM) | 640 |
| OVERALL LENGTH (IN) | 23.4 |
| OVERALL LENGTH (MM) | 594 |
| OVERALL WIDTH (IN) | 7.5 |
| OVERALL WIDTH (MM) | 191 |
| SERIES | 20 |
| WETTED PARTS | Stainless Steel, Anodized Aluminum, Nitrile Rubber |
| APPLICATION | Air, Water, Antifreeze, WWS |
| TYPE | Spring-Rewind Reel |
| RECOMMENDED ENVIRONMENT | Indoor, Outdoor |
| FRAME TYPE | Dual Pedestal |
| REEL THREAD TYPE | NPT |
| INLET THREAD GENDER | Male |
| OUTLET THREAD GENDER | Male |
| RECOMMENDED FLUID TYPE | Air, Water, Antifreeze, WWS |
| HOSE REEL TYPE | Reel with Hose |
| INCLUDES_HOSE | Yes |
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
