1 5

Box Contents

  • GPI RP-10 Fuel Transfer Pump
  • Anti-siphon valve
  • Dispensing hose
  • Telescoping suction pipe
  • Nozzle
  • Bung adapter
  • Handle locking cable
  • Owners Manual
  • GO Data Sheet GPI RP-10 Hand Pump
  • GO Manual GPI RP10
Type Rotary
Flow Rate 38L per 100 revolutions
Temperature -20° F to 125° F (-29° C to 52° C)
Wetted Materials Aluminium
Inlet DN25 (1") F NPT
Outlet DN20 (3.4") F NPT
Mounting Type Direct Mount, DN50 (2") MNPT
 Suction Tube Polypropylene, Telescoping 380mm to 1016mm. x DN25 (1") M NPT
Dispensing Hose 2.44 m x DN20 (3/4")
Nozzle Metal spout with built-in holder
Housing Corrosion Proof Aluminium
Warranty 2 Years
Approvals UL Listed Hand Operated Pump for Flammable and Combustible Liquids Per UL Subject 124



    Summary

    • The GPI RP-10 fluid transfer hand pump is a rotary action pump designed for direct mounting on portable tanks, drums, or barrels for the transfer of petrol, diesel fuel, kerosene, oil (up to 30W), and hydraulic fluid.
    • This hand pump delivers up to 10 gallons (38 Litres) per 100 revolutions.
    • The RP-10 is the perfect pump for construction, agriculture, and other industries where maximum versatility and portability are important.

    Features

    • Built-in strainer and anti-siphon valve.
    • Lockable handle deters fluid theft.
    • Light-weight aluminum body provides corrosion resistance and reduces tank stress.
    • 90° street elbow reduces dispensing hose strain.
    • Fits a 2 in. NPT bung.
    • For use with gasoline (alcohol blends up to E15), diesel fuel (diesel blends to B20), kerosene, oil (up to 30W), and hydraulic fluid.
    • 2-yr Warranty
    • U.L. listed to U.S. and Canadian standards.

HAND PUMP GPI RP-10-UL Rotary

SKU: 123000-06

HAND PUMP GPI RP-10-UL Rotary

$557.00 AUD
$557.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

The Basics

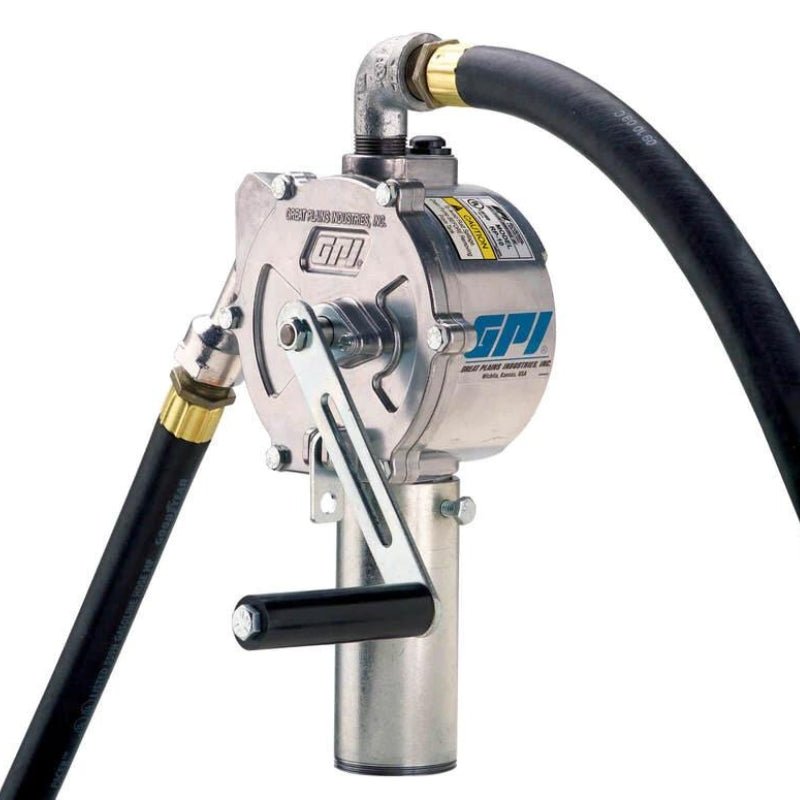

The GPI RP-10 rotary hand pump, from GO Industrial, is designed for the transfer of petrol, diesel, kerosene, oil (up to 30W) and hydraulic fluid.  The pump is designed to be direct mounted and features a DN50 (2") NPT thread suitable for use with portable tanks, drums or barrels.

The GPI RP-10-UL is self-priming and dispenses 380ml per revolution making refilling applications easy and effortless.  The pump is supplied with 2.44m x DM20 (3/4") Hose and a Spout Style Nozzle.

Made in the USA, and backed by a 2 year warranty from GPI, the RP-10 is virtually maintenance free and is perfect for construction, agriculture, and other industries where maximum versatility, reliability and portability are critical.


      Customers also purchased

      FILTER PIUSI Assembly DN25 (1") with 10um Fuel/Oil Particulate Element 70lpm F0777200A

      FILTER PIUSI Assembly DN25 (1") with 10um Particulate Element 60lpm F0777200A

      $130.00 AUD
      $130.00 AUD
      Piusi SELF 3000 Manual Shut Off Nozzle 60lpm F00650020

      Piusi SELF 3000 Manual Shut Off Nozzle 60lpm F00650020

      $99.00 AUD
      $99.00 AUD

      Box Contents

      • GPI RP-10 Fuel Transfer Pump
      • Anti-siphon valve
      • Dispensing hose
      • Telescoping suction pipe
      • Nozzle
      • Bung adapter
      • Handle locking cable
      • Owners Manual
      • GO Data Sheet GPI RP-10 Hand Pump
      • GO Manual GPI RP10
      Type Rotary
      Flow Rate 38L per 100 revolutions
      Temperature -20° F to 125° F (-29° C to 52° C)
      Wetted Materials Aluminium
      Inlet DN25 (1") F NPT
      Outlet DN20 (3.4") F NPT
      Mounting Type Direct Mount, DN50 (2") MNPT
       Suction Tube Polypropylene, Telescoping 380mm to 1016mm. x DN25 (1") M NPT
      Dispensing Hose 2.44 m x DN20 (3/4")
      Nozzle Metal spout with built-in holder
      Housing Corrosion Proof Aluminium
      Warranty 2 Years
      Approvals UL Listed Hand Operated Pump for Flammable and Combustible Liquids Per UL Subject 124



        Summary

        • The GPI RP-10 fluid transfer hand pump is a rotary action pump designed for direct mounting on portable tanks, drums, or barrels for the transfer of petrol, diesel fuel, kerosene, oil (up to 30W), and hydraulic fluid.
        • This hand pump delivers up to 10 gallons (38 Litres) per 100 revolutions.
        • The RP-10 is the perfect pump for construction, agriculture, and other industries where maximum versatility and portability are important.

        Features

        • Built-in strainer and anti-siphon valve.
        • Lockable handle deters fluid theft.
        • Light-weight aluminum body provides corrosion resistance and reduces tank stress.
        • 90° street elbow reduces dispensing hose strain.
        • Fits a 2 in. NPT bung.
        • For use with gasoline (alcohol blends up to E15), diesel fuel (diesel blends to B20), kerosene, oil (up to 30W), and hydraulic fluid.
        • 2-yr Warranty
        • U.L. listed to U.S. and Canadian standards.
