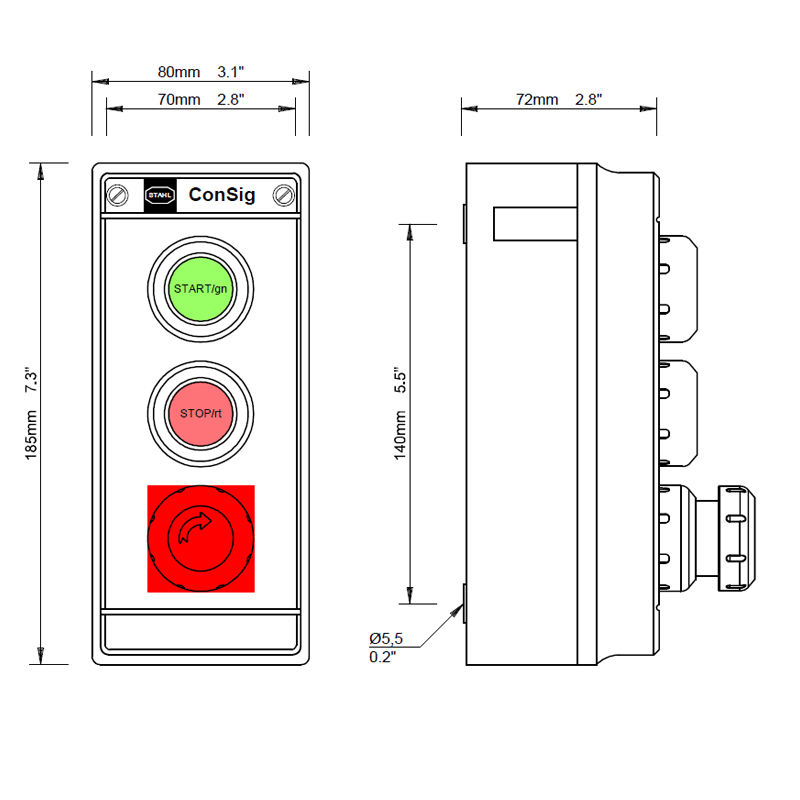

Hazardous Area Control Station Start Stop Emergency Stop Stahl 8040 Dimensions

1 3

STHAL Hazardous Area Control Station Start Stop Emergency Stop

Name: STHAL Hazardous Area Control Station Start Stop Emergency Stop
Brand: Stahl
SKU: 8040/1392Z-01L12SA02-01L09SA01-10L07SA01
Price: 1199.0 AUD
Availability: InStock

SKU: 8040/1392Z-01L12SA02-01L09SA01-10L07SA01

STHAL Hazardous Area Control Station Start Stop Emergency Stop

$1,199.00 AUD

Save $0

Sold out

Inclusive of GST. Shipping calculated at checkout.

In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Product variants

Quantity

Other payment options

View full details

STHAL Hazardous Area Control Station Start Stop Emergency Stop

$1,199.00 AUD

Save $0

Sold out

Product variants

Details

Model 8040/1392Z-01L12SA02-01L09SA01-10L07SA01
Suitable for Zones 1, 2, 21, 22
IECEx PTB 06.0025
Ambient temperature range -60 ... +40 °C
Ex db eb ia ib [ia Ga] mb q IIA, IIB, IIC, T6, T5, T4 Gb
Ex tb IIIC T80°C, T95°C, T130°C Db
500V 10A rating
IP66
Green start button with N/O and N/C contacts
Red stop button with N/O and N/C contacts
Emergency stop mushroom stayput button with N/O and N/C contacts
2 x M20 x 1.5 entry
Metal plate for earthing of cable upon entry
Suitable for use with intrinsically-safe pulse meters and nozzle switches

The control station, type 8040/***-***/*** consists of one or several plastic enclosures designed to type of protection Increased safety “e”. The enclosures can accommodate control and indicator components as well as terminals for intrinsically safe and non-intrinsically safe circuits. The area designated for intrinsically safe circuits will be marked, e.g. by means of light-blue colour. Connection is by means of explosion-proof cable entries. All the installed and attached components are tested and certified under separate IECEx certificate.

Features

Enclosure made of glass fibre reinforced polyester resin

All versions with gold contacts

Suitable for safety-specific applications up to SIL 2 and SIL 3 to IEC/EN 61508

Sthal Hazardous Area Control Station Start Stop Emergency Stop

Overview

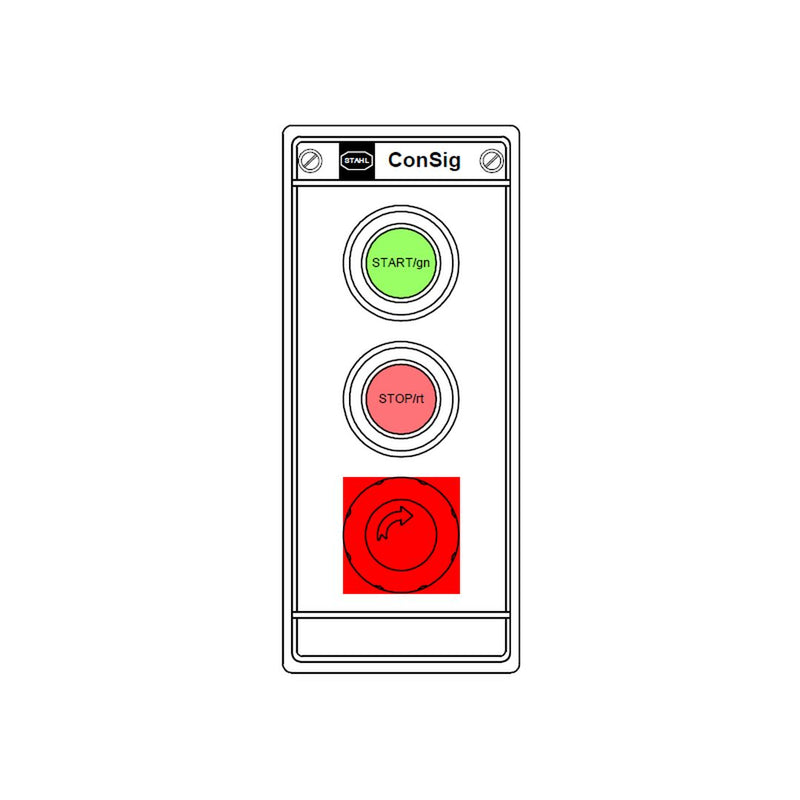

Start / stop / emergency stop control station suitable for installation in a hazardous area. The control station comes with 1 x start button, 1 x stop button, 1 x emergency stop mushroom stayput each with 1 N/O and 1 N/C contact. 1 x M20 entry with steel grounding plate.
