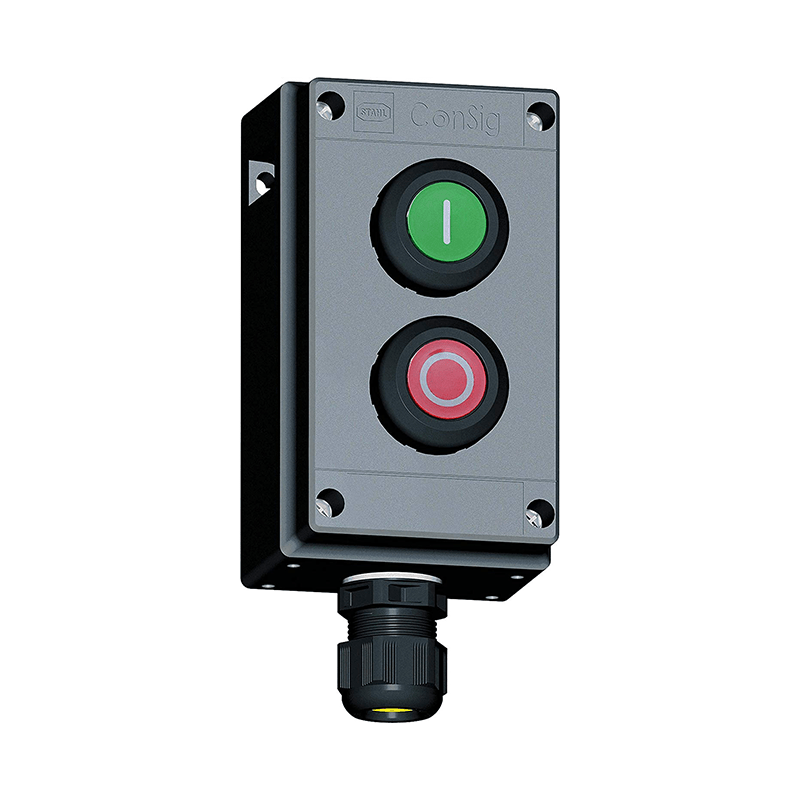

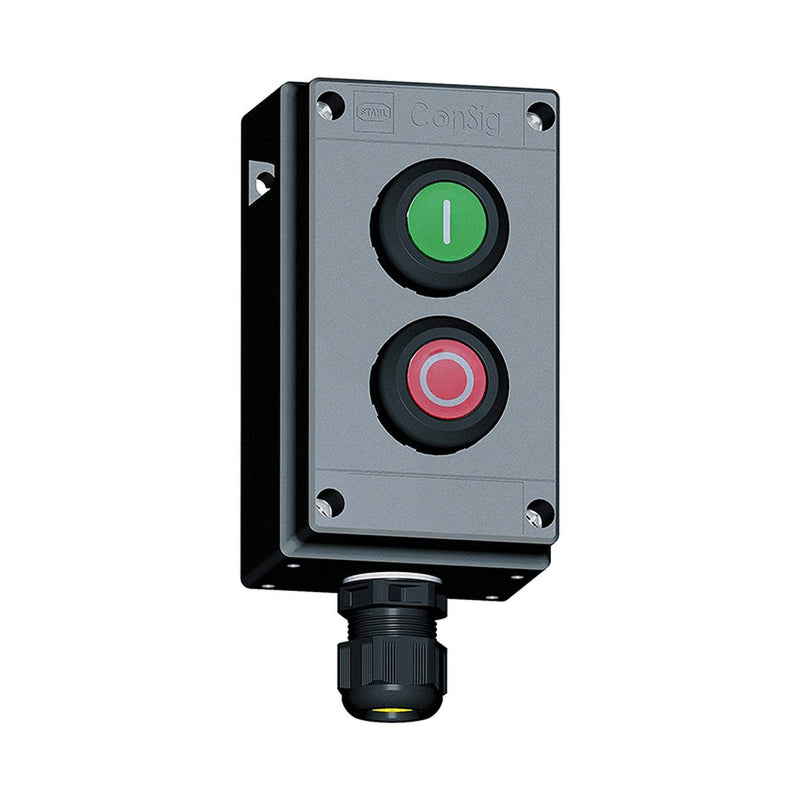

This Stahl control station provides start and stop control for installation in a hazardous area. It is supplied with one start button and one stop button, each with one normally open and one normally closed contact, and one M20 entry with a steel grounding plate. The enclosure is designed to the increased safety type of protection and can house control and indicator components along with terminals for intrinsically safe and non-intrinsically safe circuits, with the intrinsically safe area clearly marked. It is also suitable for use with intrinsically-safe pulse meters and nozzle switches.
Features
Reinforced Enclosure: Enclosure made of glass fibre reinforced polyester resin.
Gold Contacts: All versions supplied with gold contacts.
SIL Rated: Suitable for safety-specific applications up to SIL 2 and SIL 3 to IEC/EN 61508.
Included accessories
Specifications
| Model | 8040-1278X-01L12SA05-01L09SA05 |
|---|---|
| Zones | 1, 2, 21, 22 |
| Certification | IECEx PTB 06.0025 |
| Ambient Temperature | -60 to +40 °C |
| Ex Marking | Ex db eb ia ib [ia Ga] mb q IIA, IIB, IIC, T6, T5, T4 Gb; Ex tb IIIC T80°C, T95°C, T130°C Db |
| Rating | 500V 10A |
| Ingress Protection | IP66 |
| Start Button | Green, N/O and N/C contacts |
| Stop Button | Red, N/O and N/C contacts |
| Cable Entry | 1 x M20 x 1.5 |
| Earthing | Metal plate for earthing of cable on entry |
