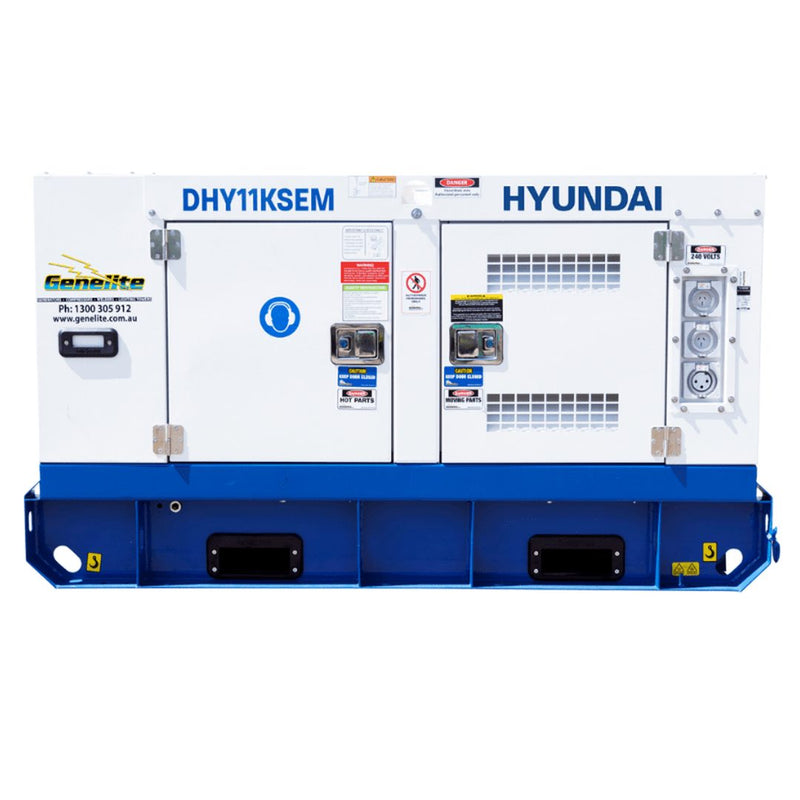

GO11KSEM 14kVA Hyundai Industrial Standby Generator
Features
Hyundai DHY11KSEM 14kVA Industrial Standby Generator
Overview
The DHY11KSEm is a powerful single phase standby diesel generator which is designed to provide reliable power to your home or business when the National Grid lets you down. Powered by a 1500rpm Hyundai engine, which gives the machine a longer lifespan due to the lower revs, the DHY11KSEm can produce up to 14kVA.
Equipped with an AVR alternator to produce clean energy, the DHY11KSEm is suited to powering any sensitive electronic equipment in your home or business, such as televisions, video game consoles, computers, laptops and more.
Housed in a “silenced” weather-proof canopy, the DHY11KSEm produces only 65dB @ 7 metres to prevent interrupting you, your family or your workforce when in action.
All Hyundai 1500rpm diesel generator sound proof canopies undergo an anti-corrosion painting process called electrophoretic painting. This process ensures all areas of the canopy have an evenly applied thickness of paint, ensuring maximum corrosion protection.
Because it can run on red diesel you’ll also find the DHY11KSEm cheap to refuel when it does eventually run low, since red diesel is significantly cheaper than standard road diesel.
For the ultimate user convenience the DHY11KSEm can be paired with an ATS (Automatic Transfer Switch) system which will automatically turn on the generator when a loss of power to the property is detected. When power returns from the mains, the ATS module will then safely turn your generator off. This is ideal for those who need to guarantee constant power, for example if you run servers or have refrigeration units.
Specifications
Model | DHY11KSEm |
---|---|
Rated/Prime kVA* | 12.5 |
Rated/Prime kW | 10 |
Max/Standby kVA* | 13.75 |
Max/Standby kW | 11 |
Phase | Single |
Voltage | 230 |
Connection Method(s) | 1 x 230V/32A 1 x 230V/63A |
Rated Speed (RPM) | 1500 |
Frequency (Hz) | 50 |
Max/Continuous Current (Amps) | 47.8 / 43.5 |
Power Factor (Cosφ) | 1 |
Fuel/Power Source | Diesel |
Fuel Tank (Litres) | 46 |
Runtime (Hours) @ 100% Load | 12.11 |
Noise Level @ 1m 75% load (dB) | 62 |
Noise Level @ 7m 75% load (dB) | 62 |
Hyundai Diesel Engine Model | HY390 |
Power Output (kw) | 13 |
Displacement (CC) | 1815 |
No. of Cylinders | 3 |
Displacement (Litres) | 1.815 |
Recommended Oil Type | SAE 15W40 |
Oil Capacity (Litres) | 3.5 |
Oil Filter Part No. | JX0810Y |
Aspiration | Natural |
Fuel Regulation/Governor System | Mechanical |
Fuel Consumption (100% Load) [Litres] | 3.8 |
Fuel Filter Part No. | CX0708 |
Cooling | Water |
Alternator Model | 164C |
Breakers | 2P C63A 100mA |
Alternator Type | Brushless |
Voltage Regulation | AVR |
Air Filter Part No. | K1317 |
Net Weight (kg) | 655 |
Gross Weight (kg) | 655 |
Dimensions L x W x H (mm) | 1630 x 760 x 1115 |
Battery System / Starting (V - Ah) | 2x12/30 |
ATS / MTS Compatible | Yes |
Control Panel | ComAp AMF9 |
Model EAN | 700621496205 |
Product Type | Diesel Generator |
- Single-phase diesel generator: Produces up to 14kVA of backup power and 12.5KVA of prime power
- Powered by a 1500rpm engine: Extends the lifespan of the generator
- Fitted with an AVR alternator: Able to produce a clean energy output
- Silenced generator: Housed in a weather-proof canopy, producing only 66dB at 7m
- ATS compatible: Automatically transfers power to the generator in the event of a power cut
