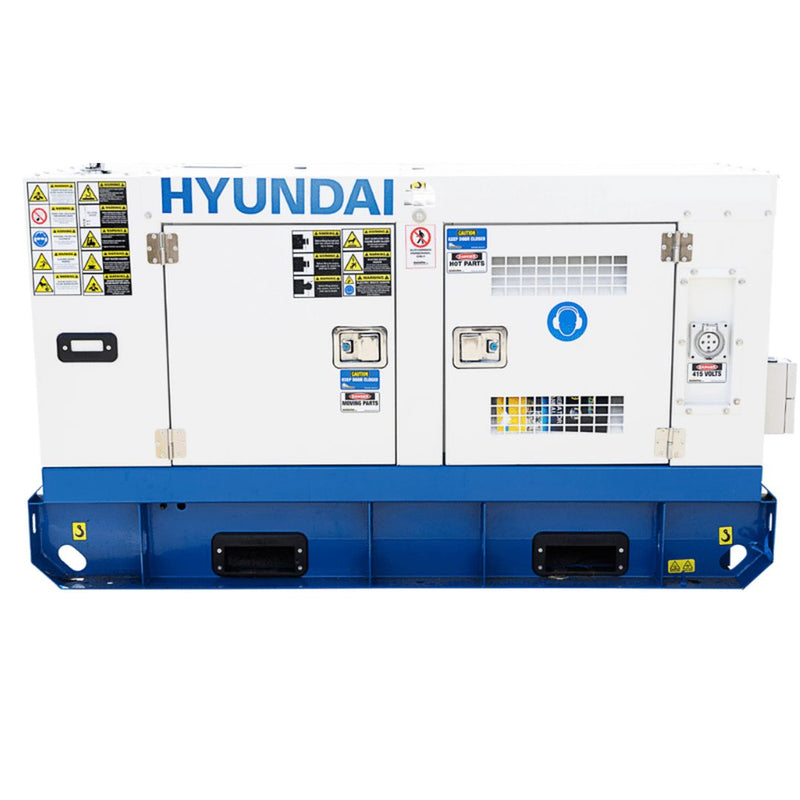

Hyundai DHY14KSE-3 14kVA Industrial Standby Generator
Features
Hyundai DHY14KSE-3 14kVA Industrial Standby Generator
Overview
The Hyundai DHY14KSE-3 is a three phase diesel generator with a maximum output of 14kVA. Designed for domestic or professional use, the DHY14KSE is powered by a Hyundai diesel engine and is equipped an AVR alternator to produce clean energy.
This means that any sensitive electronic equipment, such as televisions, PCs and laptops, can safely be powered by the DHY14KSE.
The DHY14KSE-3 can be started manually by using the key, or connected to an ATS (Automatic Transfer Switch) system. An ATS system will automatically detect a loss of power from the mains, turn your DHY14KSE-3 on automatically, and then turn it off again when power returns from the mains.
Housed in a weather-proof silenced canopy, the DHY14KSE-3 produces only 75dB @ 7 metres which makes it a quiet standby generator which won’t interrupt you at home or work.
The DHY14KSE-3 benefits from being an economical diesel generator, capable of running on red diesel which is significantly cheaper than road diesel and is safer to store than petrol.
An MRS 10 Intelilite control panel with its intuitive interface gives the user an unprecedented level of control over numerous variables including the voltage and current, as well as oil pressures and the engine running hours.
Running at 1500rpm, the engine is stressed less than in 3000rpm generators and this helps extend the lifespan of the machine if properly serviced.
Specifications
Model | DHY14KSE |
---|---|
Rated/Prime kVA* | 13 |
Rated/Prime kW | 10 |
Max/Standby kVA* | 14 |
Max/Standby kW | 11 |
Phase | Three |
Voltage | 230 / 400 |
Connection Method(s) | 1 x 400v 63A 1 x 230v 32A |
Rated Speed (RPM) | 1500 |
Frequency (Hz) | 50 |
Max/Continuous Current (Amps) | 20 / 18 |
Power Factor (Cosφ) | 0.8 |
Fuel/Power Source | Diesel |
Fuel Tank (Litres) | 46 |
Runtime (Hours) @ 100% Load | 12.11 |
Noise Level @ 1m 75% load (dB) | 69 |
Noise Level @ 7m 75% load (dB) | 62 |
Hyundai Diesel Engine Model | HY390 |
Power Output (kw) | 14 |
Displacement (CC) | 1815 |
No. of Cylinders | 3 |
Displacement (Litres) | 1.815 |
Recommended Oil Type | SAE 15W40 |
Oil Capacity (Litres) | 3.5 |
Oil Filter Part No. | JX0810Y |
Aspiration | Natural |
Fuel Regulation/Governor System | Mechanical |
Fuel Consumption (100% Load) [Litres] | 4.5 |
Fuel Filter Part No. | CX0708 |
Cooling | Water |
Alternator Model | 164C |
Breakers | 3P+N C63A 100mA |
Alternator Type | Brushless |
Voltage Regulation | AVR |
Air Filter Part No. | K1317 |
Net Weight (kg) | 655 |
Gross Weight (kg) | 655 |
Dimensions L x W x H (mm) | 1630 x 760 x 1115 |
Battery System / Starting (V - Ah) | 2X12V - 30Ah |
ATS / MTS Compatible | Yes |
Control Panel | ComAp AMF9 |
Accessories | - |
Model EAN | 6090200020100 |
Product Type | Diesel Generator |
- Three-phase diesel generator: Produces up to 14kVA of power
- Powered by a 1500rpm engine: Extends the lifespan of the generator
- Fitted with an AVR alternator: Able to produce a clean energy output
- Silenced generator: Housed in a weather-proof canopy, producing only 65dB at 7m
- ATS compatible: Automatically transfers power to the generator in the event of a power cut
- Large fuel tank: For extended running time
