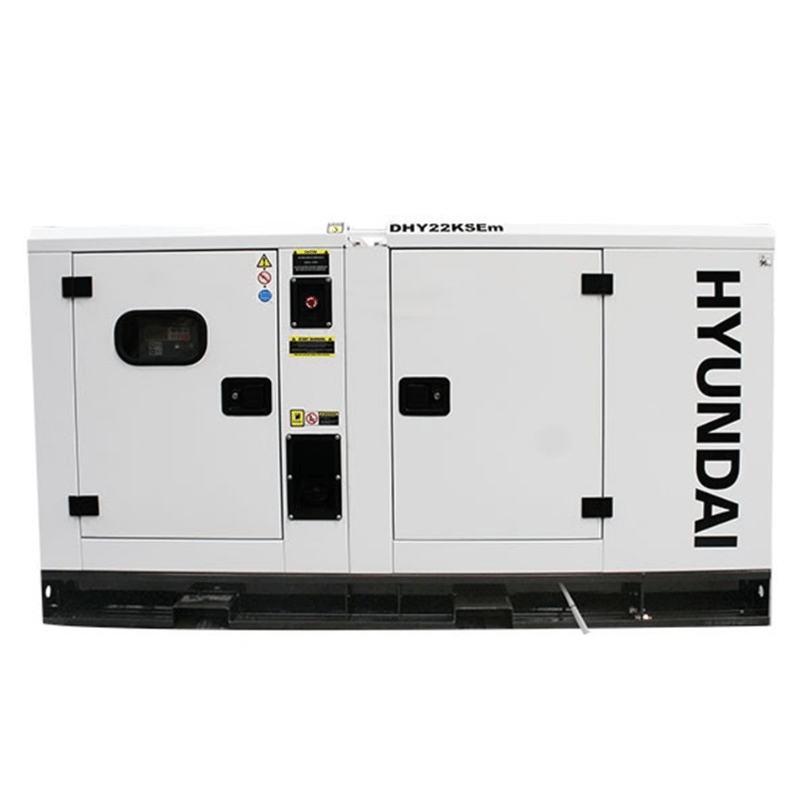

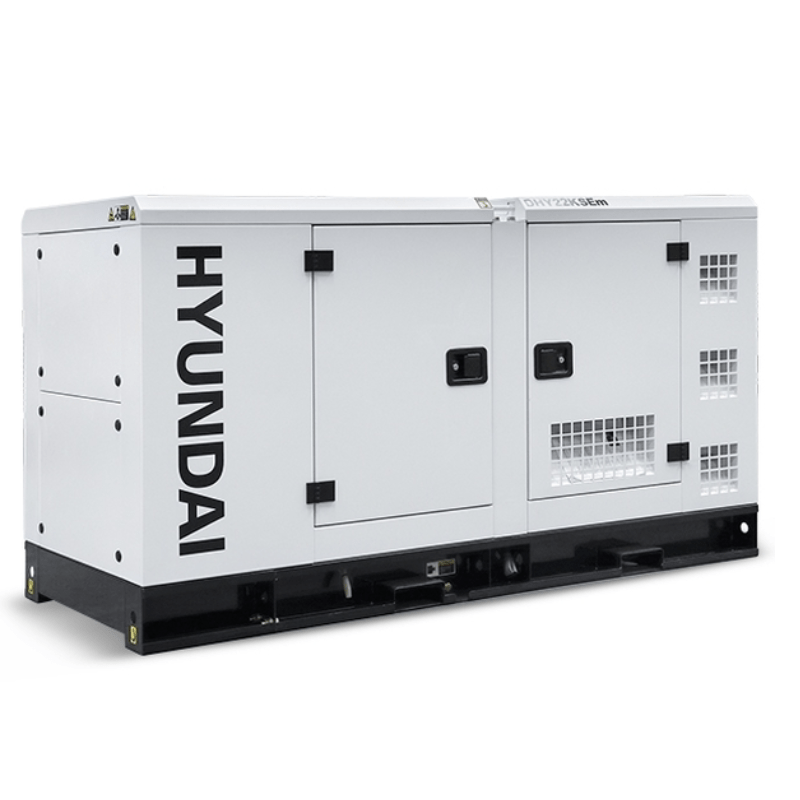

GO22KSEM Hyundai 27.5kVA Industrial Standby Generator
Features
Hyundai DHY22KSEM 27.5kVA Industrial Standby Generator
Overview
This diesel generator would be suitable for powering a large home or office, or a number of site cabins on a construction site, using it’s powerful 27.5kVA output with a single phase supply.
Running at 1500rpm it is a very low stressed generator and has a very long lifespan, as the rev rate of the engine is typically half that of a conventional diesel generator of this size.
All standard Hyundai 1500rpm diesel generators above 15kw are designed to be used as stationary generators for standby or prime power supply. The DHY22KSEM Diesel Generator is part of the Hyundai silenced range, where due to the weatherproof acoustic body, large exhaust and the the economical engine, the noise levels whilst running are kept to a minimum, making for a very quiet run considering the size and output.
All Hyundai 1500rpm diesel generator sound proof canopies undergo an anti-corrosion painting process called electrophoretic painting. This process ensures all areas of the canopy have an evenly applied thickness of paint, ensuring maximum corrosion protection.
As with other models in the Hyundai range, the brushless AVR alternator produces a smooth power output, has a digital control panel, offering accurate overload and engine protection and includes a large base-level fuel tank, which is easily filled up from the outer shell of the generator, and makes for an extended run due to it’s volume.
Specifications
Model | DHY22KSEm |
---|---|
Rated/Prime kVA* | 25 |
Rated/Prime kW | 20 |
Max/Standby kVA* | 27.5 |
Max/Standby kW | 22 |
Phase | Single |
Voltage | 230 |
Connection Method(s) | 2 x 230V/32A 1 x 230V/63A Busbar |
Rated Speed (RPM) | 1500 |
Frequency (Hz) | 50 |
Max/Continuous Current (Amps) | 95.7 / 87 |
Power Factor (Cosφ) | 1 |
Fuel/Power Source | Diesel |
Fuel Tank (Litres) | 93 |
Runtime (Hours) @ 100% Load | 10 |
Noise Level @ 1m 75% load (dB) | 72 |
Noise Level @ 7m 75% load (dB) | 67 |
Hyundai Diesel Engine Model | HY4102 |
Power Output (kw) | 33 |
Displacement (CC) | 3800 |
No. of Cylinders | 4 |
Displacement (Litres) | 3.8 |
Recommended Oil Type | SAE 15W40 |
Oil Capacity (Litres) | 7.5 |
Oil Filter Part No. | JX0814 |
Aspiration | Natural |
Fuel Regulation/Governor System | Mechanical |
Fuel Consumption (100% Load) [Litres] | 9.3 |
Fuel Filter Part No. | CX0708 |
Cooling | Water |
Alternator Model | 184F |
Breakers | 2P D100A 100mA |
Alternator Type | Brushless |
Voltage Regulation | AVR |
Air Filter Part No. | K1317 |
Net Weight (kg) | 990 |
Gross Weight (kg) | 990 |
Dimensions L x W x H (mm) | 2200 x 950 x 1250 |
Battery System / Starting (V - Ah) | 1 x 12/60 |
ATS / MTS Compatible | Yes |
Control Panel | ComAp AMF9 |
Accessories | - |
Model EAN | 700621496267 |
Product Type | Diesel Generator |
- Single-phase diesel generator: Produces up to 27.5kVA of backup power and 25KVA of prime power
- Powered by a 1500rpm engine: Extends the lifespan of the generator
- Fitted with an AVR alternator: Able to produce a clean energy output
- Silenced generator: Housed in a weather-proof canopy, producing only 66dB at 7m
- ATS compatible: Automatically transfers power to the generator in the event of a power cut
- Large fuel tank: For extended running times
