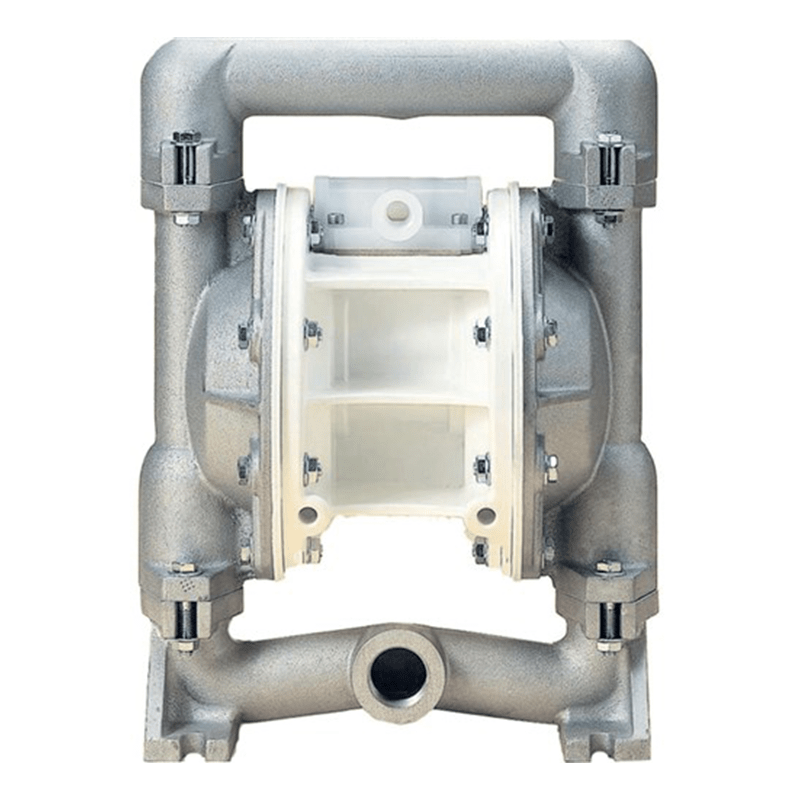

MACNAUGHT Air Operated DIaphragm Pump 1"

SKU: DDP25

MACNAUGHT Air Operated DIaphragm Pump 1"

$2,314.00 AUD
$2,314.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
MACNAUGHT Air Operated DIaphragm Pump 1

MACNAUGHT Air Operated DIaphragm Pump 1"

$2,314.00 AUD
$2,314.00 AUD
Save $0
Sold out

Details

Package Includes

  • DDP25 Air-Operated Double Diaphragm Pump 1" ported
  • Air Exhaust Muffler 1/2" NPT(M)
  • Instruction Manual

Repair Kits

  • L-V183BN-1: Diaphragm
  • L-V1.0 BN/A KIT: Wet End Kit
  • L-E1P AV KIT: Air End Kit
  • L-E1P PV KIT: Pilot Valve Kit
  • L-VTM-4: Muffler

Features

  • Up to 174 L/min flow rate - Measured with water at the pump outlet
  • Removable Air Valve - Easy swap-out for repairs without time costly dismantling / disconnecting
  • Polypropylene / Aluminium body - Wide range of chemical compatability for broader applications
  • Air-Operated pumps can be speed controlled - More control over a pump output
  • Removeable exhaust muffler included - Easy replacement or remote fitting to reduce noise output
  • Fast fluid transfer for low viscosity fluids - Inexpensive way to move large volumes of fluid
  • Easy self-priming - No damage to pump while running even with little or no fluid flow (for short periods)

    • Macnaught Air Operated DIaphragm Pump - 1"

    Overview

    The DDP25 offers an economical fluid transfer option where medium to high flow rates  needed with little back-pressure. The ability  dry-run allows easy priming while operating without any damage to the pump.

    A removable air valve offers repairs to be made while the pump is still fitted in place for quick simple maintenance. The Polypropylene / Aluminium body allows this pump to be used with a range of compatible chemicals as well as the new or used oils and engine coolants (RTU), diesel or oily water applications.

    Fully repairable and spare parts are readily available. Not suitable for flammable liquids.



    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • GO Data Sheet Macnaught Air Operated DIaphragm Pump - 1 DDP25

    Specifications

  • Maximum Air Pressure: 690kPa (100psi)
  • Inlet / Outlet Ports: 1"" BSP(F)
  • Air Inlet Size/Type: 1/2"" NPT(F)
  • Maximum Flow Rate: 174 L/min (viscosity dependant)
  • Suction Lift: 4.9m (dry) / 9.4m (wet)
  • Maximum Solids Handling: 3.2mm (0.125"")
  • Fluid temperature range: -23ºC - 88ºC
  • Maximum noise level: 93 dB(A)
  • Fluid Compatability: Oils (new & used), Engine Coolants RTU (new & used), oily water, diesel
  • Wetted Components: Aluminium/Polypropylene (body), Aluminium (valve seats), Buna N (diaphragms), Acetal (check valves)

      • Features

    • Up to 174 L/min flow rate - Measured with water at the pump outlet
    • Removable Air Valve - Easy swap-out for repairs without time costly dismantling / disconnecting
    • Polypropylene / Aluminium body - Wide range of chemical compatability for broader applications
    • Air-Operated pumps can be speed controlled - More control over a pump output
    • Removeable exhaust muffler included - Easy replacement or remote fitting to reduce noise output
    • Fast fluid transfer for low viscosity fluids - Inexpensive way to move large volumes of fluid
    • Easy self-priming - No damage to pump while running even with little or no fluid flow (for short periods)
