MACNAUGHT K7 - 67 Minilube Greasing System - GO Industrial - K7 - 67

MACNAUGHT K7-67 Minilube Greasing System

SKU K7-67
Afterpay Zip PayPal LeaseGO
$456.00
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

Macnaught MINILUBE® Greasing System

Overview

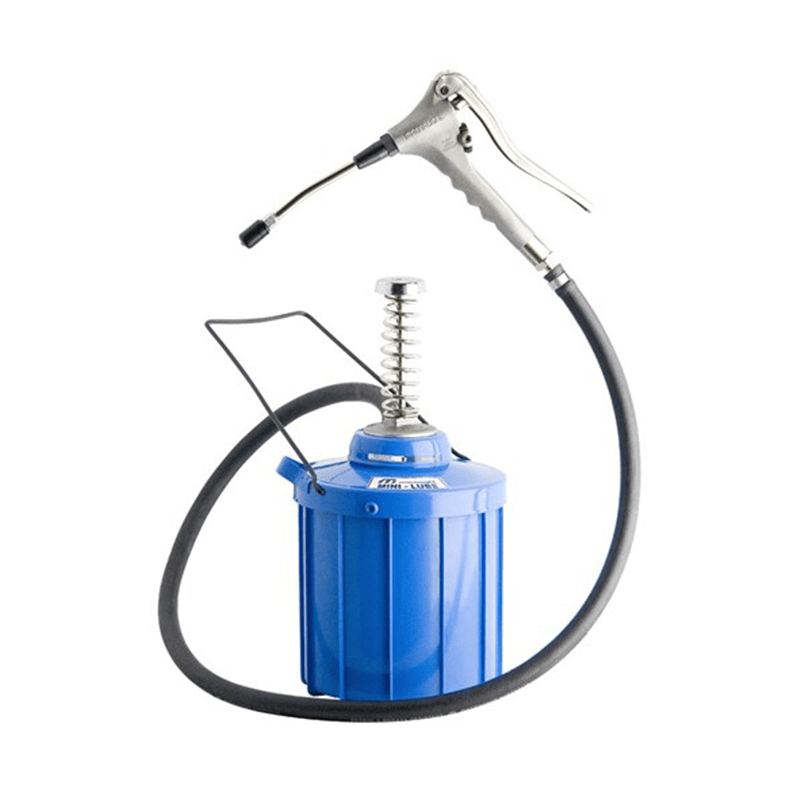

The K7-67 MINILUBE® (5kg model) is a portable High Pressure Manual Greasing System that provides high-volume/high-pressure greasing in a compact and portable package.

The K7-67 comes with a KT6 5kg reusable container and consists of two main components, a foot operated spring-loaded pump, that dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR pressurite™ gun.

When the gun is set on the high volume position the gun will deliver up to 5,000 psi and when set on the high pressure setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi).

The K7-67 is an economical alternative to the more expensive air-operated greasing systems.



Features

Features

  • Includes a KT6 5kg reusable container
  • Can be used as a backup for power operated systems - In case of a systems malfunction or breakdown eg. power failure.
  • Manual greasing system - Suitable for users who need a high-pressure greasing capability but don't have or can't use air-powered equipment.
  • Light weight and portable - Holds more grease than a conventional handgun so it can be easily transported to the application.
  • Up to 6 times the grease capacity of a cartridge - less down time changing grease cartridges
  • Self air bleeding system when first used - No air purging necessary when changing containers
  • Manually operated & light weight with carry handle - Portable go anywhere system.
  • 2 way KR patented Pressurite Gun - Two grease guns in one
  • High pressure / High volume switch - Can deliver up to 5,000psi on the high volume setting or 10,000psi on the high pressure setting
  • Pressurite gun offers high volume greasing up to 5,000psi - High volume greasing offers superior performance compared to hand held manual grease guns
  • Pressurite gun offers high pressure greasing up to 10,000psi - Air operated performance, clears blocked or damaged grease nipples
  • Fully sealed greasing system - Clean grease to the bearing every time
  • Handles most greases up to NLGI No.2 viscosity - Versatility of use
  • Easy push-down foot operated, spring loaded pump - Provides 30 shots at the gun, no pressure developed in container, allows one-handed operation
  • Rubber edged follower plate - Wipes container clean to use all of the grease in the container, prevents air pockets and contamination
  • KY Supergrip™ Coupler - Positive, no leak connection. Ensures grease gets to the bearing
  • Inbuilt grease strainer - Ensures clean grease to the bearing
  • Fully repairable - Provides a longer service life
  • 1.5m grease delivery hose - Easy to reach difficult applications, transfer only / Maximum 280psi
  • 360° swivel to gun - Prevents hose kinking / twisting. Easy one handed operation
  • Range of push-on / quick release greasing accessories available - Increased versatility / flexibility for dif- ferent applications
    • Specifications
  • High volume delivery pressure up to 34,450kPa (5,000psi)
  • High pressure delivery pressure up to 68,900kPa (10,000psi)
  • Provides up to 30 shots of grease with each prime
  • KY SUPERGRIP™ 3 jaw high pressure coupler
  • Up to 0.45g per shot (High pressure setting)
  • Up to 1.25g per shot (High volume setting)
  • Maximum viscosity - Up to NLGI 2
  • Includes a KT6 reusable 5kg grease container for contamination free greasing or bulk fill via a J3 Transfer Pump
  • Wetted parts - Aluminium, steel, nitrile rubber
  • 1.5m Flexible delivery hose
    • Manual
